5. Grasp the top of the system fan with your index finger and thumb and then lift the system fan out of
the server.

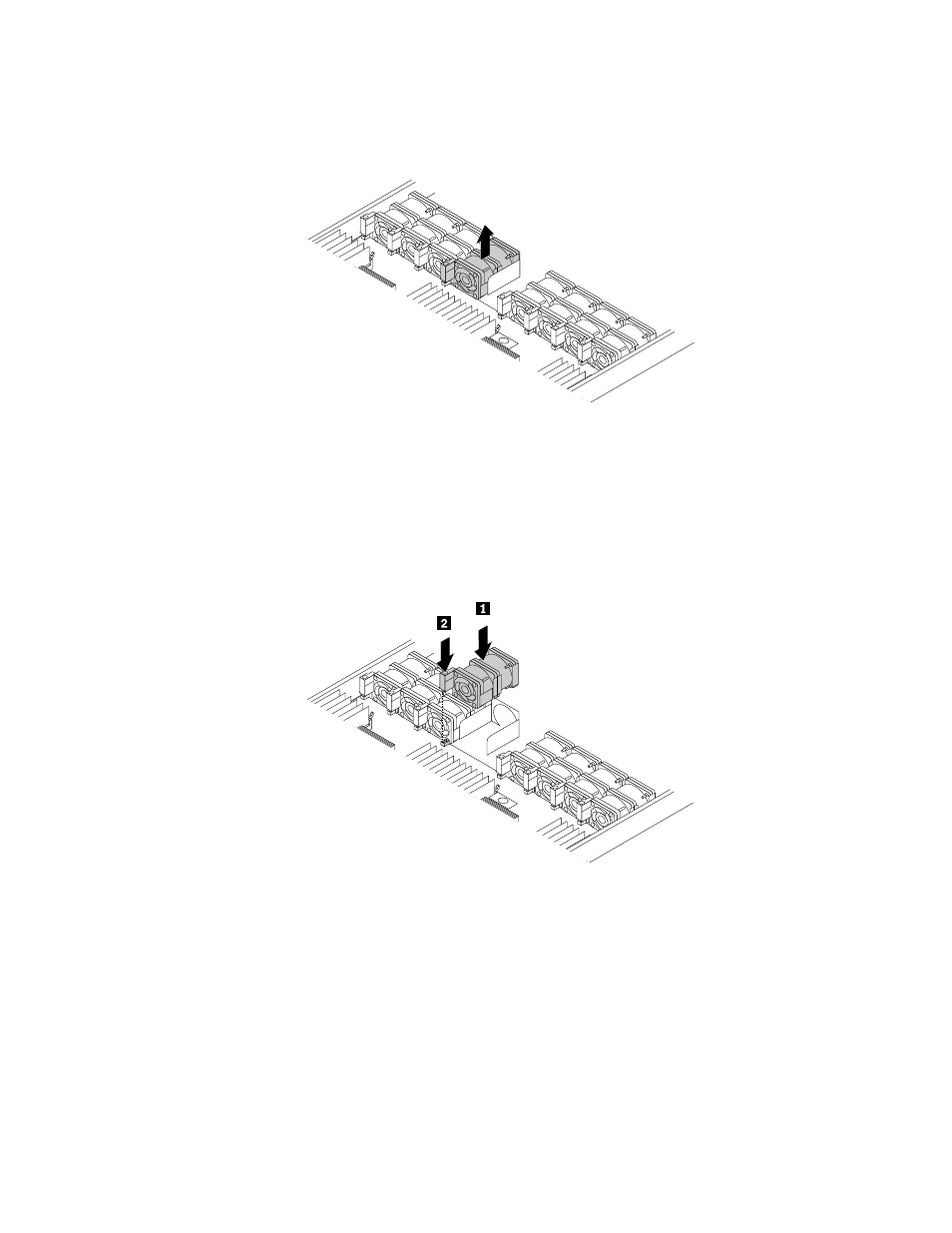

Figure 111. Removing the system fan
6. Touch the static-protective package that contains the new system fan to any unpainted surface on the
outside of the server. Then, remove the new system fan from the package.
7. Position the new system fan so that the system fan connector on the bottom of the new system fan is
aligned with the system fan connector on the system board. Then, press the new system fan straight
down until it is seated into place.
Figure 112. Installing the system fan
8. If you are instructed to return the old system fan, follow all packaging instructions and use any
packaging materials that are supplied to you for shipping.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the replacement, go to “Completing the parts replacement” on page 144.
Chapter 6 . Replacing hardware 133
