4.1.3 Input configuration

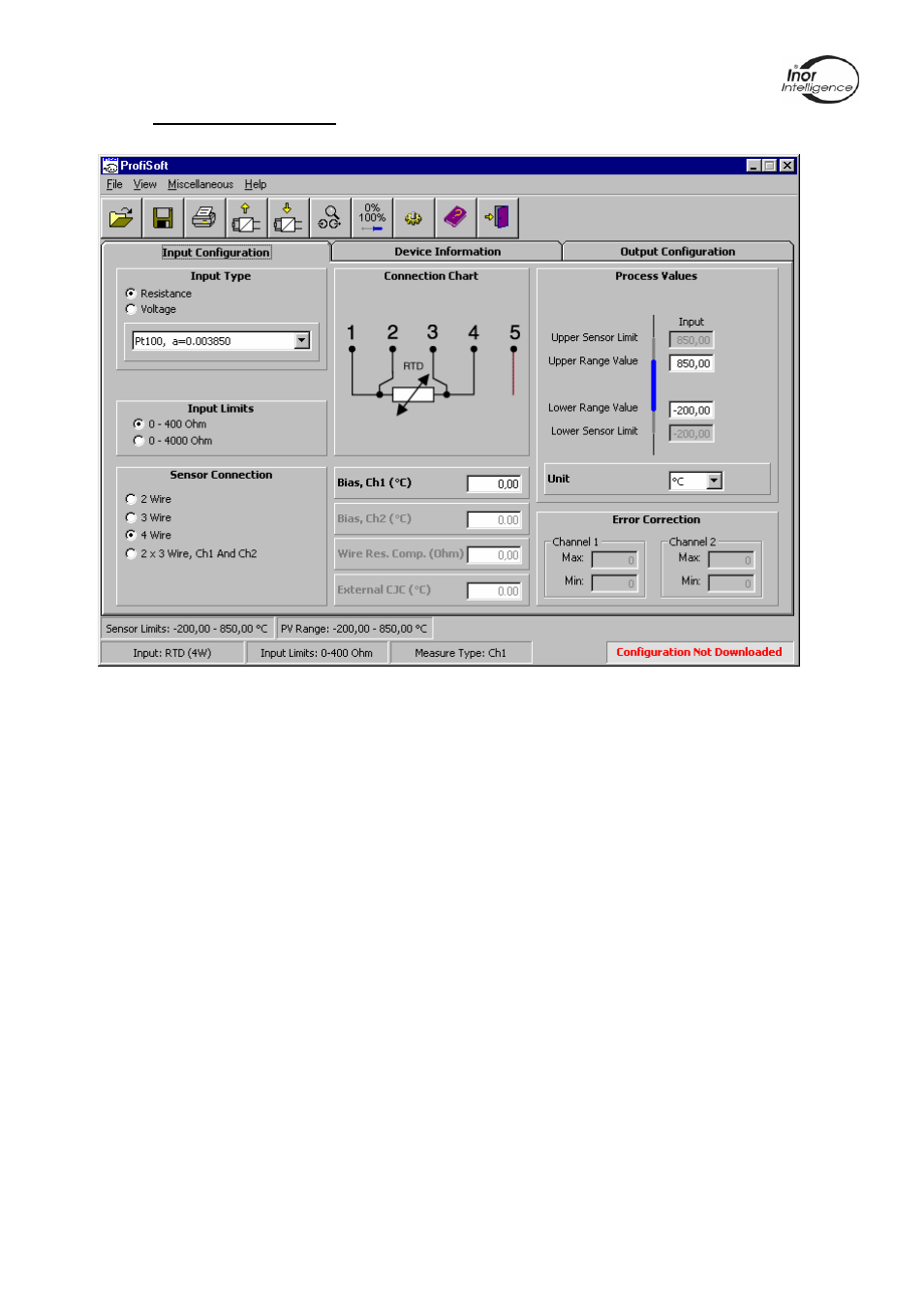

Figure 17 ProfiSoft Input Configuration.
Input Configuration :
Input type: Choose input type (PT100, PT1000, Ni100, Ni1000, ohm, mV, T/C ….).
Input Limits: Select between 0-400 or 0-4000 ohm for resistance input type, and –10 to 100
mV or –10 to 1000 mV for voltage input type.
Sensor Connection: Connection to the sensor, select for 2-, 3-, 4-, 2 x 3-wire connection.
Connection Chart: View the connection for the selected input type.
Bias: Value in temperature that can be algebraically added to process temperature.
Wire res. Comp: Resistance compensation for the wire (in Ohm) when 2 wire connection is
used. The resistance is the total wire resistance in the input loop
Ext. CJC: Fixed temperature value of an external reference junction.
Process Values: Set the Upper/Lower range value (max/min value for the process), and the
engineering unit.
Error Correction: View if the sensor is corrected (Sensor Error Correction or System Error
Correction). Se Error Correction for more information
