INOR LCD-H20 User Manual
Loop powered lcd indicator for in-head mounting
LCD-H20 indicator only
70LCDH2001
LCD-H20 in connection head DANAWdia
70LCDH2011
Configuration
70CAL00001
MEASURE OF SUCCESS
USER INSTRUCTIONS
www.inor.com, www.inor.se
The manual must be read prior to adjustment
and/or installation. All information subject to
change without notice.
86BL
C00001 2010-11
SWEDEN
GERMANY
USA
FINLAND
LCD-H20 is a digital indicator for installation directly in a
4-20 mA loop without need for external power.
It is designed for in-head mounting in a sensor connection head
with window.
The indicator is equipped with 12 mm LCD digits.
The scale is easily programmable, without reference signal, by 3
pushbuttons for any values between -1999 and 9999.
As an option, LCD-H20 can be delivered mounted in a connection
head.
GENERAL INFORMATION

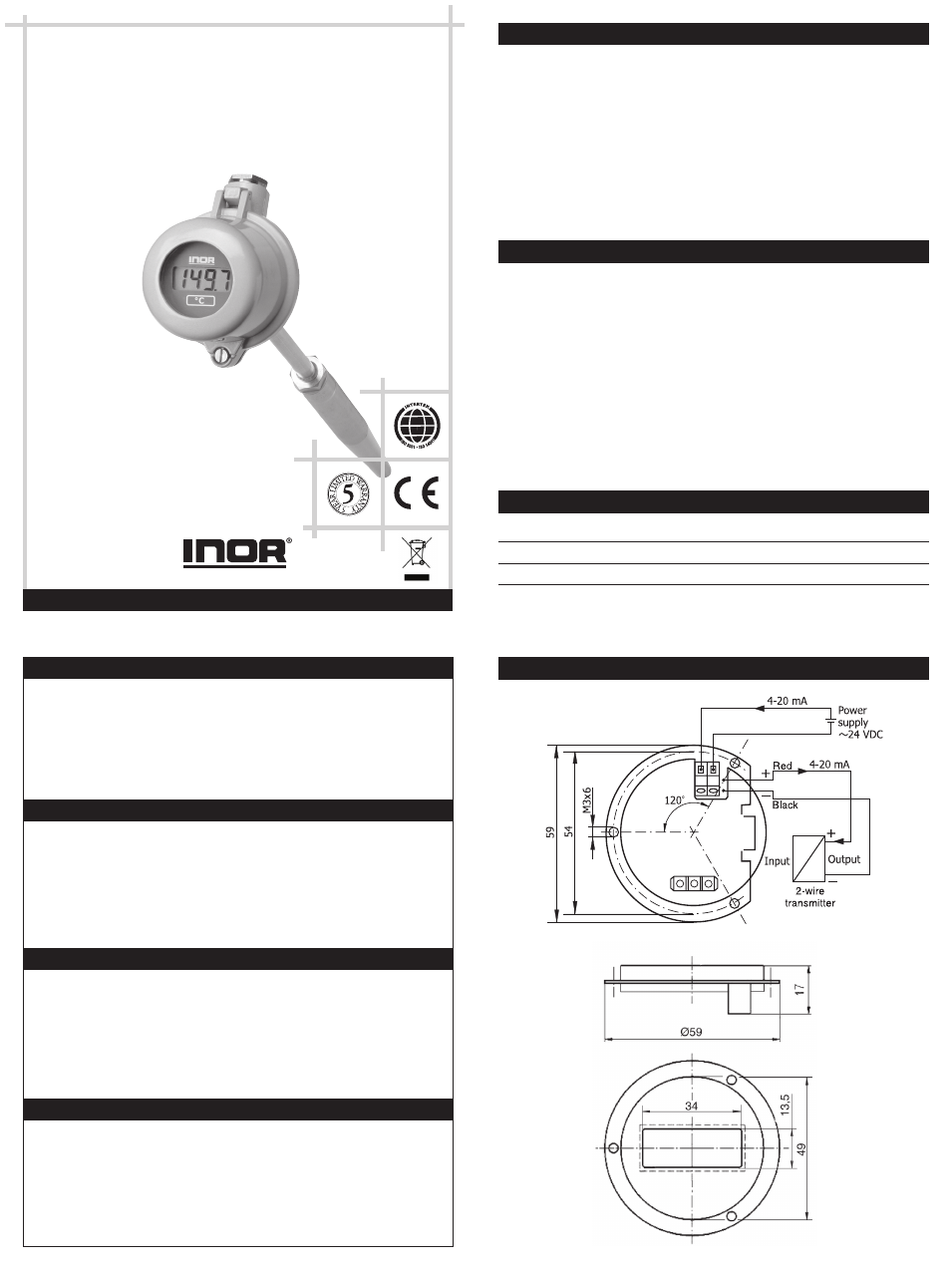

CONNECTIONS/DIMENSIONS INDICATOR
Loop Powered
LCD Indicator for
In-head Mounting
DATA (shortform)
Input Current
4-20 mA
Operating range
3.8-22 mA
Voltage drop
2.5 V
Display
4 digits including minus sign, height 12 mm
Indication range
Scalable -1999 to 9999, 0 to 3 decimals
Scale setting
3 pushbuttons
Operating
temperature
-20 to +70 °C (-4 to +158 °F)
Typical accuracy
±0.1 % of programmed span ±1 digit
Connection
Stranded, ≤ 0.1 mm
2
, AWG 16
Mounting
Connection head type DANAWdia
with mounting kit KDST1
ORDERING TABLE
This pr
oduct should not be mix
ed wi
th other kind of scr
ap
, after usage. It should be handled as an electr
onic/electric device.
