TDM Series Monitor
Page 44

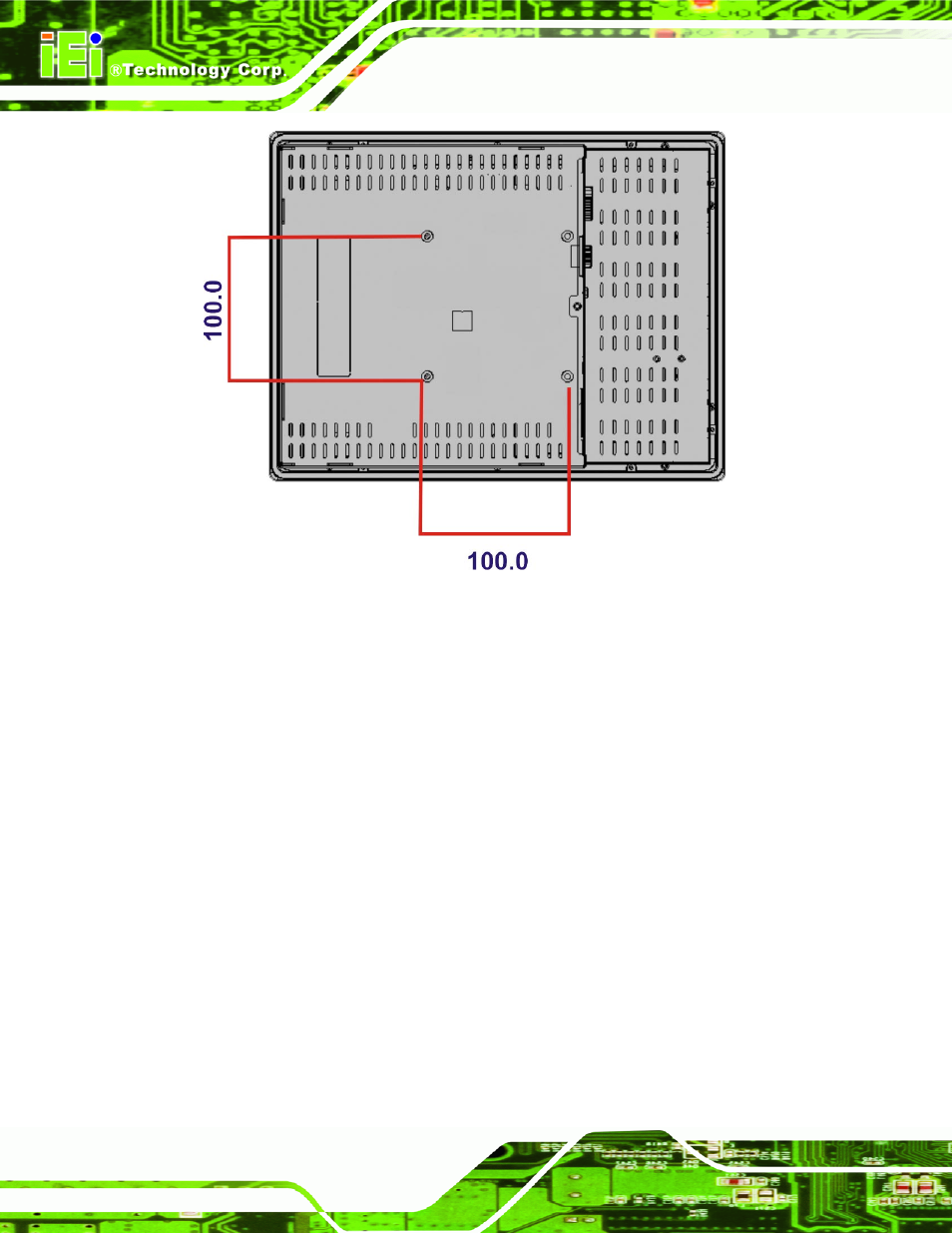

Figure 4-15: VESA Mounting Holes
The monitor stand mounting plate has a matching VESA hole pattern. To mount the TDM
series industrial monitor onto a stand, please follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor stand mounting plate.
Step 2: Secure the monitor to the stand with the supplied retention screws
(Figure 4-16).
