TDM Series Monitor
Page 7

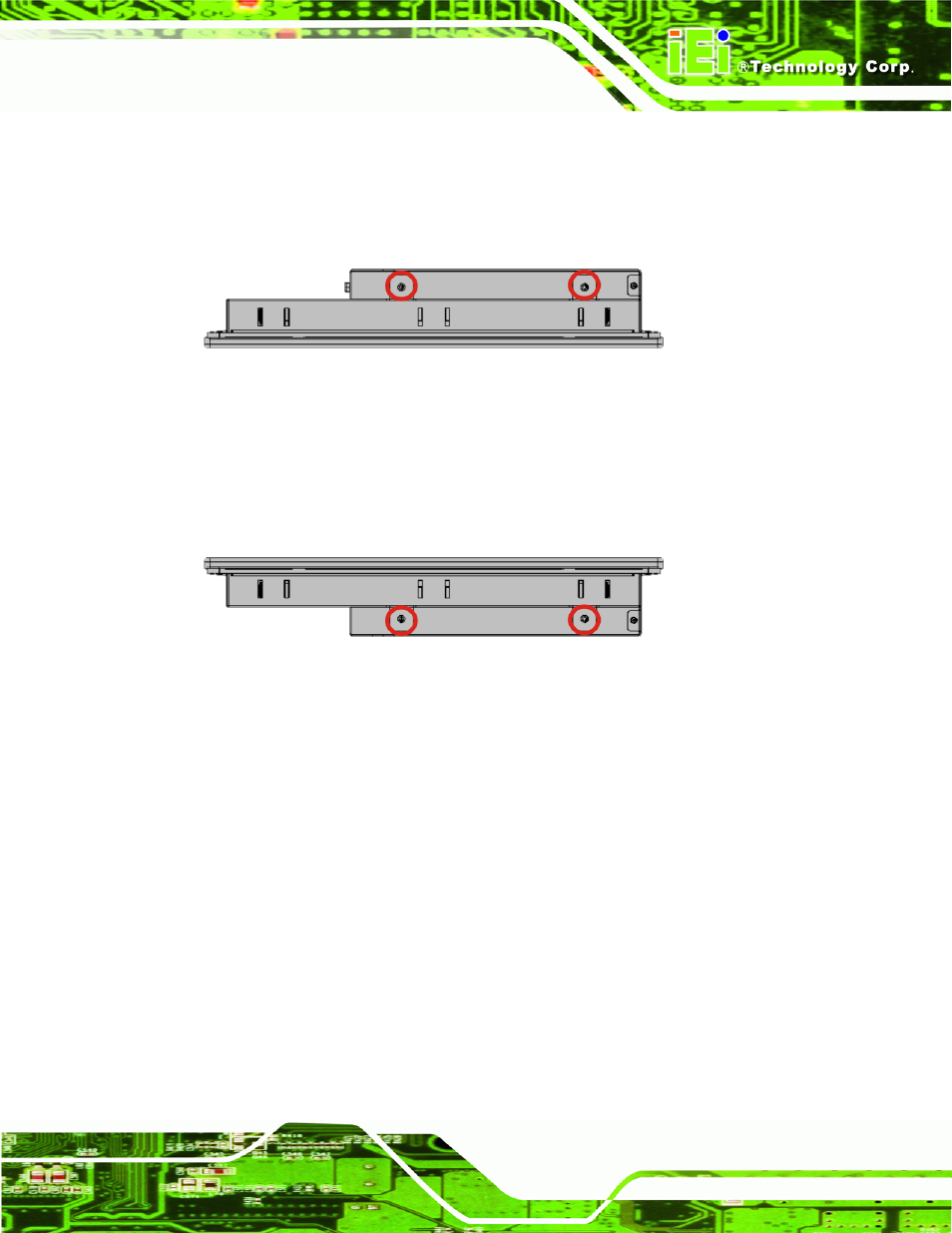

1.2.3 Top View
The top view provides access to retention screws that secure the back cover to the
chassis. The retention screw holes are circled in Figure 1-3 below.
Figure 1-3: Top View
1.2.4 Bottom View
The bottom view provides access to retention screws that secure the back cover to the
chassis. The retention screw holes are circled in Figure 1-4 below.
Figure 1-4: Bottom View
1.2.5 Side View
The rear panel shown in Figure 1-5 has the following interfaces. See Section 5.4.1 for the
connector locations.
ƒ 1 x RS-232 connector touch screen interface
ƒ 1 x USB connector touch screen interface
ƒ 1 x 9~36V DC terminal block
ƒ 1 x 12V DC input connector
ƒ 1 x VGA connector
ƒ 1 x DVI-D connector
