TDM Series Monitor
Page 33
4.4.6 RS-232 Touch Screen Connector
Use the rear panel standard RS-232 DB-9 female touch screen connector to connect the
monitor to the system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 N/A 6 NDSR
2 NRX 7 NRTS
3 NTX 8 N/A
4 NDTR 9 N/A
5 GND
Table 4-2: RS-232 Touch Screen Connector Pinouts

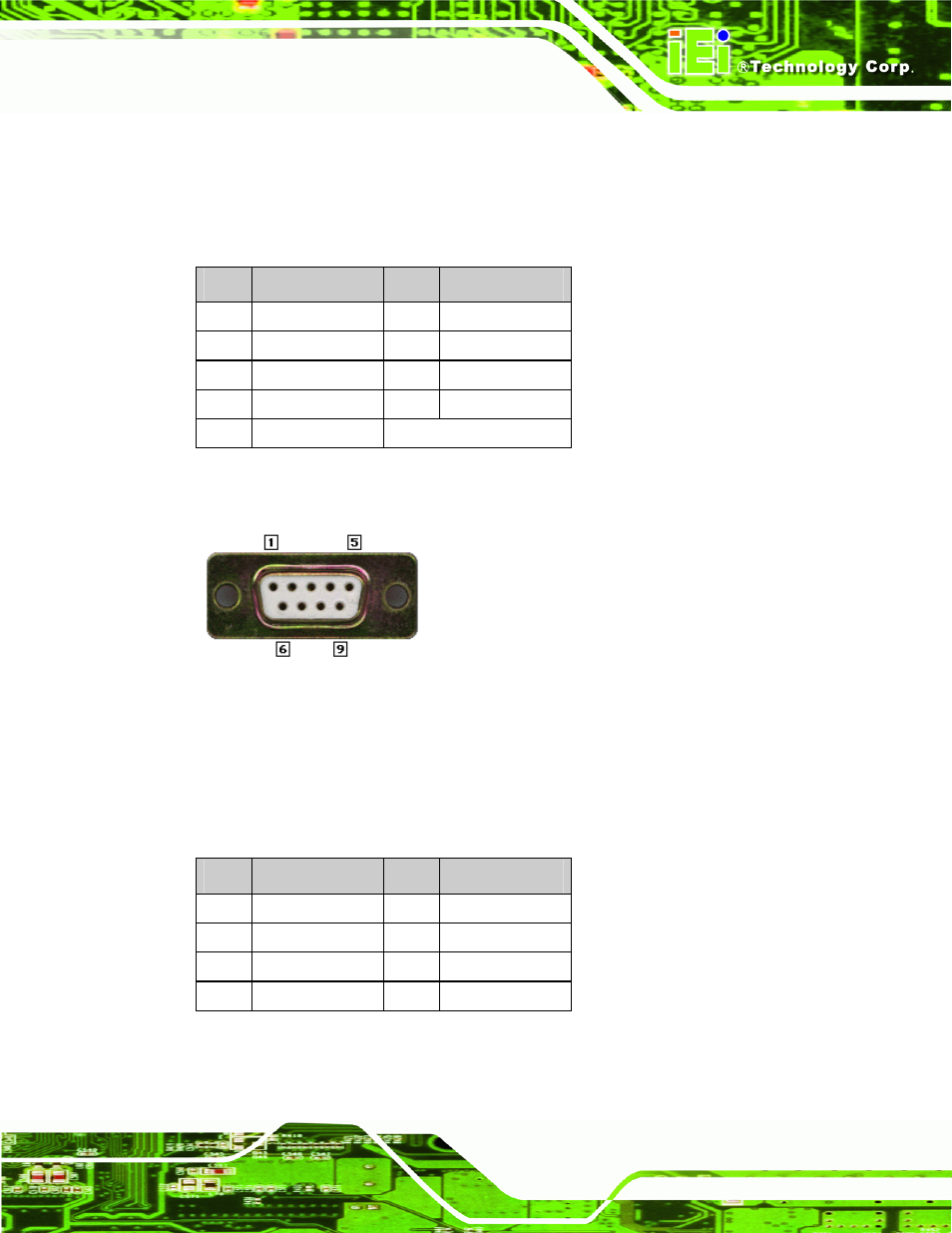

Figure 4-4: RS-232 Touch Screen Connector
4.4.7 USB Touch Panel Connector
Use the rear panel standard USB touch panel connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC
2 Data- 6 Data-
3 Data+ 7 Data+
4 GND 8 GND
Table 4-3: USB Touch Screen Connector Pinouts
