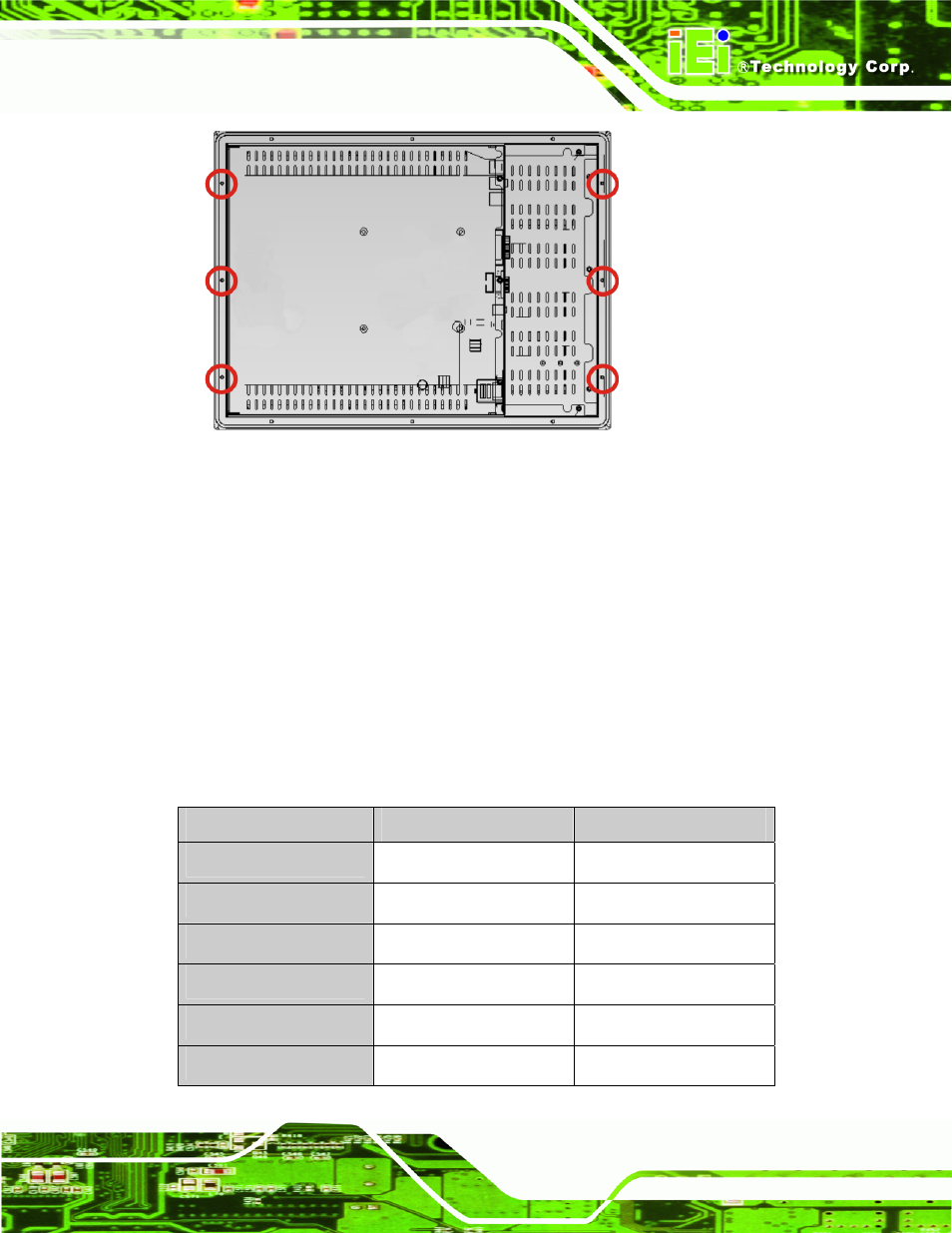

Figure 1-7: TDM-150GMS Frame Rear View (6 rack mount kit screw holes)
1.2.7 Internal View
The TDM series industrial monitor AD board provides a wide variety of control interfaces,
receiving and managing signals from a CPU card through cabling. Refer to Section 3.3 for
a complete description of the AV-6600 AD board and its connectors.
1.3 Series Specifications
Table 1-2 shows the TDM Series specifications.
Model TDM-121GMS TDM-150GMS
LCD Size 12.1” 15”
Input Interface Analog VGA+DVI-D Analog VGA+DVI-D
Resolution 1024 x 768 1024 x 768
Brightness 500 cd/m 2 350 cd/m 2
Contrast 700:1 700:1
Display Color 262,144 262,144
