Instruction Manual SVS2 Series
46

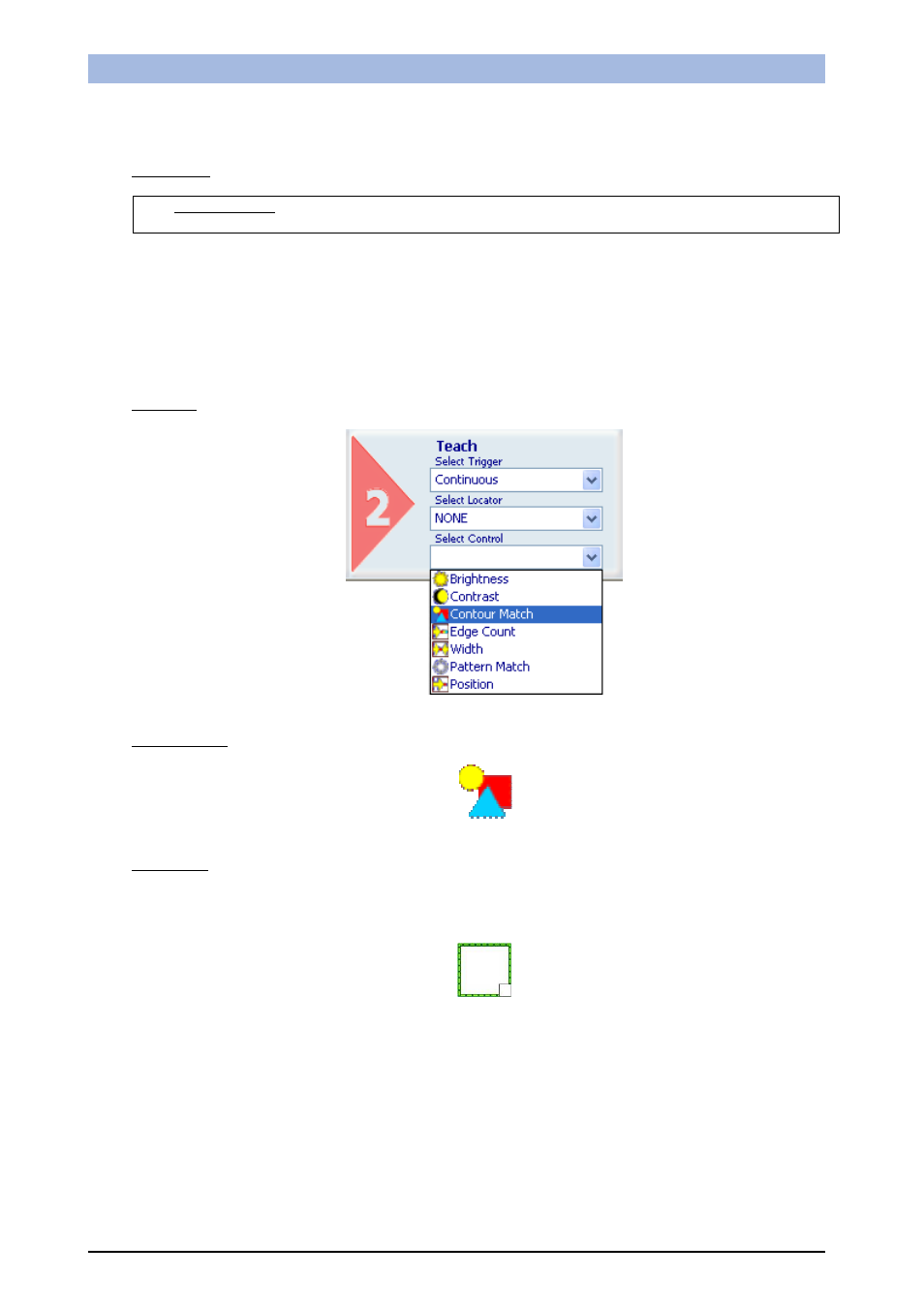

8.5.3. Contour Match
Description
The contour match operation consists in comparing the contour of a sample object with that of a
target object to determine their similarity. (Contour match ►)
After an initial setup stage designed to set the master contour on the reference image, it’s very
important that the ROI contains a closed shape entirely. Then, the system will search for this contour
through 360° in target images as they are acquired. A numeric value (score) is returned by the tool,
the more high the more the processed shape is similar to the reference one.
Inspection tolerance may be modified.
Selection
Pointer shape
Positioning
Click any point inside the work area to create a rectangular ROI with a small white square at the
bottom right corner.
To change ROI size, left-click and drag the square.
To move the ROI, place the pointer on any side of the ROI. The pointer changes to a cross. Press and
hold the left mouse button and drag the rectangle to the desired position.
