Instruction Manual SVS2 Series
42

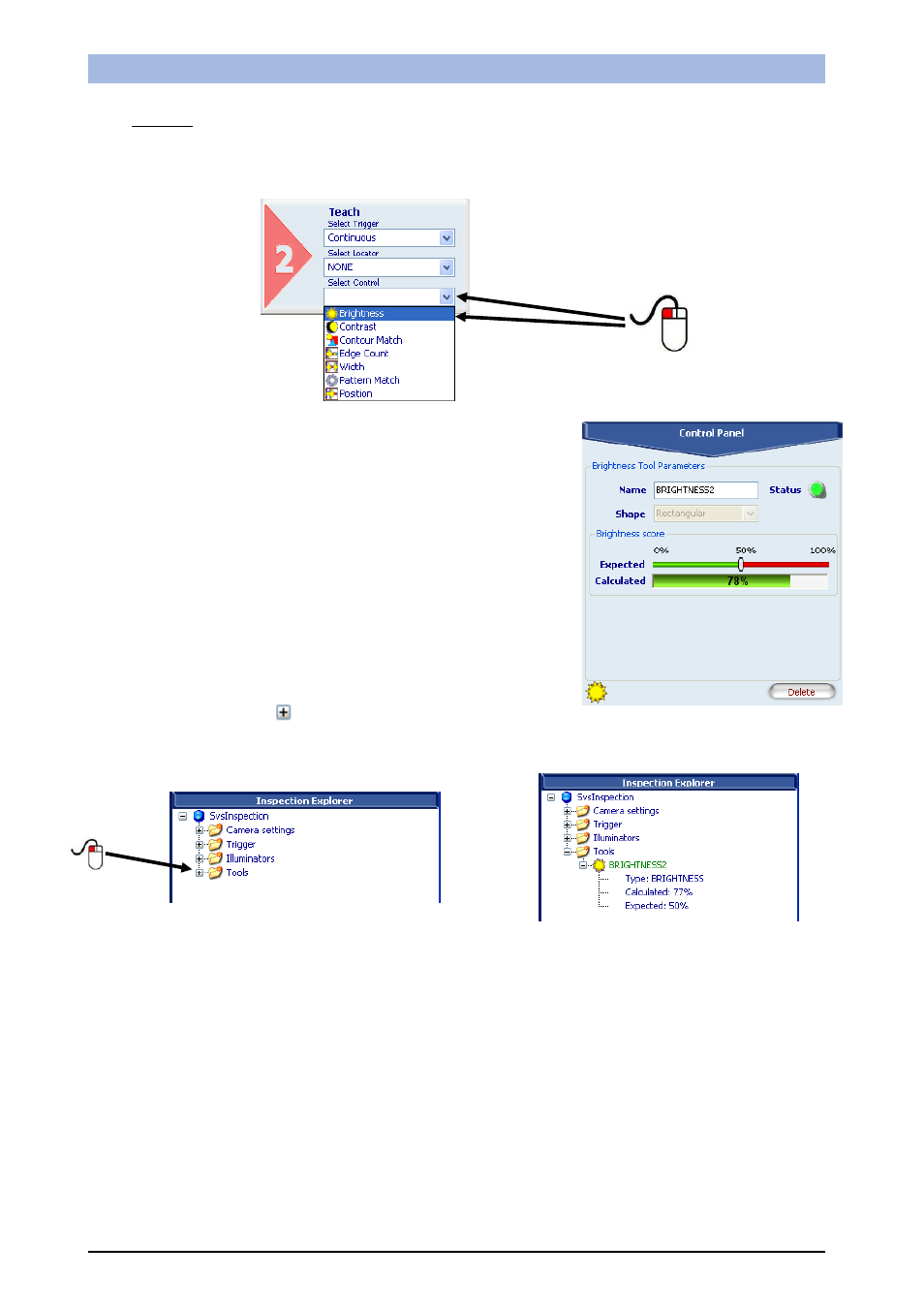

Example
Add "Brightness" control with rectangular ROI to current inspection.
Select "Brightness" from the pull-down menu:
Position the control on the reference image in the work area:
the pointer changes shape as soon as it enters the work area.
Left-click once at any position to create a default rectangular
ROI. At the same time, the control features and the result of its
application to the reference image appear in the control panel.
Set ROI size and position as required: in this example, ROI
shape is left unchanged. Set ROI position and size as
explained above.
The result indicated by STATUS is also highlighted by the ROI
border changing colour.
As soon as values change, result is calculated without delay.
The control thus added to current inspection is also displayed
in the Inspection Explorer: its name is listed under "Tools"
(name specified in the Name field). If you expand that menu
level (click symbol
next to the name), you will see the
parameters set previously.
