Instruction Manual SVS1 Series
63

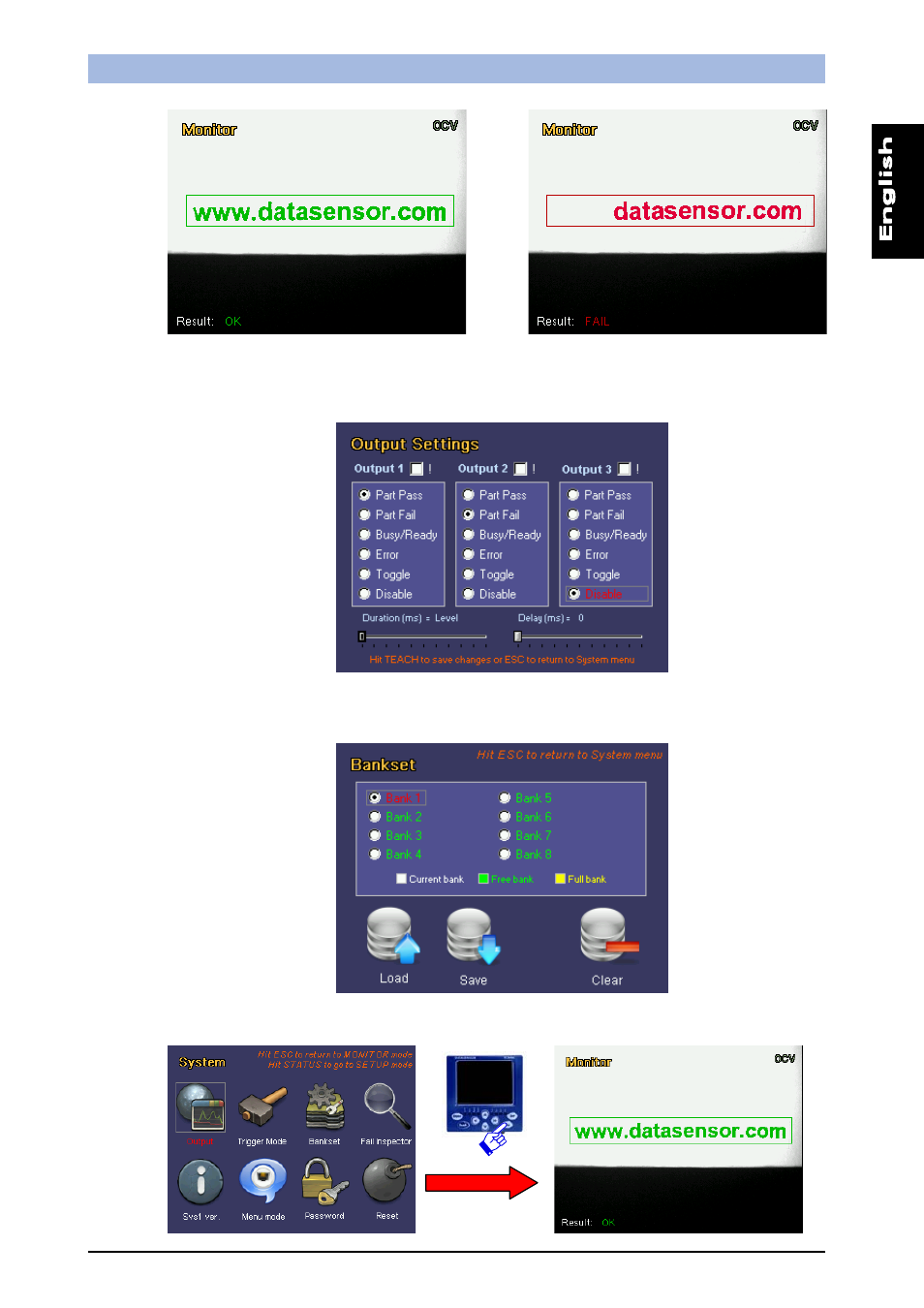

The sensor now behaves correctly. As the result is satisfying, press STATUS again and move on
to defining the behaviour of the outputs.
Let's associate output 1 to the Part Pass behaviour and
output 2 to the Part Fail behaviour. Press TEACH to save the modifications.
Now let's save the bank on the sensor. Enter the Bankset menu and save the inspection in
memory bank 1.
Press the ESC button to return to Monitor mode.
