Instruction Manual
SVS1 Series
30

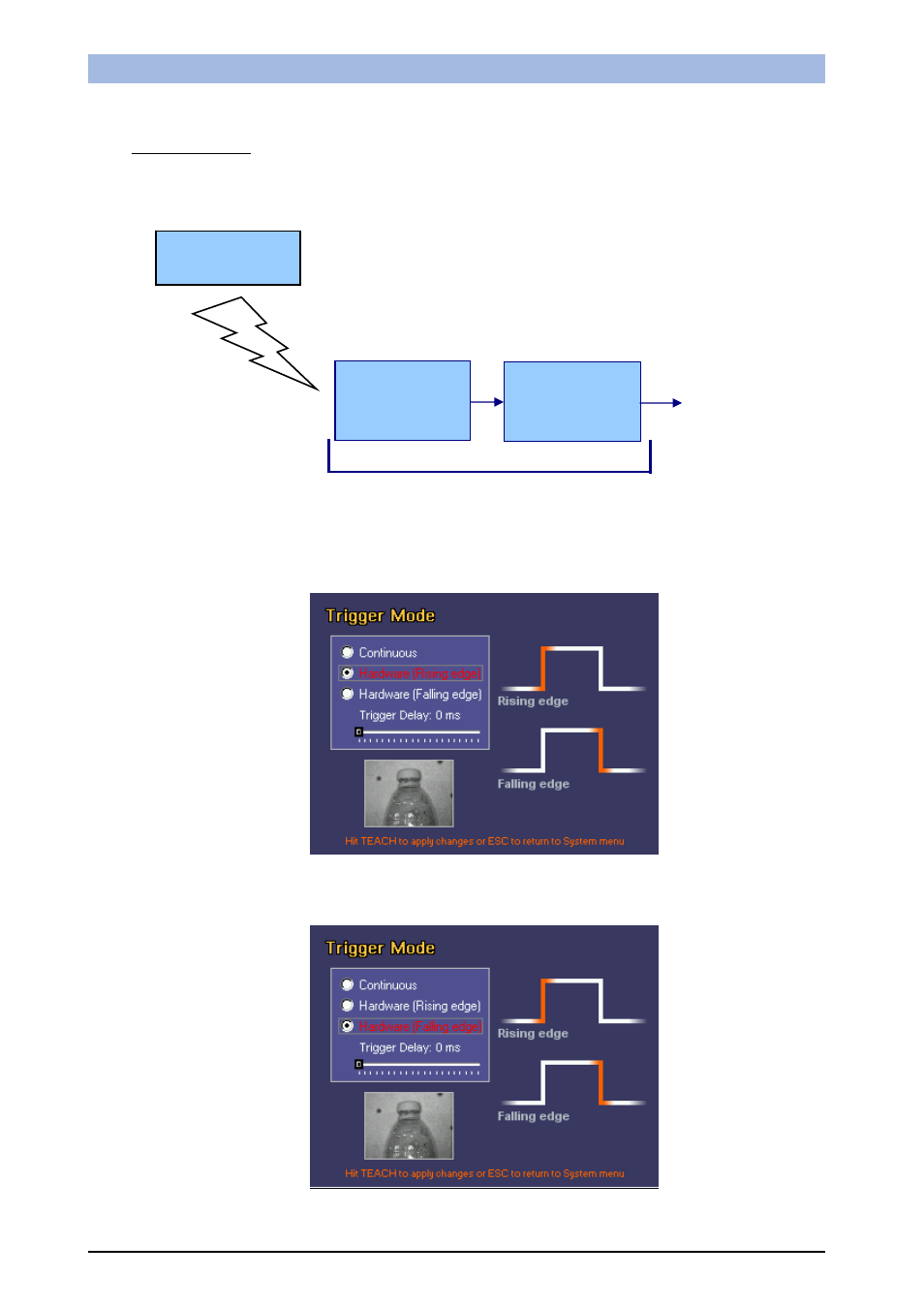

Trigger hardware
The image acquisition signal is sent by an external device (e.g. a photocell), the signal naturally has a
rising and falling edge.
If the "Rising Edge" is selected, the image acquisition signal follows the rising edge of the external
device.
If the "Falling Edge" is selected, the image acquisition signal follows the falling edge of the external
device.
acquisition
Control
-
Measurement
OK / FAIL
INSPECTION
Photocell
TRIGGER
