4.5.

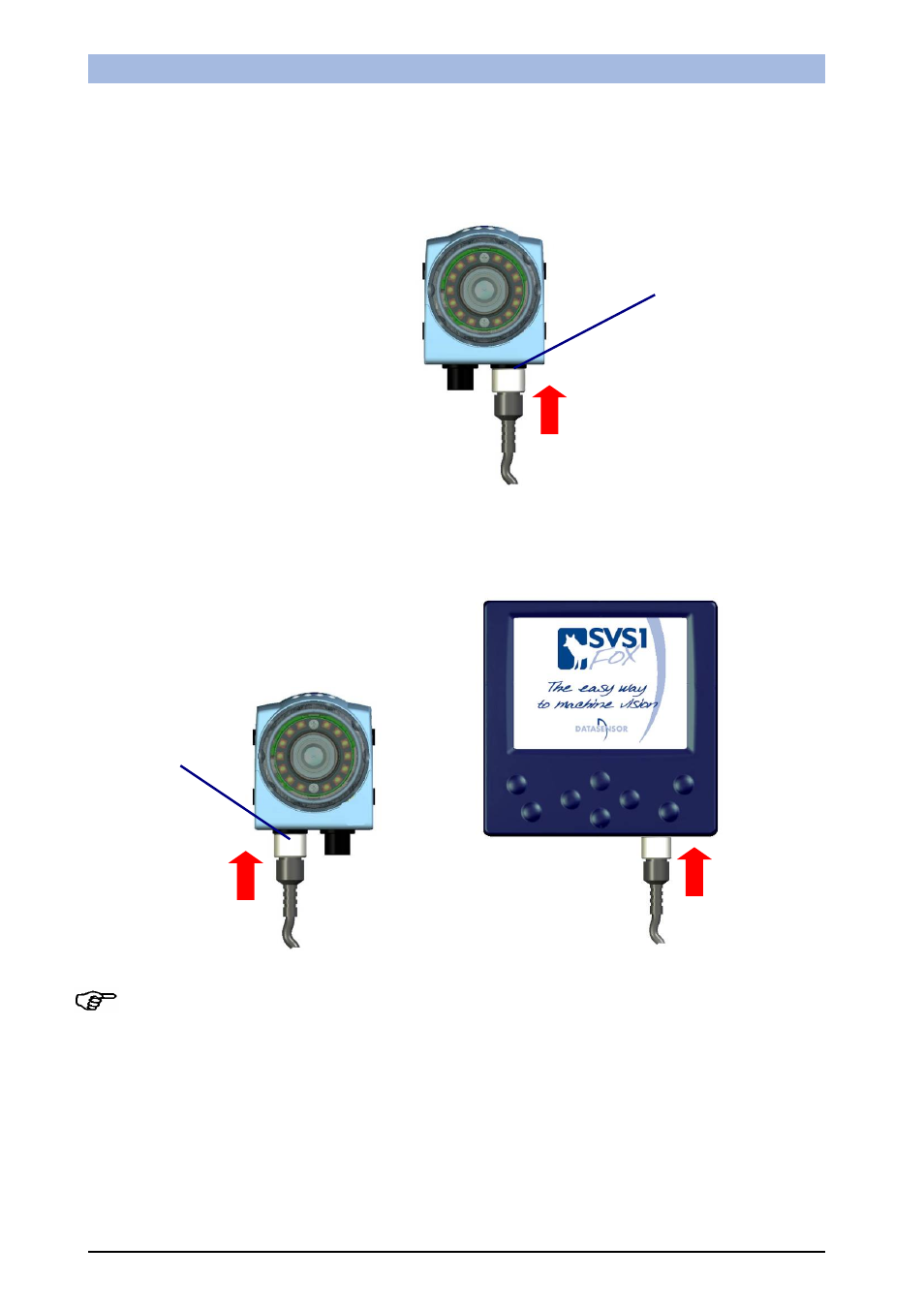

Hardware connections
Connect the power and I/O cable (CS-A1-06-B-xx) inserting it into the connector identified by the
(PWR-I/O) icon.
Connect SVS1 to the VSC using the relative connection cable (SVS-CV-VSC-xx).
Warning
•
Insert the cable into the correct connector following the key indications inside the body.
•
After inserting the cable, turn the ring nut counter clockwise to ensure connection is completed
•
Never force the cable inside the connectors.
•
Make sure that every cable is connected to the right connector
•
Before disconnecting the cable, turn the ring nut clockwise as far as possible
TO VSC
PWR-I/O
