Instruction Manual SVS1 Series
16

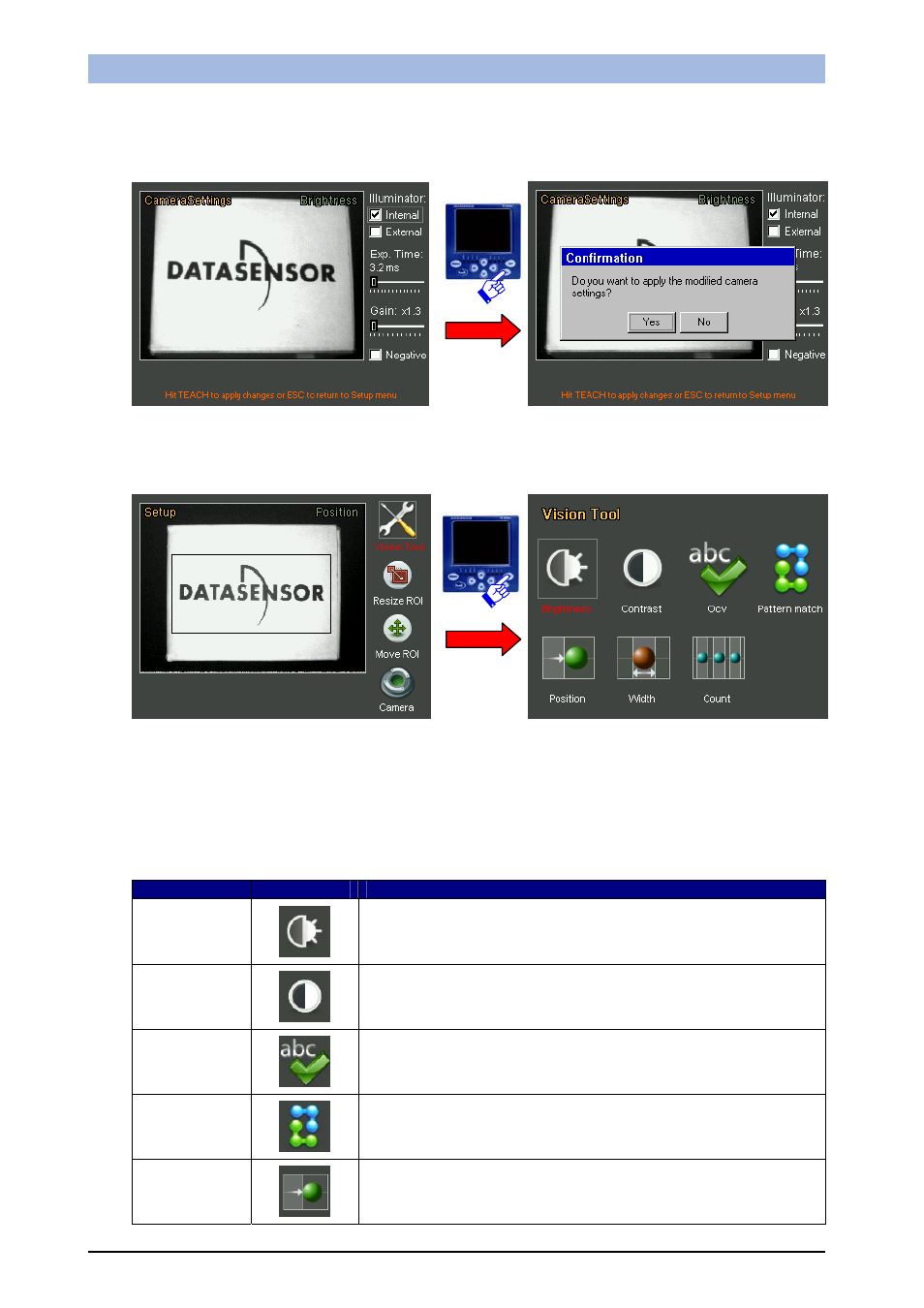

If you wish to exit the control panel without saving the modifications, simply press the ESC button.
The configurator will display a pop-up message asking the user if he wishes to save the settings.
Select NO using the ARROWS and press SET to exit without saving.
Once you have completed the camera settings, you can select the inspection tool. To select this
option, use the ARROWS on the VISION TOOL icon and press the SET button.
Use the ARROW buttons to scroll the menu options. Press the SET button to confirm the inspection
tool to be used.
The chart given below provides a brief summary of the controls that can be selected. Please refer to
Chapter 7 for further information and details on the inspection tools.
Tool Icon Function
Brightness Calculation of the average brightness value inside an area
Contrast Calculation of the maximum contrast value inside an area
OCV Font printing test
Pattern Match Search for a pattern inside an area
Position Control of the position of details
