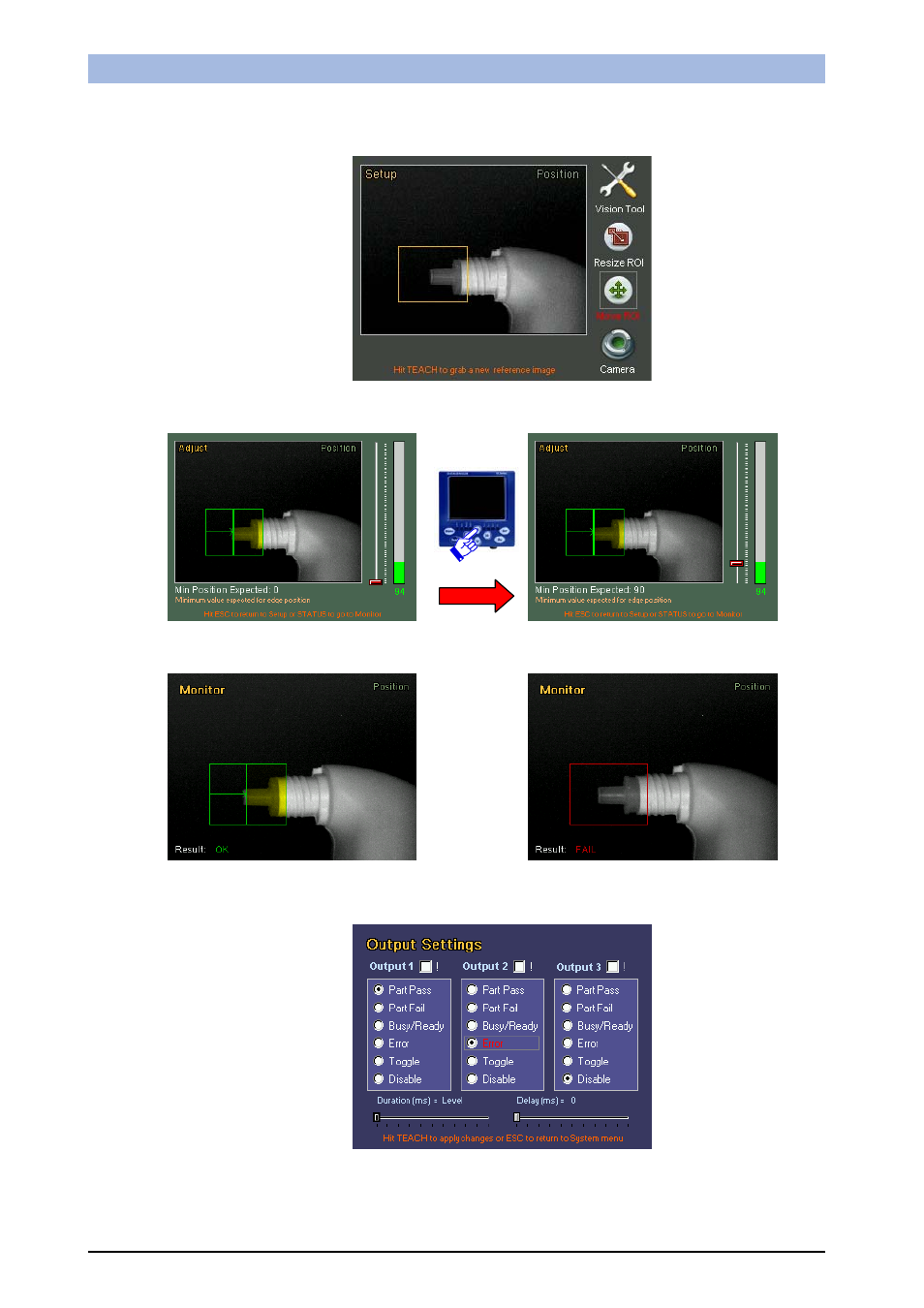

Now we must perform the ROI positioning and resizing procedures: follow the instructions
provided earlier during this procedure.
We can access the Adjust mode by pressing the STATUS button. Let's increase the minimum
position value slightly using the ARROW UP button.
Now press the STATUS button to enter Monitor Mode and check that the tool functions properly.
The sensor now behaves as required. As the result is satisfying, press STATUS again and move
on to defining the behaviour of the outputs.
Let's associate output 1 to the Part Pass behaviour and output 2 to the Error behaviour. Press
TEACH to save the modifications.
