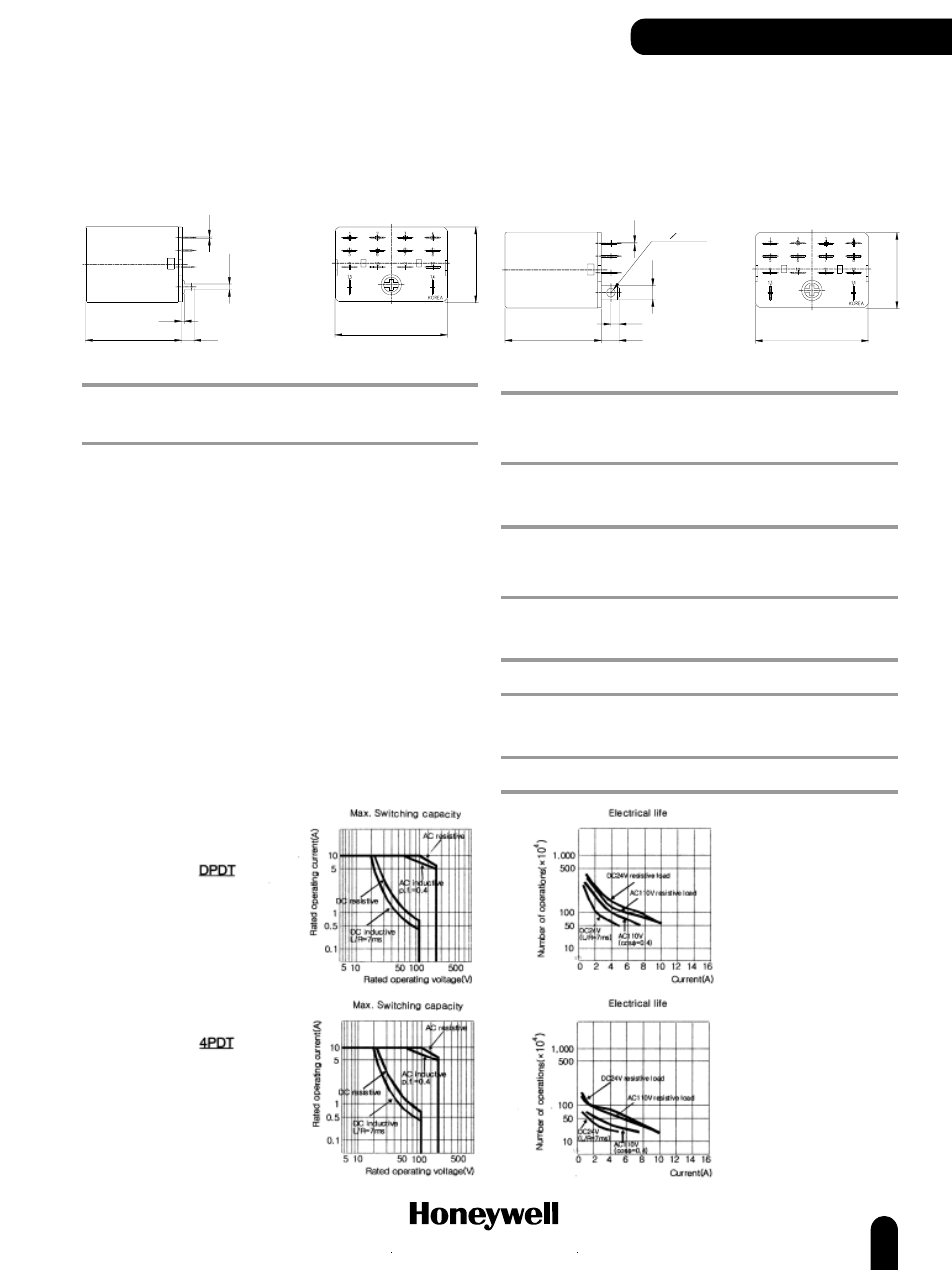

POWER RELAYS
Solder/Plug-In Terminal, 4PDT
14 - O 3.0 Holes
Max. 36,0 [1.42]
6,4 [0.25]
3,0
[0.12]
5,0 [0.
2
0]
0,5
[0.02
]
Max. 41,5 [1.63]
M
ax. 28
,0
[1.1
0]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY4-1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY4-1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY4-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-N1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY4-N1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY4-N1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY4-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/2 amp SZR-LY4-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/2 amp SZR-LY4-X1-DC24V
LY4 Series
OPTIONS
Standard, PCB Terminal, 4PDT
Max. 36,0 [1.42]
1,0
[0.04]
4,5
[0.18]
2,
0
[0
.0
8]
0,
5
[0
.0
2]
Max. 41,5 [1.63]
M
ax
. 2
8,0
[1
.1
0
]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-1P-AC110-120V
220/240 Vac 250 Vac/10 amp SZR-LY4-1P-AC220V-240V
24 Vdc 125 Vdc/2 amp SZR-LY4-1P-DC24V
