18
www.honeywell.com/sensing
OPTIONS
Top pin plunger
25,4
(OP)
CONTACT REFERENCE
Silver SL1-H
Gold clad cross point SL1-HK
Top roller plunger, parallel
31,4
(OP)
CONTACT REFERENCE
Silver SL1-A
Gold clad cross point SL1-AK

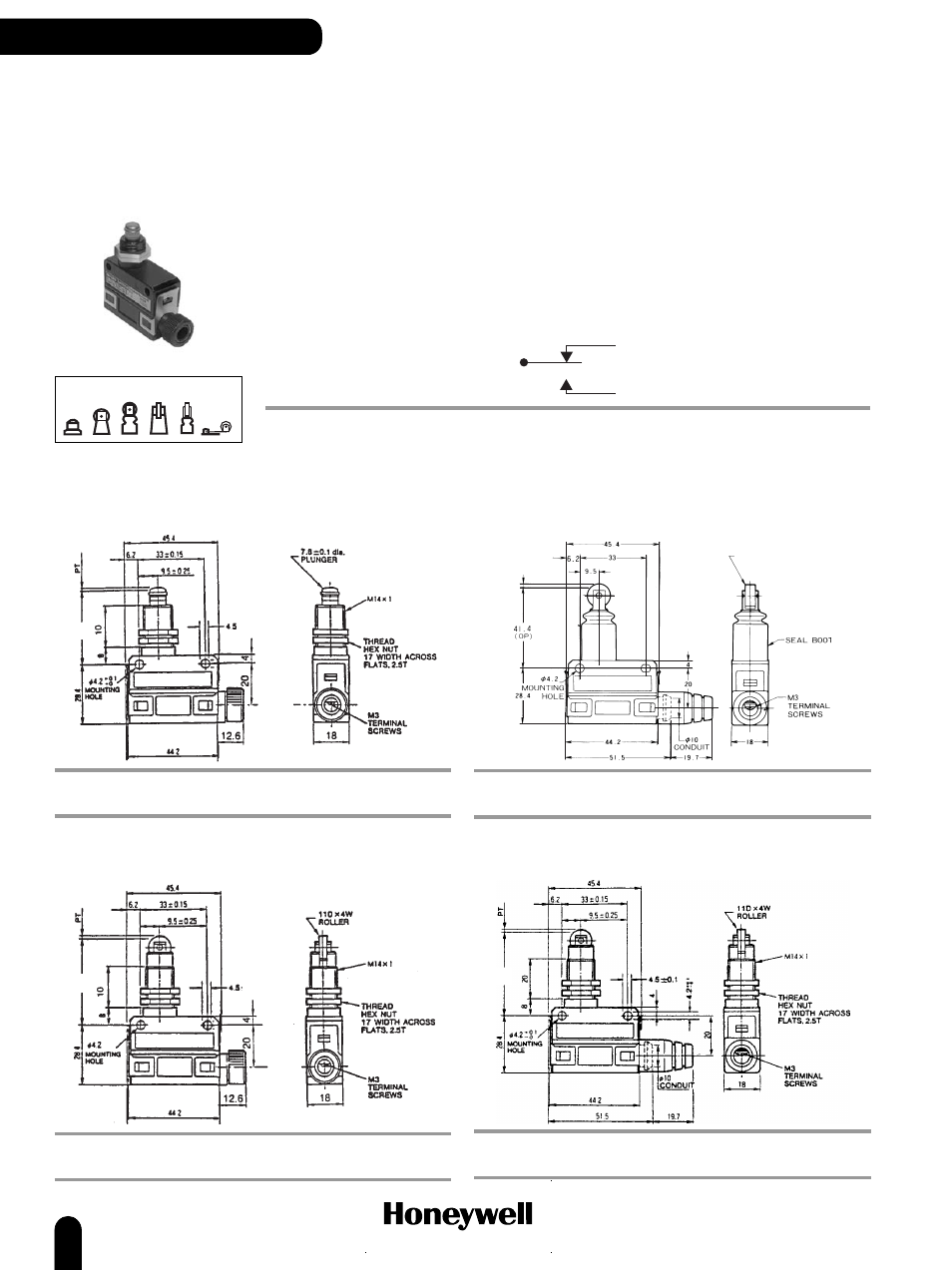

SL1 Series
Compact Limit
Switches The SL1 Series compact limit switches are sealed, sensitive and have a long life. The compact size makes them suitable
for the total miniaturization of machinery or equipment.
Mechanical life: 10 million
Sealing: IP 67, NEMA 3, 4, 13
Operating temperature: -10 °C to 70 °C (14 °F to 160 °F)
Approvals: UL, CSA, CE
Termination: Cable gland
Operating force max. (OF): 11,76 N (2.64 lb)
Pretravel max. (PT): 1,5 mm (0.060 in)
Overtravel min. (OT): 3,0 mm (0.118 in)
Differential travel max. (DT): 0,10 mm (0.004 in)
Electrical rating/contact: SL1-* 5A - 125, 250 Vac Silver
SL1-* K 0.1 A - 125 Vac; 0.1 A - 30 Vdc Gold clad cross point
Switching options:
SPDT
Single Pole, Double Throw,
Snap action contacts (1NC/1NO)
Top roller plunger, parallel, boot seal
11 D X 4W ROLLER
PT
CONTACT REFERENCE
Silver SL1-B
Gold clad cross point SL1-BK
Top roller plunger, long, parallel
41,4
(OP)
CONTACT REFERENCE
Silver SL1-E
Gold clad cross point SL1-EK
COMPACT LIMIT SWITCHES
Actuators
