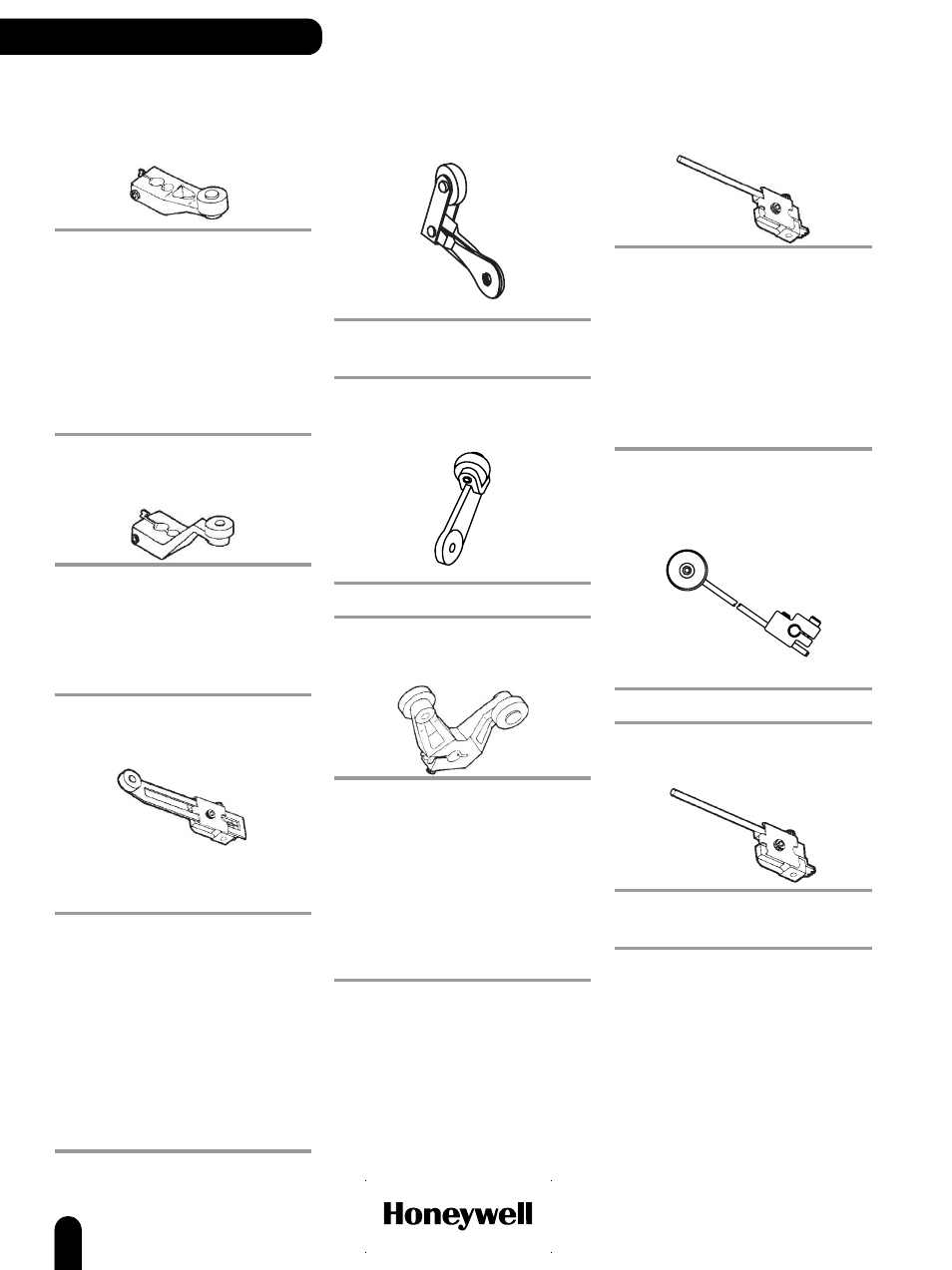

OPTIONS
Standard fixed lever
MOUNTED ON REFERENCE
Without roller LSZ51*
Nylon roller Front LSZ51A*
Metal roller Front LSZ51B
Nylon roller Back LSZ51C*
Metal roller Back LSZ51D
Nylon roller Front GLZ51A
Metal roller Front GLZ51B
Bronze roller Front 6PA5-EX*
Nylon roller Front 6PA127-EX*
Ball bearing roller Front 6PA144
Offset fixed lever
MOUNTED ON REFERENCE
Without roller LSZ55*
Nylon roller Back LSZ55A*
Metal roller Back LSZ55B
Nylon roller Front LSZ55C*
Metal roller Front LSZ55D
Metal roller Front GLZ55B
Adjustable lever
Operating radius/length: 1.5 in to 3.5 in
(38,1 mm to 88,9 mm)
-EX 1.69 in to 3.0 in
(42,9 mm to 76,2 mm)
MOUNTED ON REFERENCE
Adjustable lever, without roller LSZ52
Nylon roller Back LSZ52A*
Metal roller Back LSZ52B
Nylon roller Front LSZ52C*
Metal roller Front LSZ52D
Nylon roller,
Ø 1.0 in (25,4) x 0.5 in (12,7 mm) Front
LSZ52J*
Nylon roller, Ø 1.5 in (38,1) Front LSZ52K*
Nylon roller, Ø 2.0 in (50,8) Front LSZ52M*
Nylon roller, 0.5 in wide (12,7 mm) Front LSZ52N*
Nylon roller Back GLZ52A
Metal roller Back GLZ52B
Nylon roller,
Ø 1.0 in (25,4) x 0.5 in (12,7 mm) Front
6PA138-EX*
One way roller lever
RADIUS/LENGTH REFERENCE
Bronze roller, clockwise 1.56 in (39,6 mm) 6PA130-EX*
Bronze roller, counter clockwise 1.56 in (39,6 mm) 6PA142-EX*
Perpendicular (cross) roller lever
RADIUS/LENGTH REFERENCE
Bronze roller 1.81 in (46,0 mm) 6PA131-EX*
Yoke lever
MOUNTED ON REFERENCE
Nylon roller Front/Back LSZ53A
Metal roller Front/Back LSZ53B
Metal roller Front/Front LSZ53D
Nylon roller Back/Front LSZ53E*
Metal roller Back/Back LSZ53P
Nylon roller Back/Back LSZ53S*
Metal roller Back/Front LSZ53U
Metal roller Front/Back 6PA80
Metal roller Front/Front 6PA82
Nylon roller Front/Front 6PA102
Adjustable rod
RADIUS/LENGTH REFERENCE
Hub only LSZ54*
Aluminium rod 5.5 in (139,7 mm) LSZ54M*
Stainless steel rod 13.0 in (330,2 mm) LSZ54N
Aluminium, spring only 12.0 in (305 mm) LSZ54R
Aluminium, flexible cable 4.8 in (122 mm) LSZ54V
Aluminium rod 7.9 in (200 mm) GLZ54J
Stainless steel rod 13.0 in (330,2 mm) 6PA63
Aluminium rod 5.3 in (134,1 mm) 6PA136-EX*
Adjustable rod, nylon roller
RADIUS/LENGTH REFERENCE
Aluminium rod, nylon roler 12.5 in (317,5 mm) 6PA204-EX*
Spring rod
RADIUS/LENGTH REFERENCE
Ø 0.25 in (6,35 mm) 12.0 in (305 mm) LSZ68
Ø 0.17 in (4,32 mm) 7.4 in (188 mm) 6PA69
LEVERS
Note: Not all levers are compatible with all switches
* denotes lever suitable for Explosion Proof Series switches
