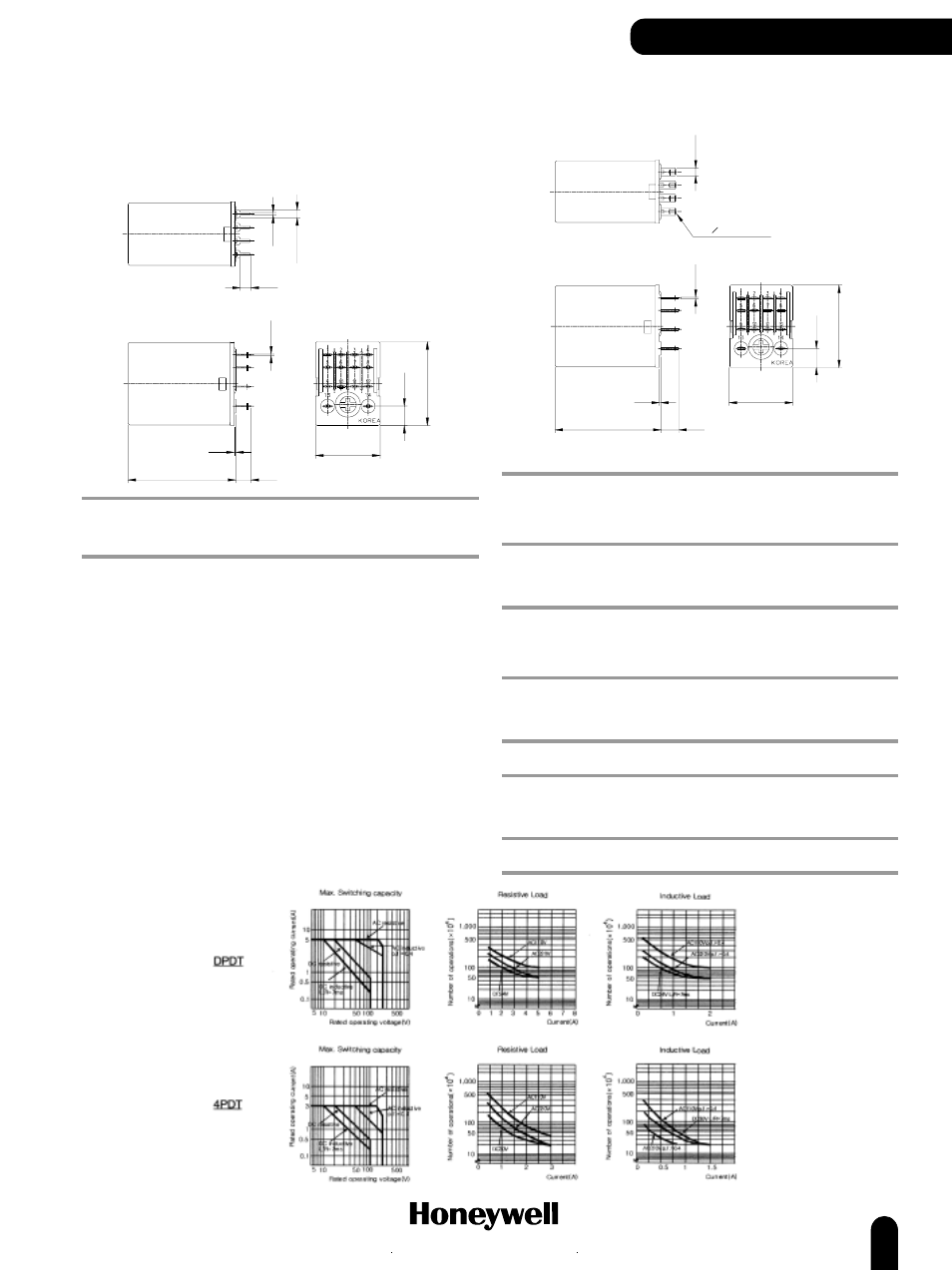

POWER RELAYS
Solder/Plug-In Terminal, 4PDT
14 - O 1.2 [0.05] x 3 Holes
0,5
[0.02]
Max. 36,0 [1.42] 6,0
[0.24]
Max. 21,5
[0.85]
M
ax
. 28,
0
[1.
10
]
6,
3
[0
.2
5]
0,
5
[0.
02]
2,
6
[0.
10
]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-1-AC110-120V
220 Vac 250 Vac/3 amp SZR-MY4-1-AC220V
12 Vdc 125 Vdc/0.6 amp SZR-MY4-1-DC12V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-N1-AC110-120V
220 Vac 250 Vac/3 amp SZR-MY4-N1-AC220V
12 Vdc 125 Vdc/0.6 amp SZR-MY4-N1-DC12V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/0.6 amp SZR-MY4-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/0.6 amp SZR-MY4-X1-DC24V
MY4 Series
OPTIONS
Standard, PCB Terminal, 4PDT
3,5
[0.14]
3,3
[0.13
]
1,0
[0.04]
0,5
[0
.02]
0,5
[0.02]
5,0
[0.20]
Max. 36,0 [1.42]
Max. 21,5
[0.85]
6,3
[0.25]
Max
. 28
,0
[1.1
0]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-1P-AC110-120V
220/240 Vac 250 Vac/3 amp SZR-MY4-1P-AC220V-240V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-1P-DC24V
