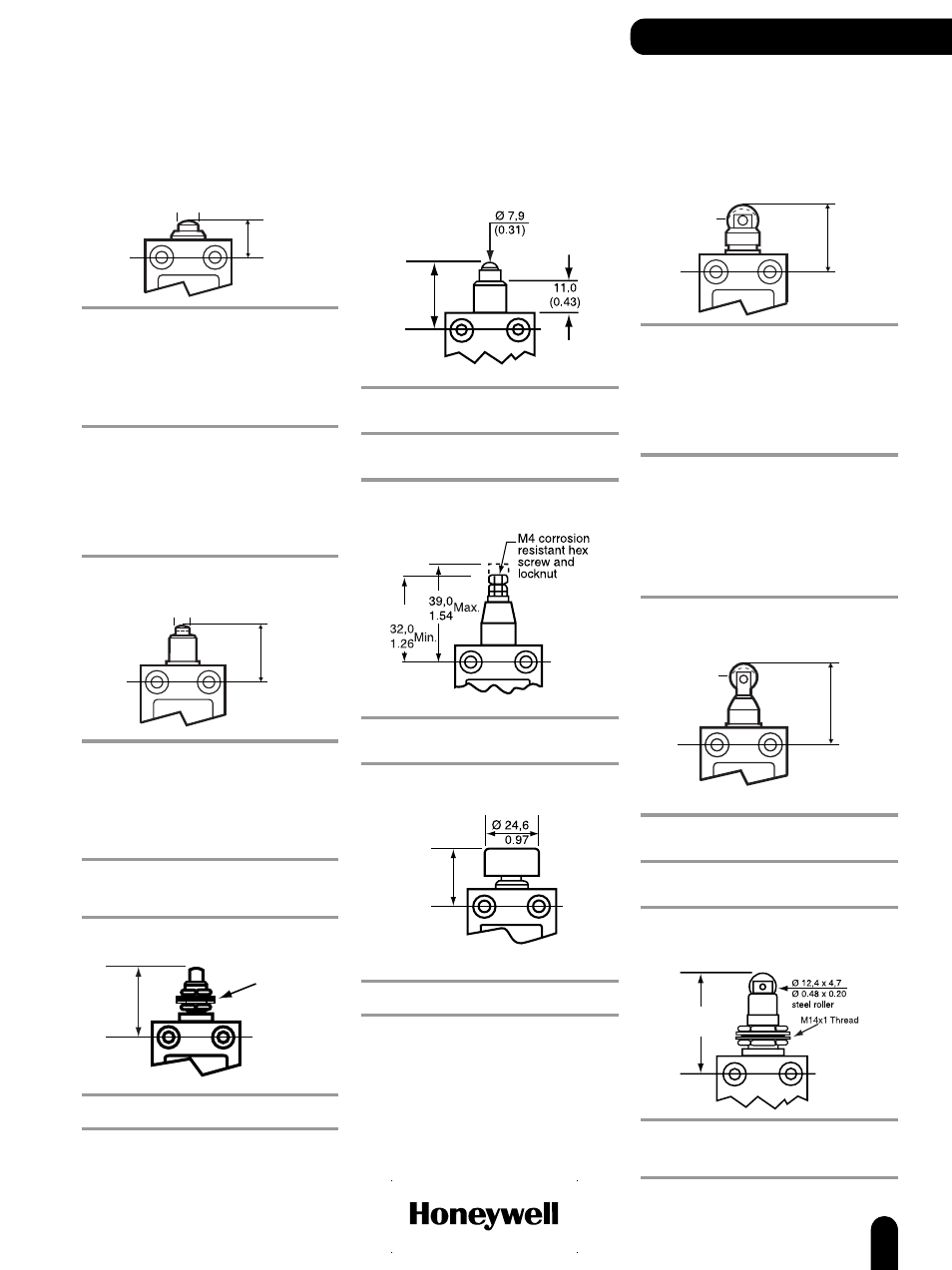

COMPACT LIMIT SWITCHES
Plunger actuated switches
OPTIONS
Top pin plunger
Ø 10,0
(0.39)
OP
15,7
(0.62)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE1-3
3 ft cable, side exit 914CE1-3A
3 ft cable, bottom exit, gold contacts 914CE1-3G
6 ft cable, bottom exit 914CE1-6
6 ft cable, bottom exit, gold contacts 914CE1-6G
9 ft cable, bottom exit 914CE1-9
Connector (dc), bottom exit 914CE1-Q
Connector (ac), bottom exit 914CE1-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE1-1
1 metre cable, side exit 14CE1-1A
1 metre cable, bottom exit, gold contacts 14CE1-1G
2 metre cable, bottom exit 14CE1-2
3 metre cable, bottom exit 14CE1-3
3 metre cable, side exit 14CE1-3A
3 metre cable, bottom exit, gold contacts 14CE1-3G
Connector (dc), side exit 14CE1-AQ
Connector (dc), bottom exit 14CE1-Q
Top pin plunger, boot seal
Ø 7,0
(0.28)
OP
24,6
(0.98)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE18-3
3 ft cable, side exit 914CE18-3A
6 ft cable, bottom exit 914CE18-6
9 ft cable, bottom exit 914CE18-9
9 ft cable, side exit 914CE18-9A
Connector (ac), side exit 914CE18-AQ1
Connector (dc), bottom exit 914CE18-Q
Connector (ac), bottom exit 914CE18-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE18-1
3 metre cable, bottom exit 14CE18-3
Connector (dc), bottom exit 14CE18-Q
Top pin plunger, panel mounted
M10x1 Thread
OP
29,2
(1.15)
NORTH AMERICA/GLOBAL REFERENCE
Connector (dc), bottom exit 914CE27-Q
Ball bearing plunger
OP
24,4
(0.96)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE66-3
6 ft cable, bottom exit 914CE66-6
EUROPE/ REFERENCE
1 metre cable, bottom exit 14CE66-1
2 metre cable, bottom exit 14CE66-2
Adjustable plunger
OP
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE19-3
9 ft cable, bottom exit 914CE19-9
Manually operated
OP
27,4
(1.08)
Operating force (OF): 9,0 N (2.02 lb)
NORTH AMERICA/GLOBAL REFERENCE
6 ft cable, bottom exit 914CE22-6
Top roller plunger, parallel
Ø 12,4
(0.49) OP
28,4
(1.12)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE2-3
3 ft cable, side exit 914CE2-3A
3 ft cable, bottom exit, gold contacts 914CE2-3G
6 ft cable, bottom exit 914CE2-6
6 ft cable, side exit 914CE2-6A
9 ft cable, bottom exit 914CE2-9
Connector (dc), side exit 914CE2-AQ
Connector (dc), bottom exit 914CE2-Q
Connector (ac), bottom exit 914CE2-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE2-1
1 metre cable, side exit 14CE2-1A
1 metre cable, bottom exit, gold contacts 14CE2-1G
2 metre cable, bottom exit 14CE2-2
2 metre cable, side exit 14CE2-2A
3 metre cable, bottom exit 14CE2-3
3 metre cable, side exit 14CE2-3A
3 metre cable, bottom exit, gold contacts 14CE2-3G
Connector (dc), side exit 14CE2-AQ
Connector (dc), bottom exit 14CE2-Q
Top roller plunger, parallel, boot
seal
Ø 12,4
(0.49)
OP
34,4
(1.35)
Operating force (OF): 17,5 N (3.82 lb)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE31-3
6 ft cable, bottom exit 914CE31-6
EUROPE REFERENCE
1 metre cable, bottom exit 14CE31-1
3 metre cable, bottom exit 14CE31-3
Top roller plunger, parallel, panel
mounted
OP
42,5
(1.67)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE28-3
6 ft cable, bottom exit 914CE28-6
Connector (dc), bottom exit 914CE28-Q
