COMPACT LIMIT SWITCHES
LS Series
Plunger actuated switches
OPTIONS

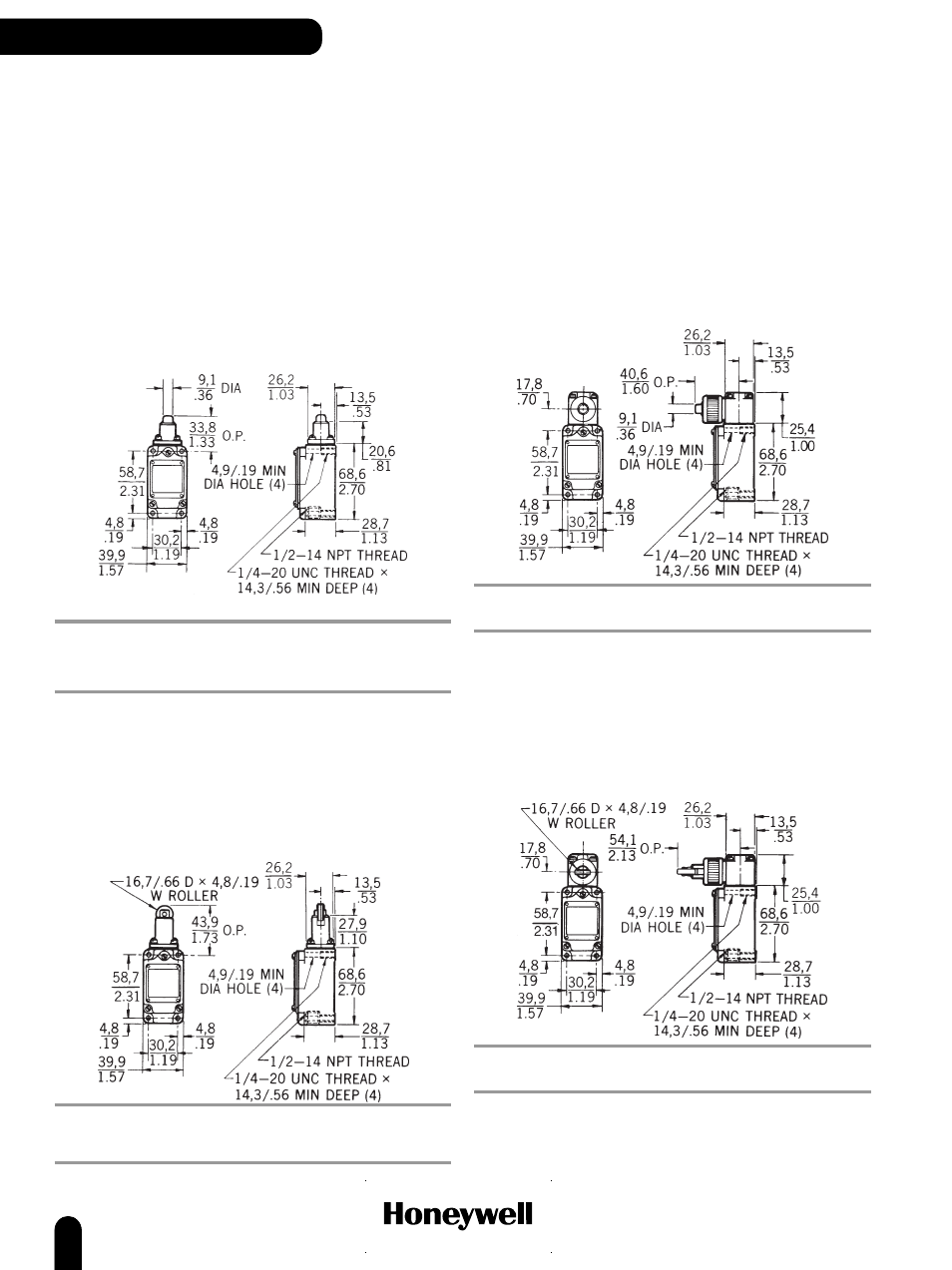

Top pin plunger
Operating force max. (OF):
Standard
31,14 N (7 lb)
Low
10 N (36 oz)
Pretravel max. (PT):
1,65 mm (0.065 in)
Overtravel min. (OT)
Standard
6,35 mm (0.25 in)
Low
5,56 mm (0.219 in)
Differential travel max. (DT):
Standard
0,51 mm (0.020 in)
Low
0,23 mm (0.009 in)
Switching options:
SPDT
CONDUIT
ELECTRICAL RATING
REFERENCE
A
2LS1
F
2LS1-L
20 mm
A
2LS1-4C
Low OF/OT/DT
E
2LS111
Top roller plunger
Operating force max. (OF):
31,14 N (7 lb)
Pretravel max. (PT):
1,65 mm (0.065 in)
Overtravel min. (OT)
5,56 mm (0.219 in)
Differential travel max. (DT):
0,51 mm (0.020 in)
Switching options:
SPDT
CONDUIT
ELECTRICAL RATING
REFERENCE
A
5LS1
F
5LS1-L
20 mm
A
5LS1-4C
Side pin plunger
Operating force max. (OF):
40,03 N (9 lb)
Pretravel max. (PT):
2,8 mm (0.110 in)
Overtravel min. (OT)
6,35 mm (0.25 in)
Differential travel max. (DT):
1,02 mm (0.040 in)
Switching options:
SPDT
CONDUIT
ELECTRICAL RATING
REFERENCE
A
4LS1
20 mm
A
4LS1-4C
Side roller plunger
Operating force max. (OF):
40,03 N (9 lb)
Pretravel max. (PT):
2,8 mm (0.110 in)
Overtravel min. (OT)
5,56 mm (0.219 in)
Differential travel max. (DT):
1,02 mm (0.040 in)
Switching options:
SPDT
CONDUIT
ELECTRICAL RATING
REFERENCE
A
3LS1
20 mm
A
3LS1-4C
