 Ping Before Notification - A threshold valuefor the maximum Pings allowed to each
interface on thisdevice in a minute. Thevalid values range from 0 to 9999.

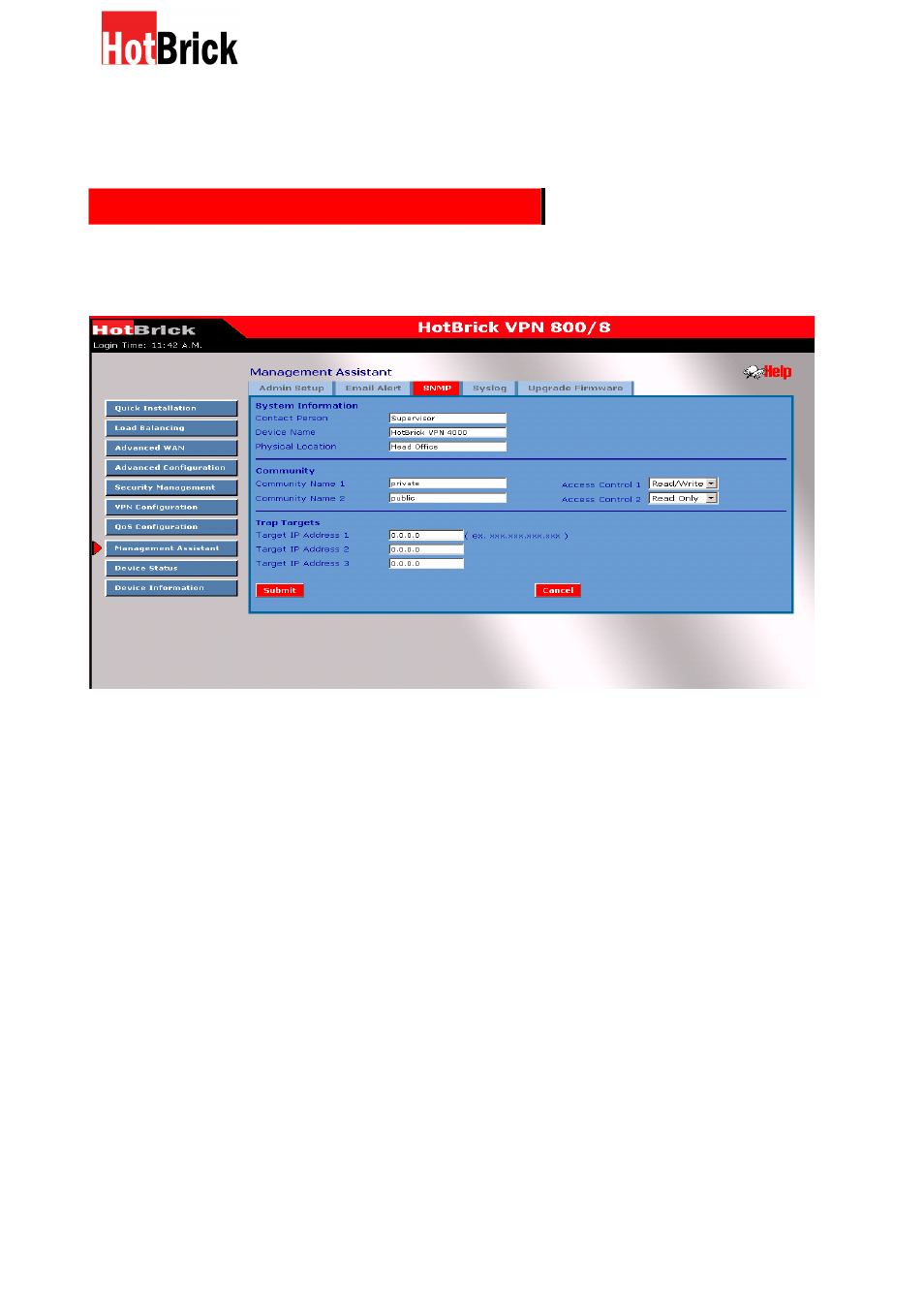

Management Assistant – SNMP
This section is only useful if you have SNMP(Simple Network Management Protocol) software on a
PC or server. If you have SNMP software, you can use a standard MIB 2 f ile with theVPN 800/8 F.
System Information
 Contact Person – The contact information for the person responsible for this device.
 Device name – The name of theVPN800/8 F Firewall.
 Physical Location – The location of the VPN800/8 F Firewall.
Community – A relationship between an SNMP agent and a set of SNMP managers that
defines authentication, accesscontrol, and proxy characteristics.
Trap Targets - Enter the IP addressof any targets (PCs running SNMP software) that you
want to receive traps.All trapsare level 1.
