Gateway – The IP Address of the Gateway or Router that the VPN800/8 F
Firewall must use to communicate with the destination above. (NOT the router
attached to the remote segment.)
Interface – Select the correct interface, usually "LAN". The "WAN" interface is only
available if NAT (Network Address Translation) is disabled.
Metric – The number of "hops" (routers) pass through to reach the remote LAN
segment. The shortest path will be used.
Routing list – This shows the current routing table set by users.
Configuring Other Routers on your LAN
All traffic for devices not on the local LAN must be forwarded to the VPN800/8 F Firewall,
so that they can be forwarded to the Internet. This is done by configuring other Routers to
use the VPN800/8 F Firewall as the Default Route or Default Gateway, as illustrated by
the example below.

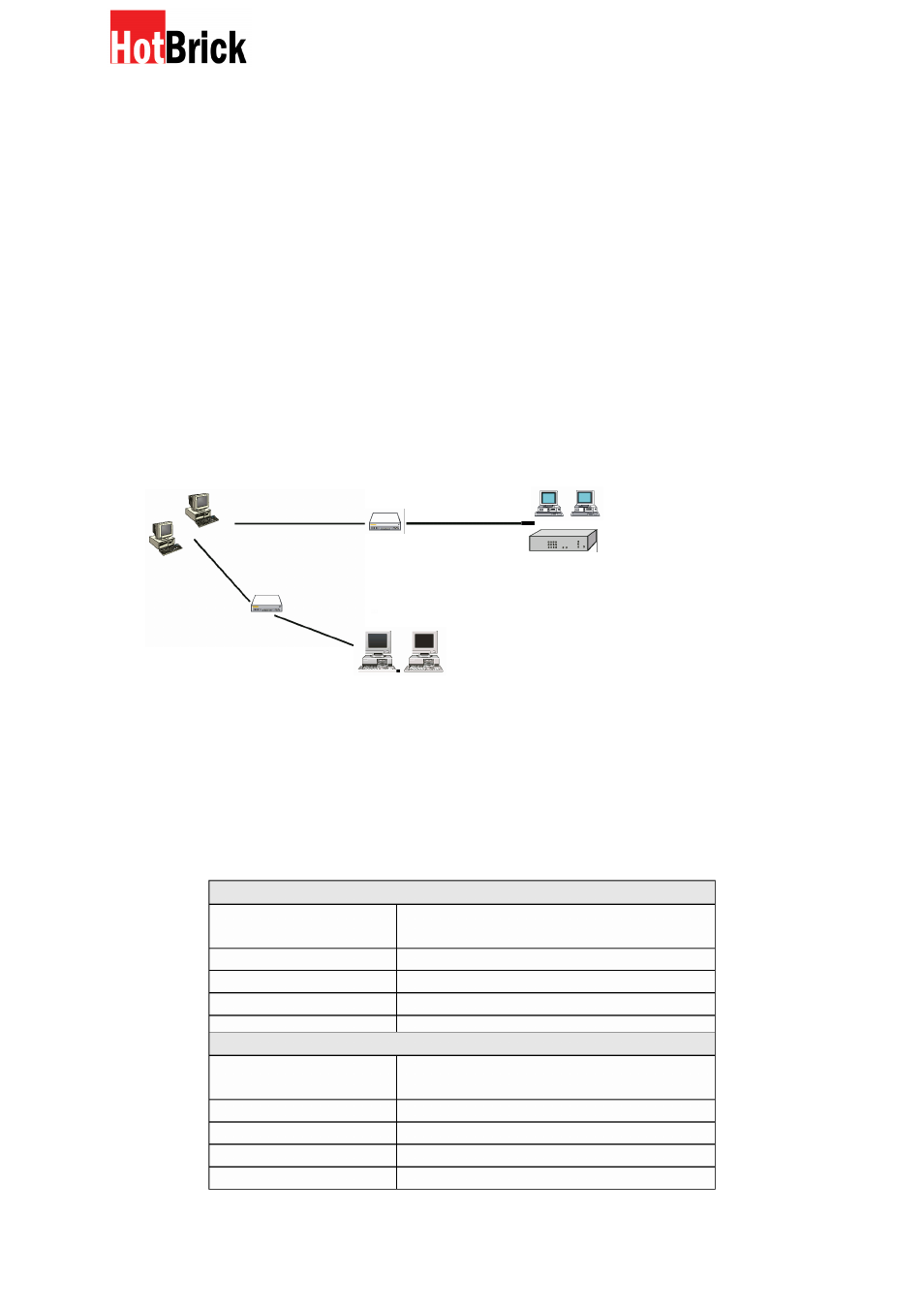

Static Routing – example
Segment 1
(192.168.2.xx) (192.168.2.80) (192.168.1.100) Segment 0
Router A (192.168.1.xx)
(192.168.1.1)
Router B
(192.168.2.90) (192.168.3.70)
Segment 2
(192.168.3.xx)
The Dual WAN VPN Firewall Gateway's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the VPN800/8 F Firewall
requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP 192.168.2.0
Address
Network Mask 255.255.255.0
Gateway IP Address 192.168.1.100
Interface
LAN
Metric 2
Entry 2 (Segment 2)
Destination IP 192.168.3.0
Address
Network Mask
255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.1.100
Interface
LAN
Metric 3
