VPN Configuration – Tunnel to HotBrick Unit

 VPN Tunnel List– here you can add a new tunnel or change an existing one from the list. The

router allows a maximum of 50 tunnels.

 Tunnel Name– In order to distinguish the tunnels, you have to give the “Tunnel” a unique name.

 Tunnel – The tunnel can be connected only after the tunnel check box is enabled.

 WAN port – You can choose WAN1, WAN2 or Any to make the VPN connection.

 Local Security Network– These entries identify the private network on this VPN router. The

Network hosts can use the LAN-to-LAN connection. You can choose a single IP address, the subnet,
or a selected IP range to make a VPN LAN-to-LAN connection.

 Remote Security Network– These entries identify the private network on the remote peer VPN

router whose hosts can use the LAN-to-LAN connection. You can choose a single IP address, the subnet,

or a selected IP range to make a VPN connection

 Remote Security Gateway – You can select the remote-side IP address (WAN IP address) as your

remote security gateway

 Preshared Key – Choose a shared secret for this entry, this must be the same on both units.

 Action

Connect – this button will initiate the tunnel

Submit Query – this button will add the policy

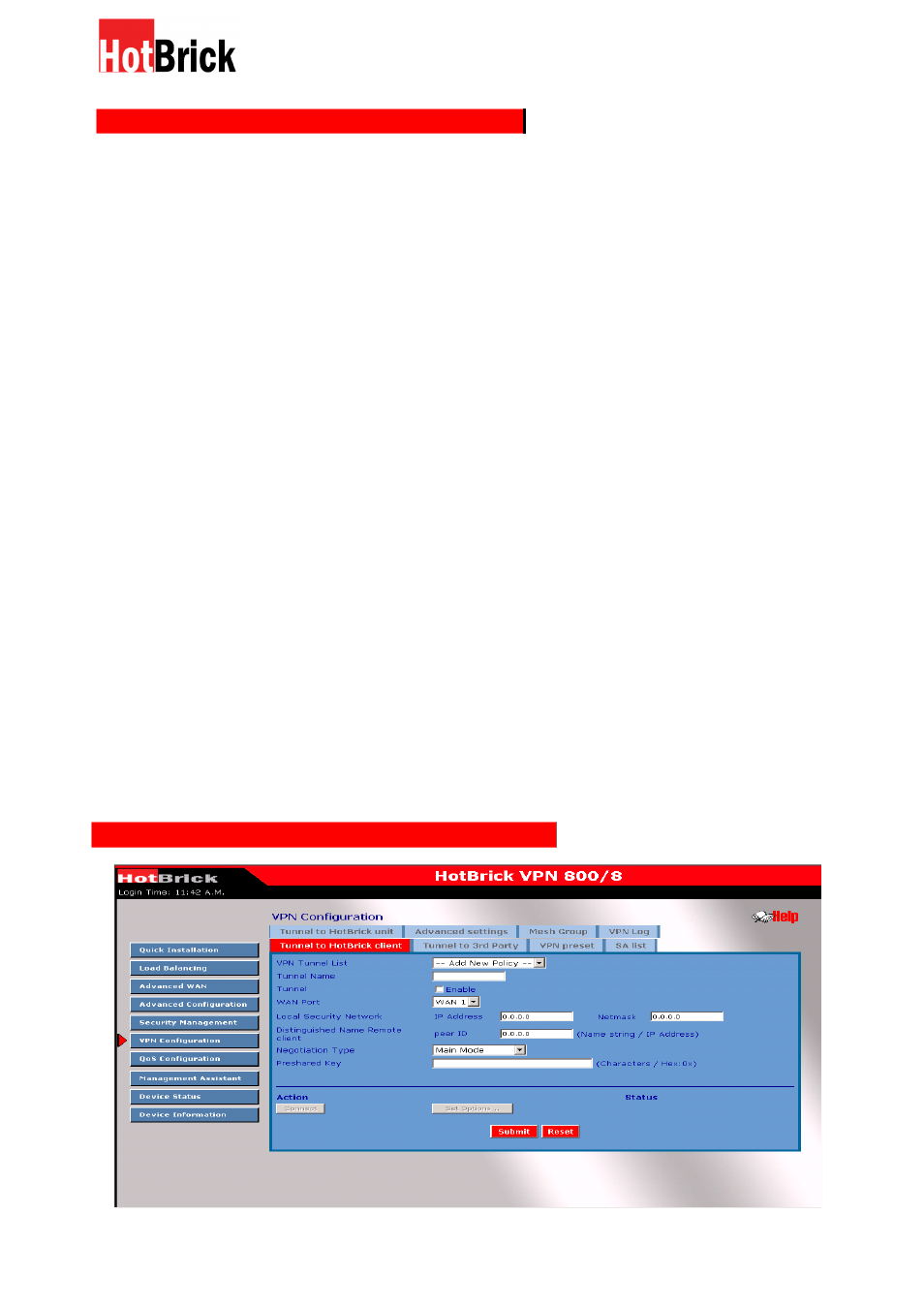

VPN Configuration – Tunnel to HotBrick Client
