Installation

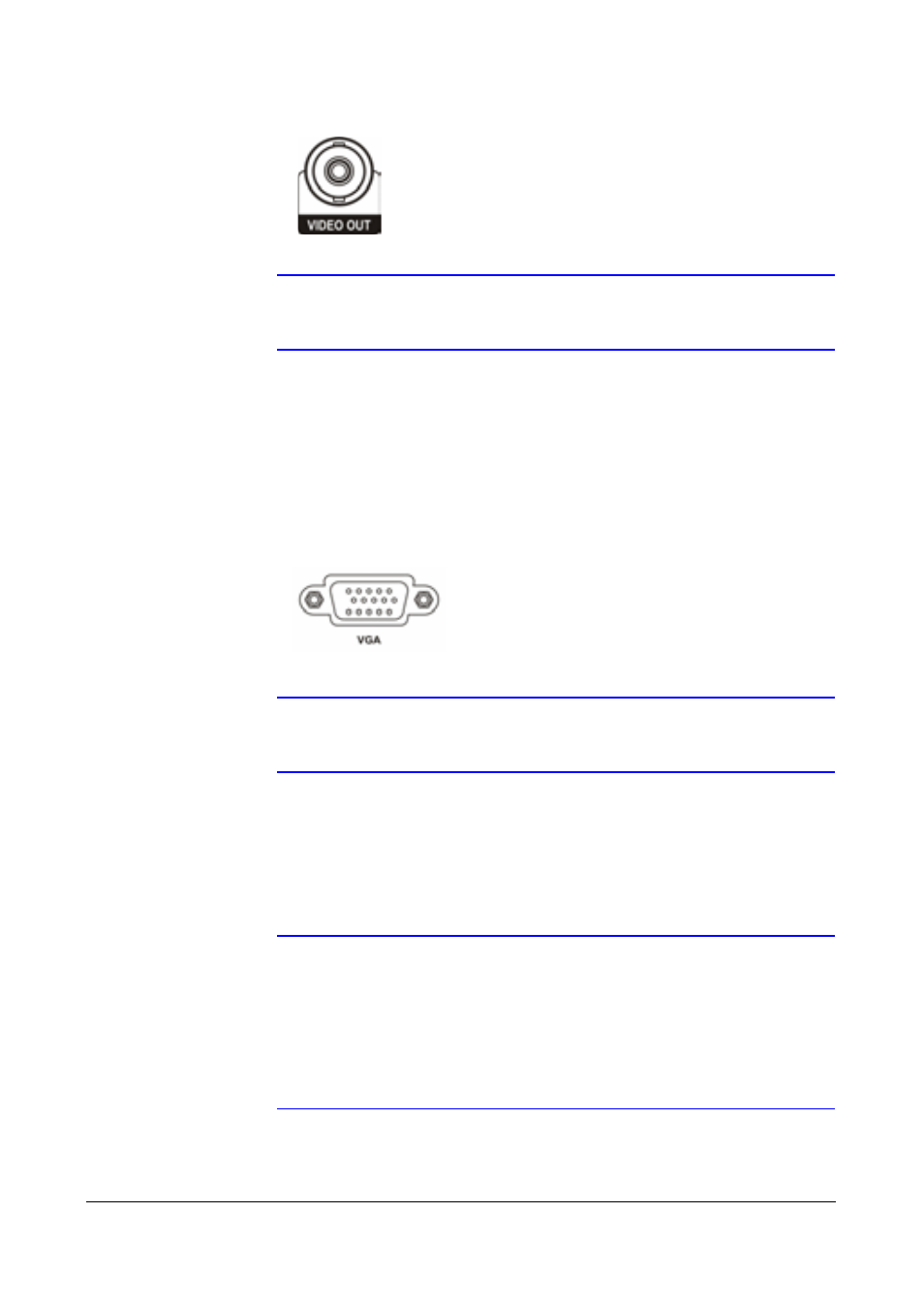

Figure 2-6

Video Out Connectors

Note

For SPOT monitor Output, set the CVBS/VGA selector switch to
CVBS.

Connecting the RGB Monitor

A VGA port is provided for RGB monitor output. Connect the RGB monitor to the VGA
connector if required. Connect an RGB cable with a DB-15 (male) connector, which is
usually less than 10 feet, to the DVR connector.

Figure 2-7

VGA Connector

Note

For RGB monitor output, set the CVBS/VGA selector switch to
VGA.

Connecting Alarm Inputs

Note

To make connections on the Alarm Connector Strip, press and
hold the button and insert the wire in the hole below the button.
After releasing the button, tug gently on the wire to make certain
it is connected.

To disconnect a wire, press and hold the button above the wire
and pull out the wire.
