Connecting to a Video Camera

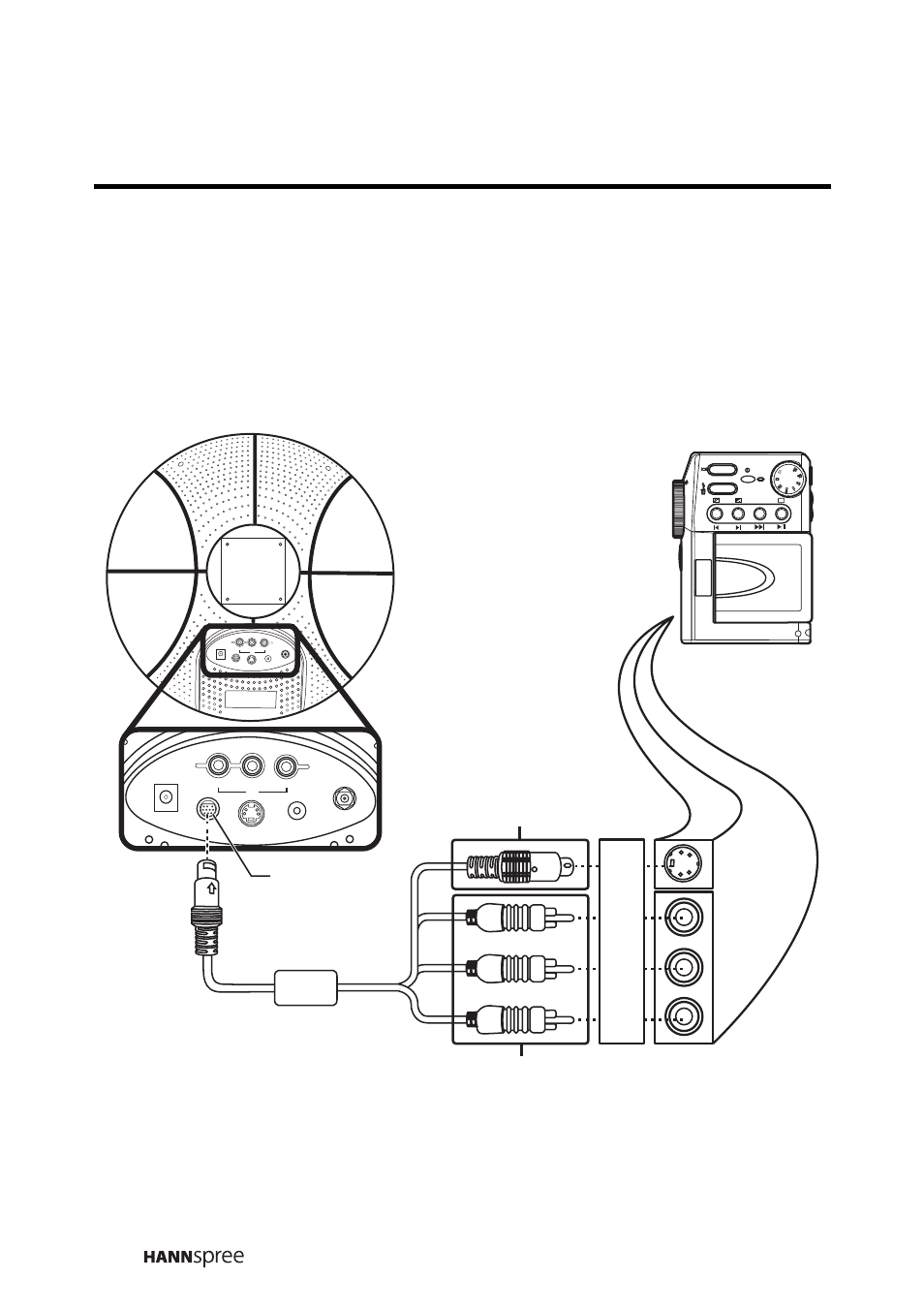

The following illustration shows you how to connect the TV to a
camcorder. Actual connections may vary according to the make and
model of the device. Refer to the user’s manual included with the
camcorder for more detailed instructions.
WB
S
B
R
W
Y
DC-IN
LINE OUT
AV 2
ANT
R
L
VIDEO
S-VIDEO
DC-IN
LINE OUT
AV 2
ANT
R
L
VIDEO
S-VIDEO
AV1
AV1
4-IN-1 cable
S-Video
Cables and connectors are
color-coded (black, red, white,
yellow).
AV2
connector
Note: When connecting the
S-Video connector and AV connec-
tors at the same time, the priority
is given to the S-Video connector.
AV
Connector
