G RC RH Y W
if your existing
thermostat is marked...

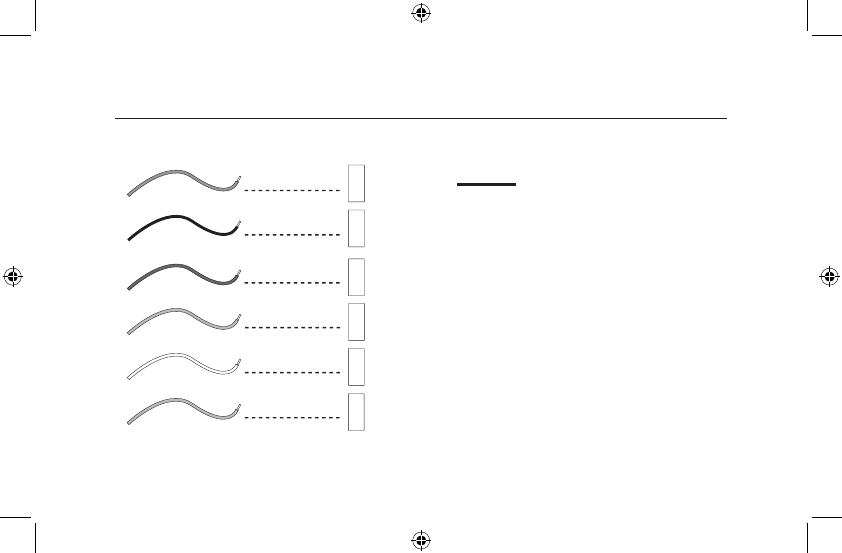

label the wire
with this sticker:
G / F
G
G
W / H / B
W/B
W/B
Y / C* / M / O
Y/0
Y/0
RC / VC
RC
RC
RH / R / VR / 4
RH
RH
24 Volt
24 Volt cool
air conditioning
compressor
heating
fan
Y1
Y1
Y1 heat pump
compressor
Connect Wires and Mount Thermostat to
Wallplate
■ Straighten bare end of each wire and cut or strip it
to 1/4” maximum. Insert each labeled wire into its
matching terminal.
NOTE: If a wire marked “C” is present, DO NOT connect
it to the thermosat.
■ Hold the wires in each terminal and tighten the
terminal screws securely, otherwise a loose wire
could cause operational problems with your system
or thermostat.
■ Push excess wire back into hole to prevent
interference with mounting of the thermostat.
■ Make sure the Thermostats System Switch is set to
OFF.
■ Insert two AA size alkaline batteries, observing the
polarity marked on the unit.
