Chart/Chart Combo View
Chart/Chart Combo View shows two versions of the Chart view in a combination split screen, so that you
can see the position of the boat on one side while you zoom in or perform other functions on the other.
You can perform any of the functions for the Chart view, but only on the side of the view you have selected
as the active side (see Navigation X-Press™ Menu: Active Side for more information). A green arrow
points to the side that is active. You can also adjust the size of the left side of a split screen (see Navigation
X-Press™ Menu: Split Position for more information).
NOTE: See Chart Views for more information about each side of this view.

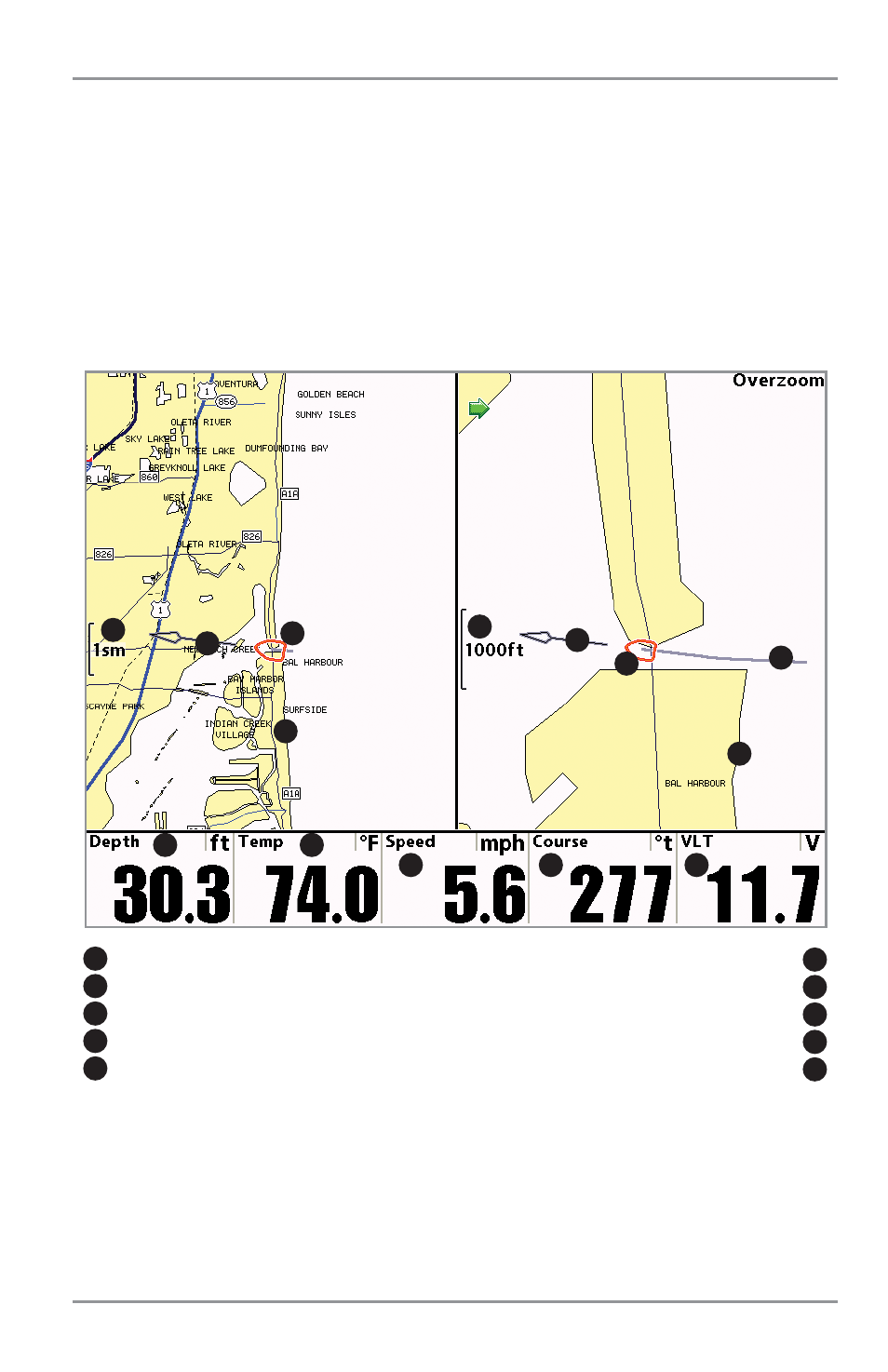

Chart/Chart Combo View (Standard)
1 2
3 4
Depth 1
Temp: water surface temperature 2
Speed: speed of boat 3
Course: the current direction the boat is traveling measured in degrees from North 4
VLT: Voltage 5
5
Cartography 6
Track 7
Boat Icon 8
Course Projection Line 9
Map Scale 10
6
7
8
8
9
9
10
10
