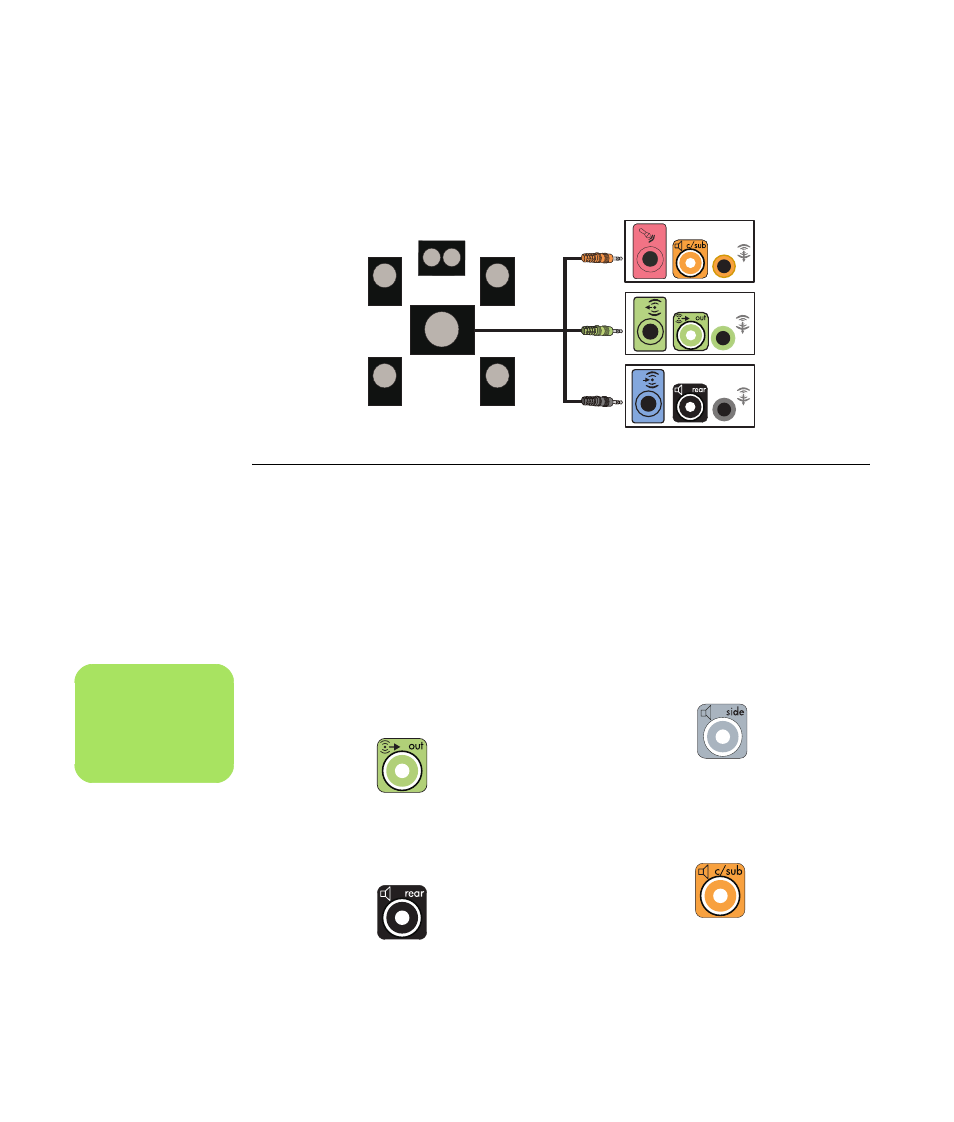

The following diagram shows a typical 5.1 audio installation:

Connecting 7.1 (7 Speakers and a Subwoofer) Audio Speakers

(Select models only)

To connect two front speakers, two side speakers,
two rear speakers, a center speaker, and a
subwoofer for eight-channel (7.1 speaker) output:

1

Turn off the PC.

.

2

Connect the front speaker cable to the lime--
green Audio Line Out connector on the back
of your PC.

3

Connect the rear speaker cable to the black
connector on the back of your PC.

4

For type 6 connectors only, connect the side
speaker cable to the gray connector on the
back of your PC.

5

Connect the center speaker and subwoofer
speaker cable to the gold connector on the
back of your PC.

6

Connect the cables to the audio system.

OUT

IN

n

Type 6 is six
connectors
