HP Media Center PC Getting Started Guide
Composite Video Composite Video In from set-top box connector (yellow)
L audio Left audio input from set-top box connector (white)
R audio Right audio input from set-top box connector (red)
TV/Cable Ant TV In (TV antenna or cable input from wall outlet with
no set-top box)
FM Ant FM In (radio antenna input)
Plug the FM radio antenna cable into the FM In port on the
back of the PC on the TV tuner card. You may want to extend
the ends of the cable to improve your FM radio signal
reception.
Modem (Line In RJ-11)
(select models only)
Plug the modem cable (provided in the PC box) into the
computer modem connector on the back of the PC. Plug the
other end to your telephone line wall jack connector.
Analog Video Analog Video Out: S-video or composite video
(select models only)
VGA Monitor/VGA display output
Digital audio
In and Out
Digital audio input (white)
Digital audio output (red)

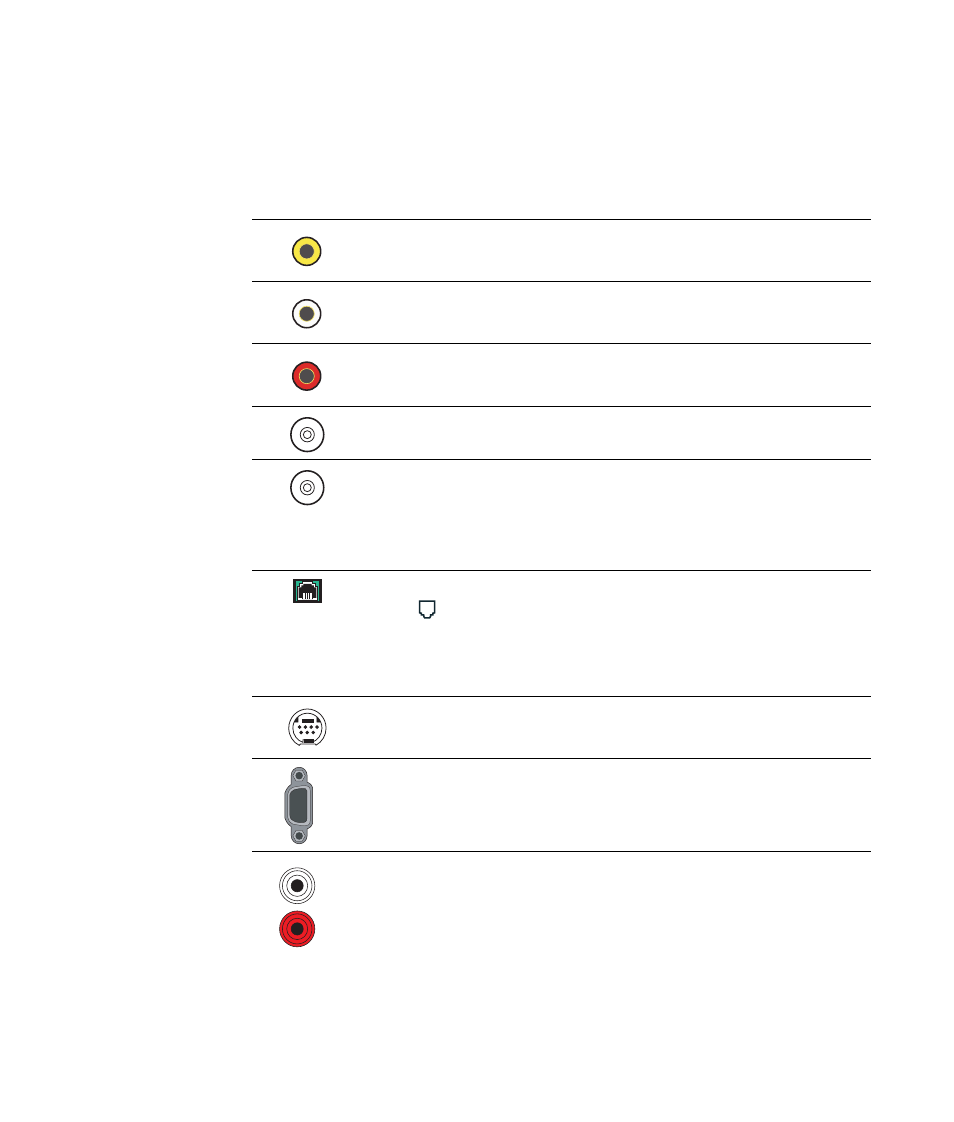

Connector Icon/label Description and function
LINE
digital audio in
out
