Connecting the Television Signal
11
Connecting the Television Signal
Using TV Cables
Your HP Media Center PC includes video and audio
cables to connect the television signals.
Use video and audio cables to connect:
■ Video out from the HP Media Center PC to
the TV
■ TV signal source video in to the HP Media
Center PC
■ Audio out from the HP Media Center PC to
the TV
■ TV signal source audio in to the HP Media
Center PC

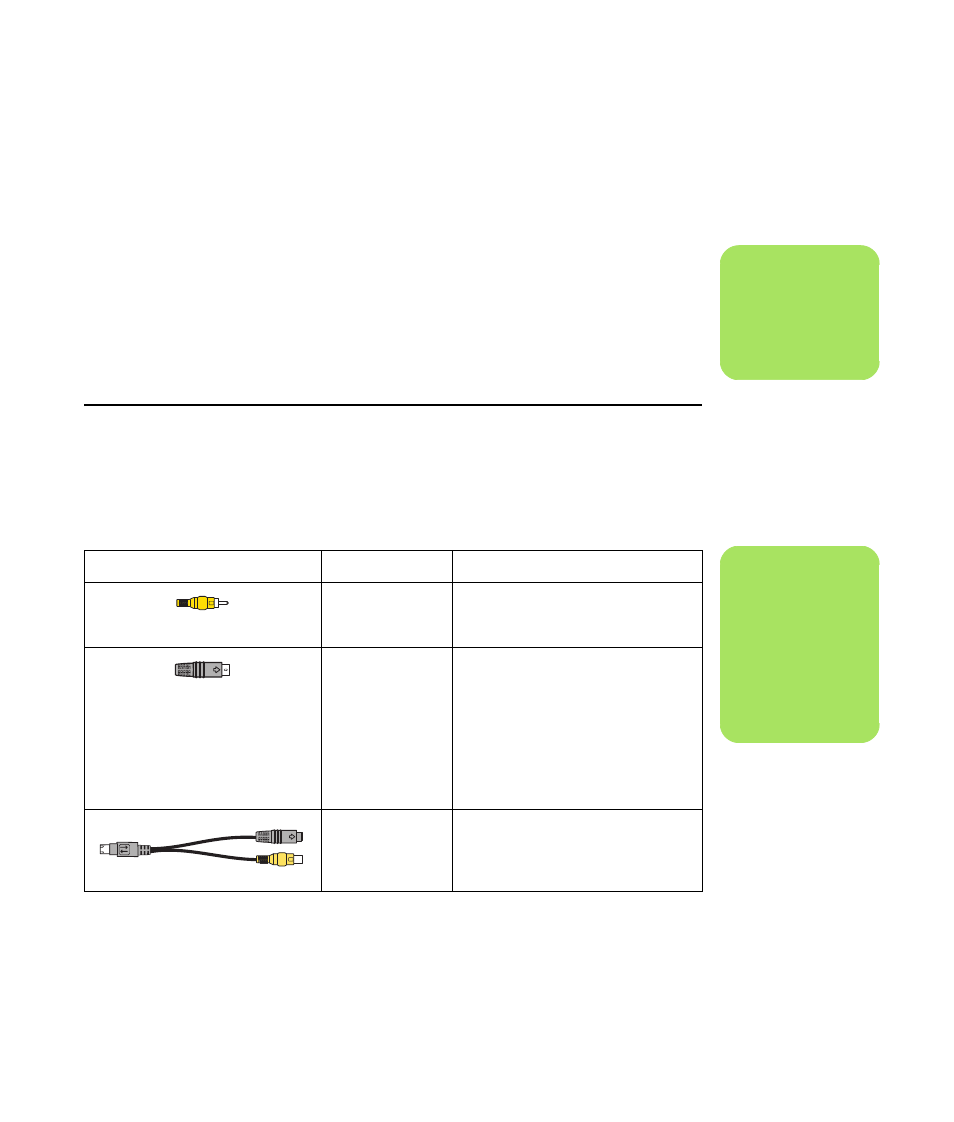

Audio and Video Cables
The following table shows cable types that may be
required to connect your HP Media Center PC to
your television system. The number and type of
cables included with your PC may vary by model.
n
Location and number
of connectors may
vary by model.
Cable Name Description
Composite video RCA yellow end. Plug cable into an
RCA connector such as Composite
Video Out or TV Source In connector.
S-video (Delivers
a sharper image
than composite
video by
providing
separate color
and black-and-
white image
signals.) Y/C, 4-pin. Plug cable into an S-video
connector such as S-video Video Out
or TV Source In connector.
Analog video
cable
(Select models
only) Used with analog video output
connector. Provides S-video and
composite video output.
n
The number and type
of cables required to
connect your PC may
vary by model. Some
cables are included
for select models
only.
