Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13

68

Service Parts

Beginning Manufacturing Date: Aug 2010

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.

Stocked

at Depot

ITEM

DESCRIPTION

COMMENTS

PART NUMBER

1

Non-Combustible Board

2170-136

2

Refractory Bracket

Qty 2 req

2241-115

3

Rock Fixture Assembly

2241-040

Y

4

Base Pan Assembly

2242-015

4

Base Pan Back

2242-114

4

Base Pan Front

2242-101

4

Pilot Hood

2241-117

4

Pilot Shield

Stainless

2241-116

5

Burner Assembly

NG

2242-007

Y

LP

2242-008

Y

6

Glass Refractory, Back

2242-200

7

Glass Refractory, Sides

Qty 2 req

2242-201

8

Glass Retainer Clips

Pkg of 25

060-235-25

Y

9

Surround Assembly

2170-019

10

Glass Assembly

GLA-950TR

Y

11

Junction box

4021-013

Y

Additional service part numbers on following page.

4/13

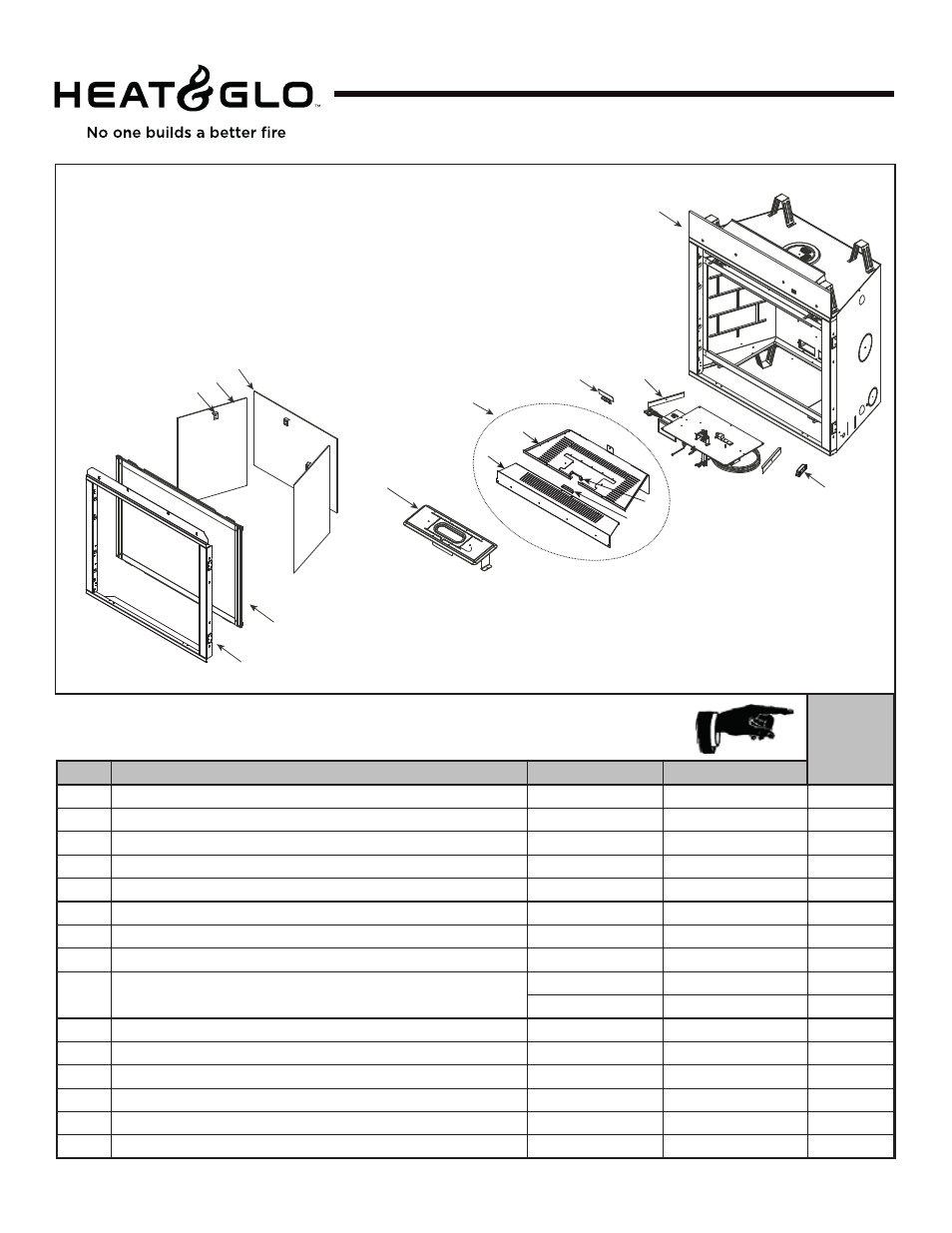

42” Gas Fireplace - DV
