B. Vent Components Diagrams (continued)

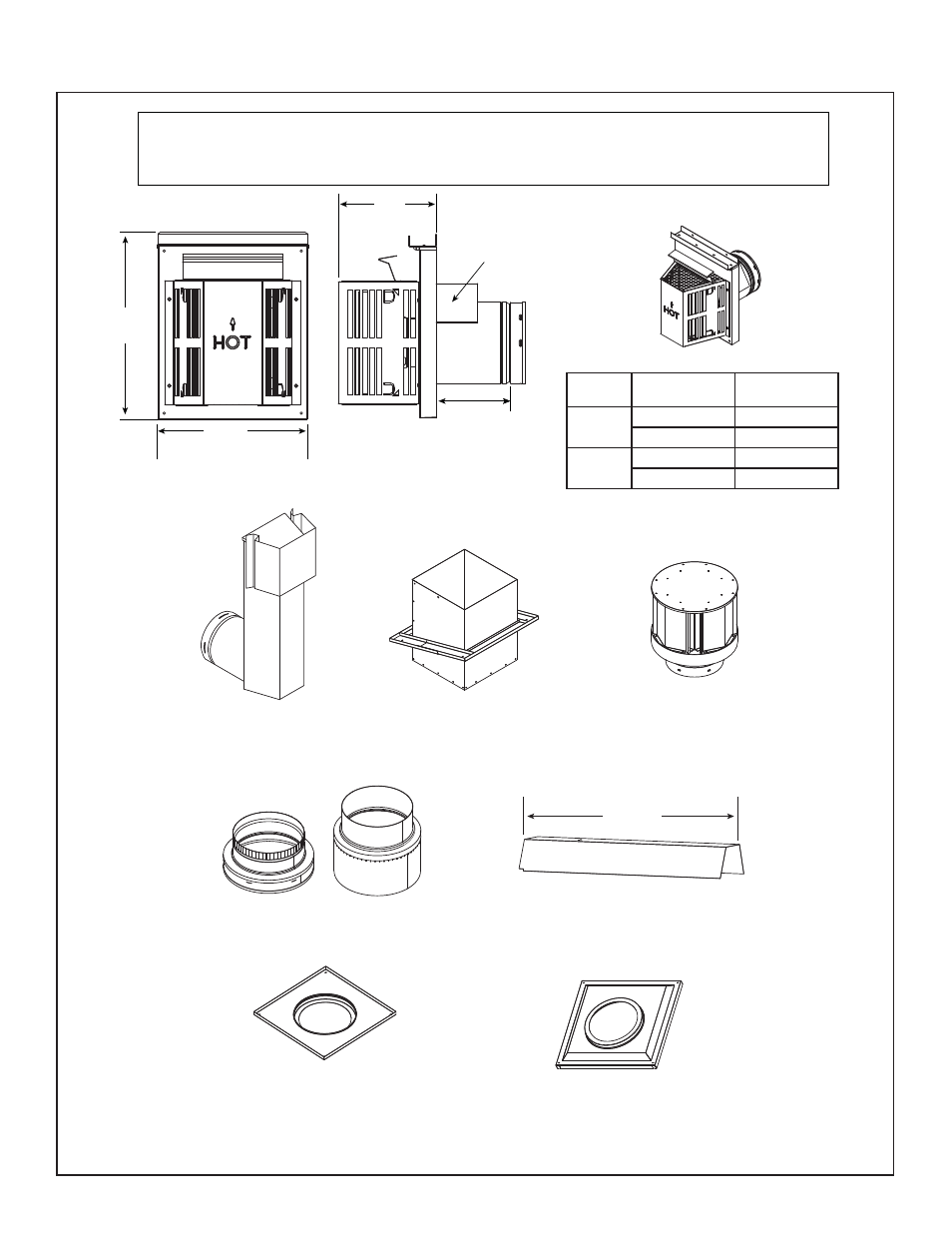

Figure 16.8 SLP Series Vent Components

SLK-SNKD

Snorkel

Termination Cap

SLP-TVHW

Vertical

Termination Cap

SLP-CCS-BK

Cathedral Ceiling

Support Box-Black

SLP-DCF-BK

Ceiling Firestop

Black

SLP-WT-BK

Wall Thimble-Black

DVP-2SL

Adapter

26 in.

660 mm

DVP-HSM-B

Extended Heat Shield

SLP-TRAP

Horizontal Termination Cap

15-1/8 in.

(384 mm)

Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm)
the existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a
DVP-HSM-B will be required.

Heat

Shield

Term Cap

Minimum

Effective Length

Maximum

Effective Length

Trap1

3-1/8 in.

4-3/4 in.

79 mm

121 mm

Trap2

5-1/4 in.

9-1/4 in.

133 mm

235 mm

8 in.

(203 mm)

12 in.

(305 mm)

Max

Effective

Length
