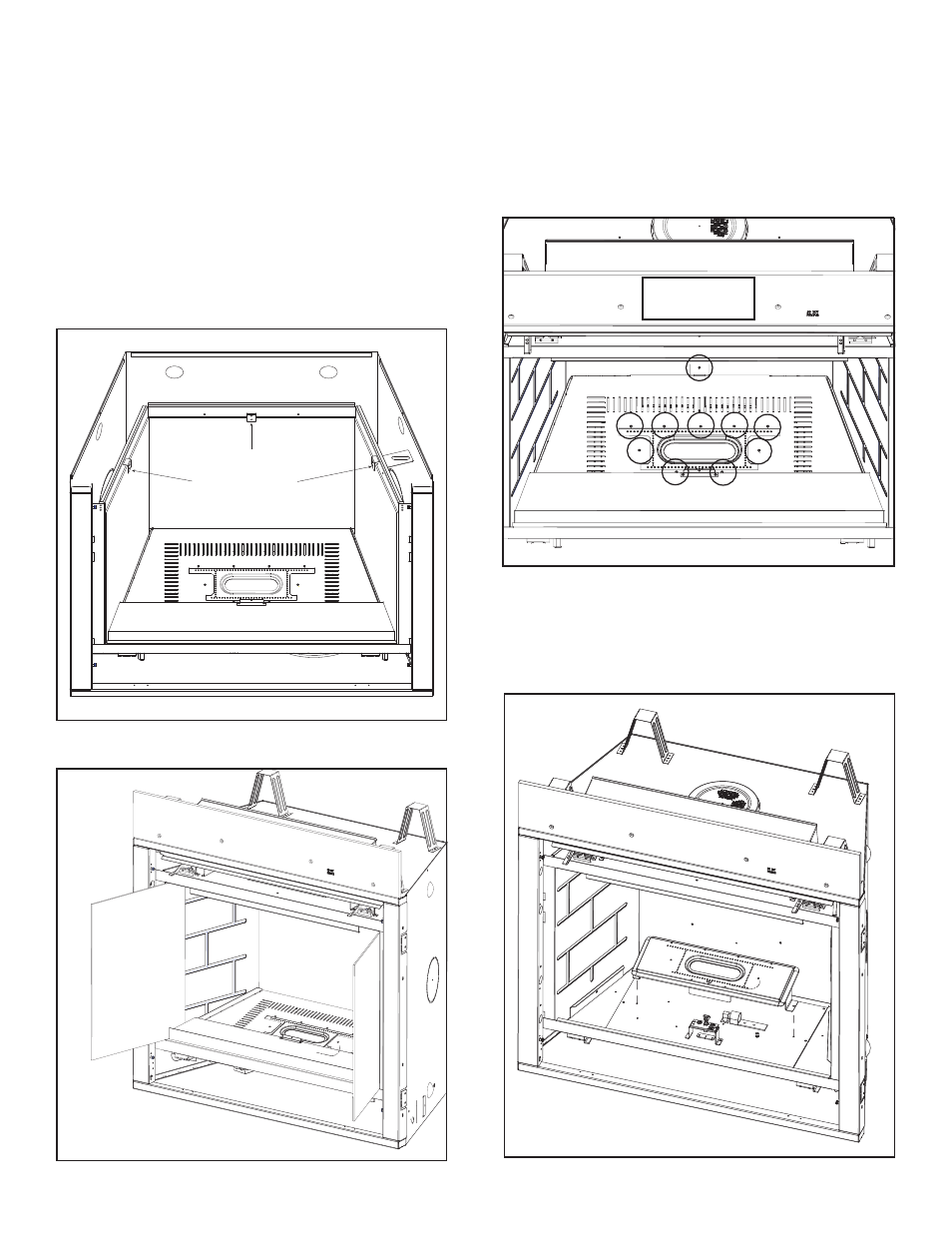

Figure 3.3 Glass Panel Removal
C. Glass Refractory, Base Pan, Burner and
Valve Assembly Removal
It may become necessary to remove the glass panels,
base pan, burner and valve assembly. This task should
be performed by a qualifi ed service technician.
Figure 3.4 Base Pan Removal
Figure 3.2 Remove Glass Panel Retainers
REAR PANEL RETAINER
SIDE PANEL RETAINERS
Figure 3.5 Burner Assembly Removal
4. Remove the base pan by removing the screws circled
in Figure 3.4.
5. Remove the burner assembly by removing the two
screws as shown in Figure 3.5. To disengage the burner
from the orifi ce, slide the burner to the right and lift it out.
6. See Figure 3.6 for valve assembly removal.
1. Remove the media.
2. Remove the side glass panel retainers. See Figure
3.2. Slide the side glass panels out of the appliance
as shown in Figure 3.3.
3. Remove the rear glass panel retainer, shown in Figure
3.2, and lift the rear glass panel out of the appliance.
