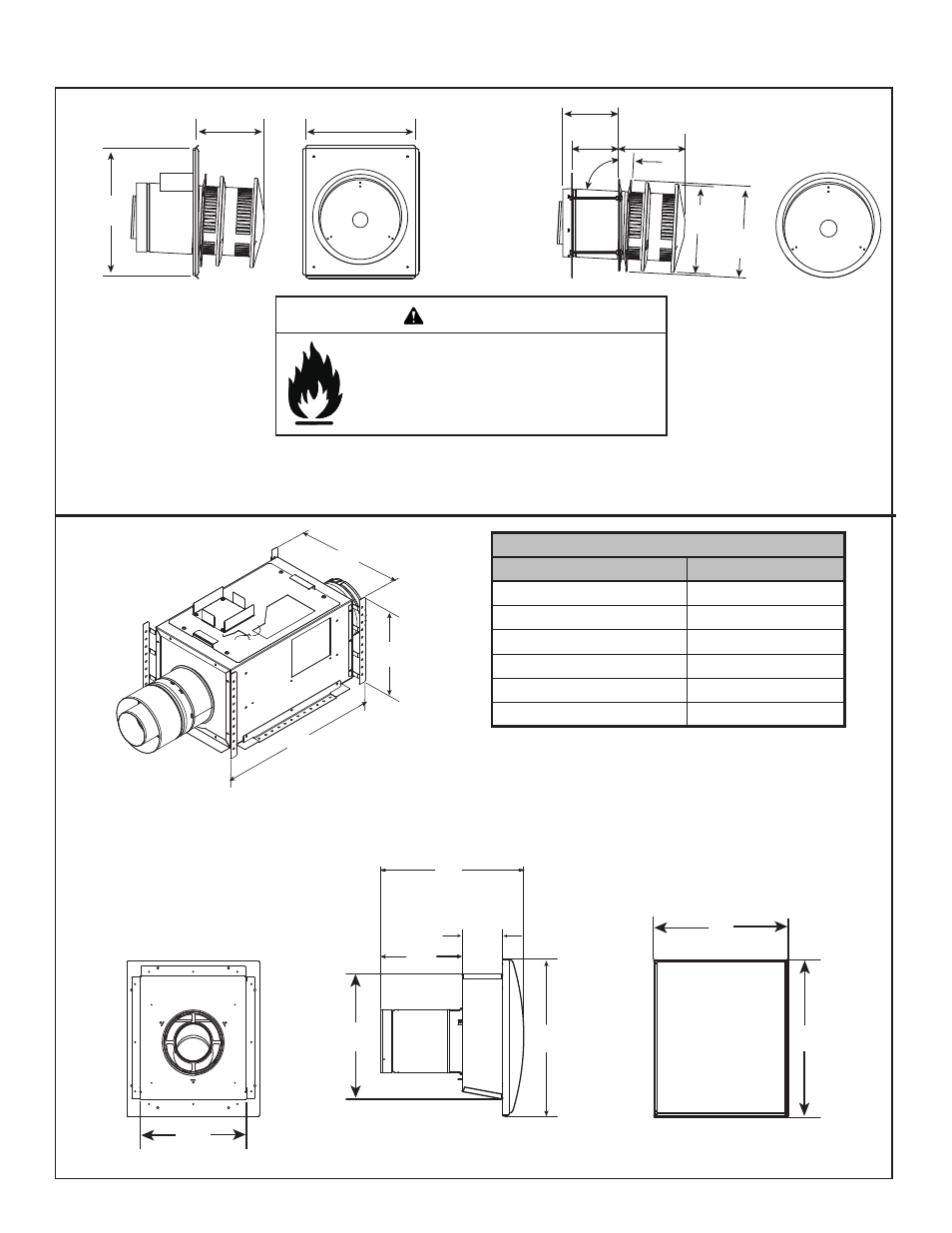

B. Vent Components Diagrams (continued)

DVP-HRC-SS

DVP-HRC-ZC-SS

HORIZONTAL TERMINATION CAP

13 in.

(330 mm)

15 in.

(381 mm)

8-1/8 in.

(206 mm)

10-7/8 in.

276 mm

10-1/2 in.

267 mm

87°

Effective Length

5-3/4 to 8-3/8 in.

146 to 213 mm

5-1/2 in.
140 mm

8-3/8 in.
213 mm

Figure 16.6 Vent Components

Fire Risk.
• When using DVP-HRC-SS and DVP-HRC-ZC-

SS termination caps on top vented fi replaces, a
6 inch minimum vertical vent section is required
before installing fi rst elbow.

WARNING

Optional Wire Harness

DESCRIPTION

PART NUMBER

10 ft. PV Wire Harness

PVI-WH10

20 ft. PV Wire Harness

PVI-WH20

40 ft. PV Wire Harness

PVI-WH40

60 ft. PV Wire Harness

PVI-WH60

80 ft. PV Wire Harness

PVI-WH80

100 ft. PV Wire Harness

PVI-WH100

PVI-SLP

Power Vent Inline

SLP-LPC

SLP Low Profi le Cap

Note: Wire harnesses required to power the PVI-SLP
connect to the appliance and are ordered separately from
PVI-SLP. Contact your dealer to order.

16 IN.

406 mm

15 IN.

(381 mm)

16-11/16 IN.

(424 mm)

9-3/16 IN.
(233 mm)

4-1/2 IN.

114 mm

16-11/16 IN.

424 mm

13-5/8 IN.
(346 mm)

12-1/2 IN.
(318 mm)

12-1/2 IN.
318 mm

20-3/4 IN.
527 mm

13-5/8 IN.
346 mm
