A. Remove Fixed Glass Assembly
See Section 14.G.
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
14 14
Appliance Setup

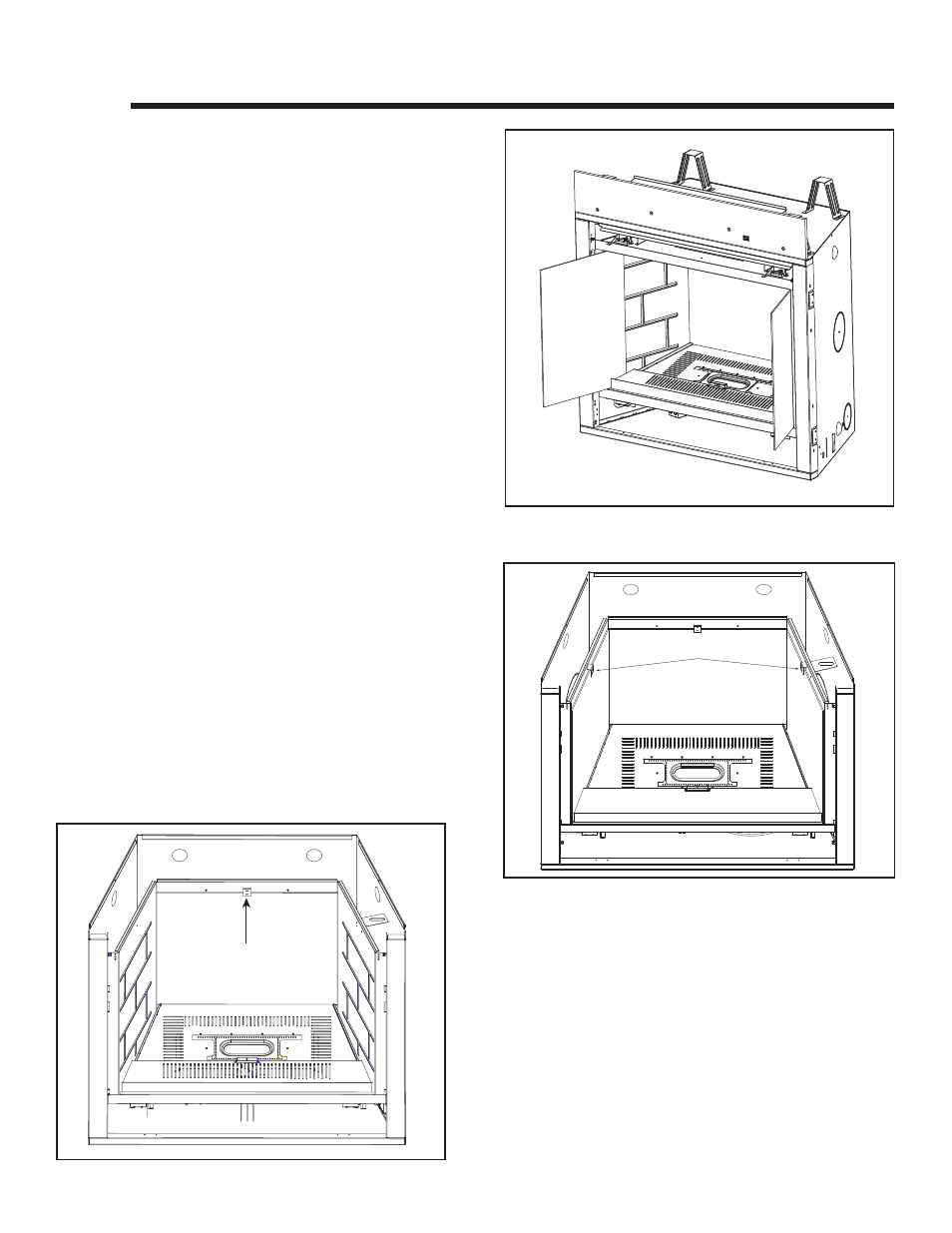

Figure 14.1 Install Rear Retainer
E. Glass Panel Installation
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation.
CAUTION! Glass is fragile. Handle with care.
1. Install the rear glass panel as shown in Figure 14.1.
the panel retainers and screws are included in the ap-
pliance manual bag.
Note: Screw the three glass panel retainers to the fi re-
box using the EXISTING pilot holes.
2. Slide the side glass panels in positions as shown in
Figure 14.2.
3. Figure 14.3. shows the glass panels installed properly.
SIDE RETAINERS
Figure 14.3 Install Side Retainers
REAR RETAINER
Figure 14.2 Install Side Glass Panels
