Framing and Clearances
A. Selecting Appliance Location
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffi c and away from furniture and draperies.
NOTICE: Illustrations refl ect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

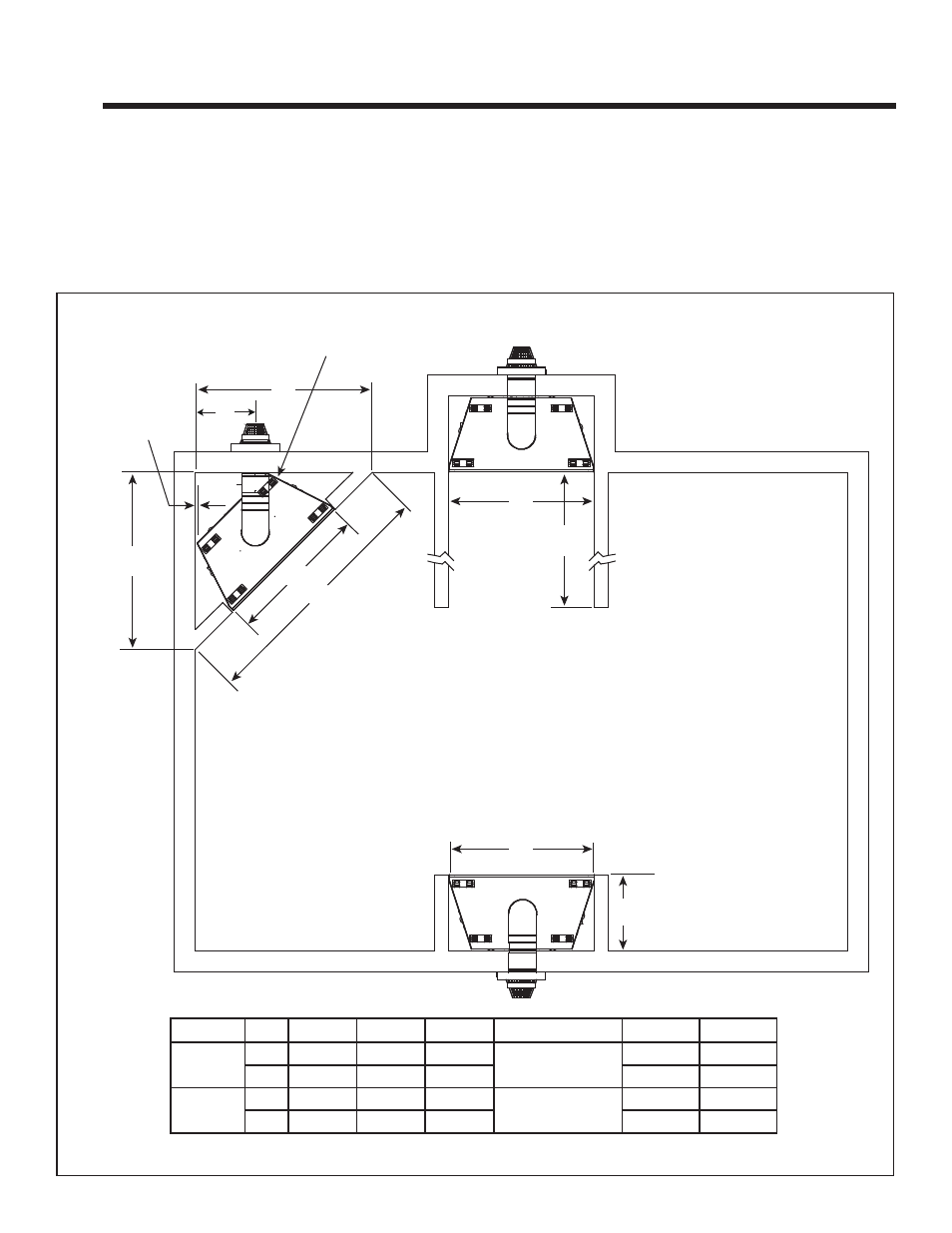

Figure 5.1 Appliance Locations
A B C D E F
6000
in. 51 42 72 See Section D.
Mantel Projections
22 17-3/4
mm 1295 1067 1829 559 451
8000
in. 55-7/8 49 79 See Section D.
Mantel Projections
22 19-3/4
mm 1419 1245 2007 559 502
1/2 IN.
ALCOVE
INSTALLATION
TOP VENT
ONE 90º ELBOW
A
B
C
B
D
B
E
F
A
NOTE: THE REAR STANDOFF MAY NEED
TO BE REMOVED WHEN VENTING AT 45º
