59 Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13

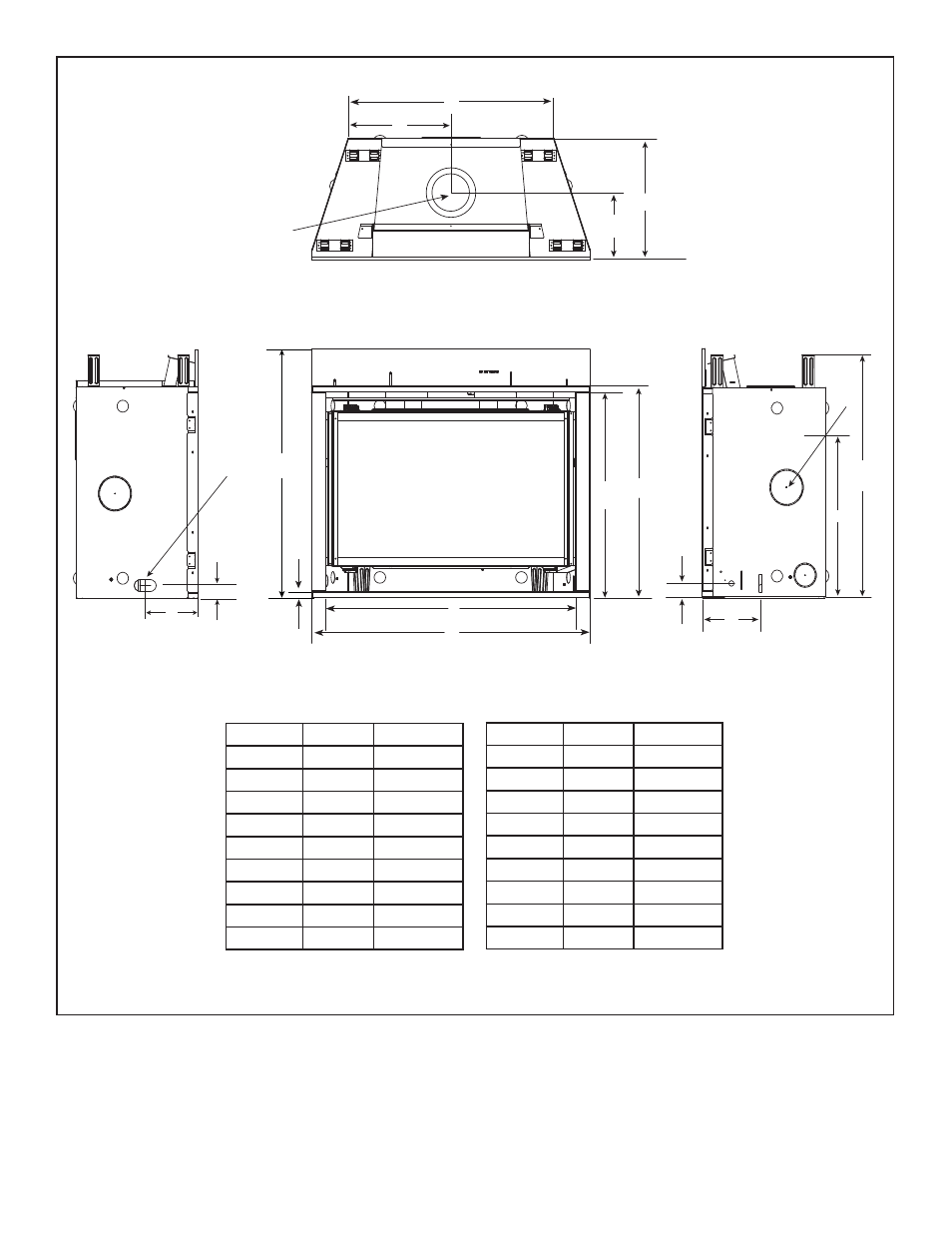

Figure 16.2 Appliance Dimensions-8000 Models
Location Inches Millimeters
J 21 533
K 11-11/16 297
L 35-1/2 901
M 17-3/4 451
N 8-1/2 216
O 2-7/8 73
P 8-1/2 216
Q 1 25
R 42-7/8 1089
Location Inches Millimeters
A 48 1219
B 43-1/8 1096
C 35-1/2 902
D 36-5/8 930
E 2-3/8 60
F 9-15/16 252
G 28-7/8 734
H 6 152
I 41-7/8 1064
TOP VIEW
J
K
L
M
N
LEFT SIDE
O
GAS LINE
ACCESS
P
A
B
C
D
FRONT VIEW
Q
R
E
F
G
H
I
RIGHT VIEW
