Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13

F. Media Placement

WARNING! Risk of Explosion! Follow media placement
instructions. Improperly placed media interfere with proper
burner operation.

Fireplace will not function properly.

Delayed ignition may occur.

WARNING! Choking Hazard! Keep media out of reach
of children.

• DO NOT place media in pilot opening.

• DO NOT place media in a position that it may fall into

the pilot opening.

• DO NOT use any media other than the media supplied

with this fi replace or listed in Service Parts Section in
this manual.

• DO NOT use more than 14 lb. of media per 8000CMOD-

IPI or 12 lb. per 6000CMOD-IPI fi replace. Note: One bag
of glass contains 7 lbs.

6000CMOD-IPI: Extra 2 lbs. may be saved for future use.

1. Place media evenly on the base pan. Figure 14.9

shows properly placed media.

2. The media can only be placed in the shaded areas as

shown in Figure 14.7 and Figure 14.8.

3. Do not apply media over the pilot opening. See Figure

14.7 and Figure 14.8.

4. The rock fi xture assembly is factory installed in the

appliance. See Figure 14.4 and Figure 14.5.

5. After the media is properly installed, carefully remove

the rock fi xture assembly. Do not allow any media to
fall into the opening. See Figure 14.6. Store the rock
fi xture assembly under the appliance for future use.

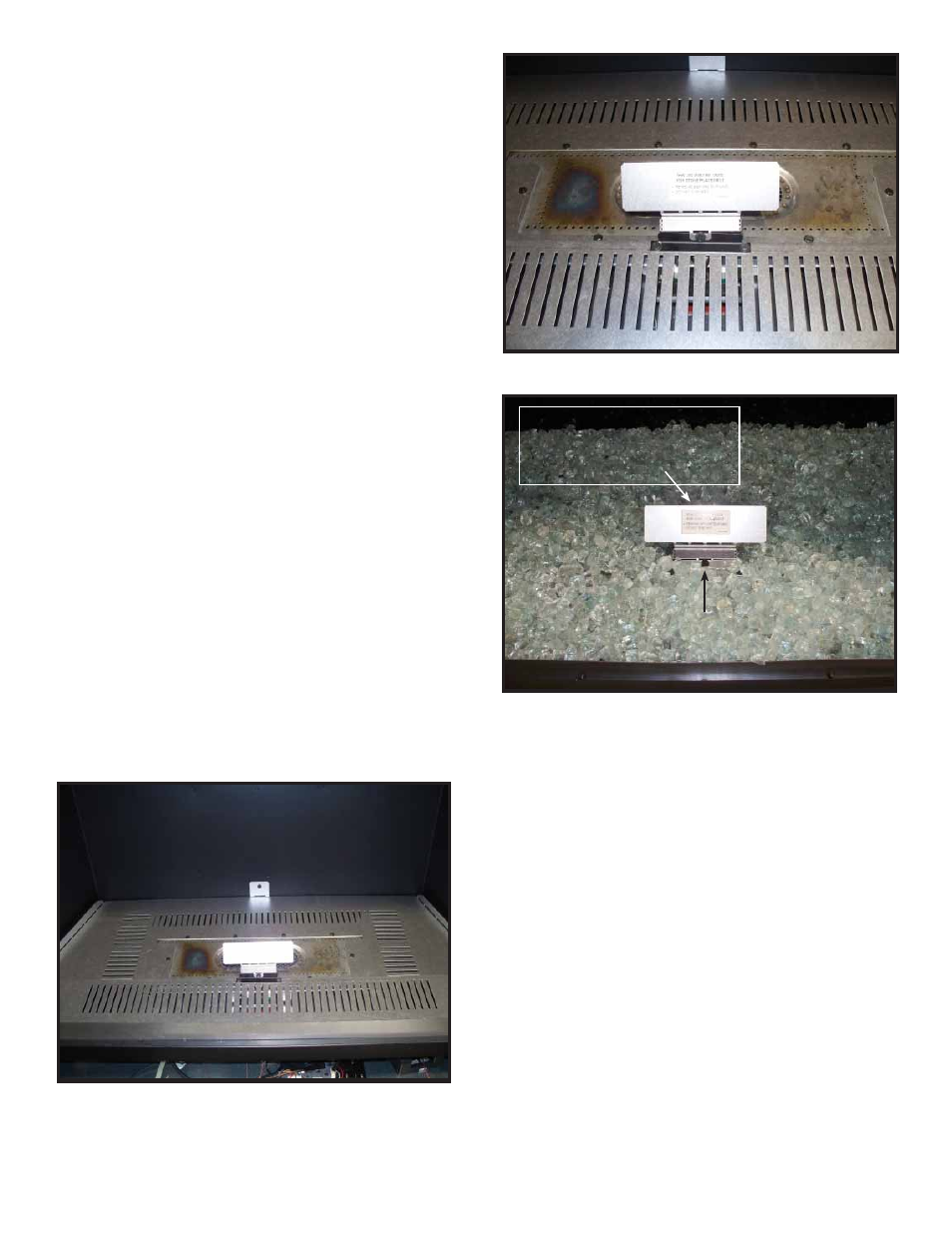

Figure 14.4 Rock Fixture Installed

Figure 14.5 Rock Fixture Assembly Installed

Figure 14.6 Remove Rock Fixture Assembly

REMOVE SCREW

THIS JIG MUST BE USED FOR

STONE PLACEMENT

• REMOVE BEFORE BURNING

• DO NOT DISCARD
