29 Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13
FLUE
RESTRICTOR

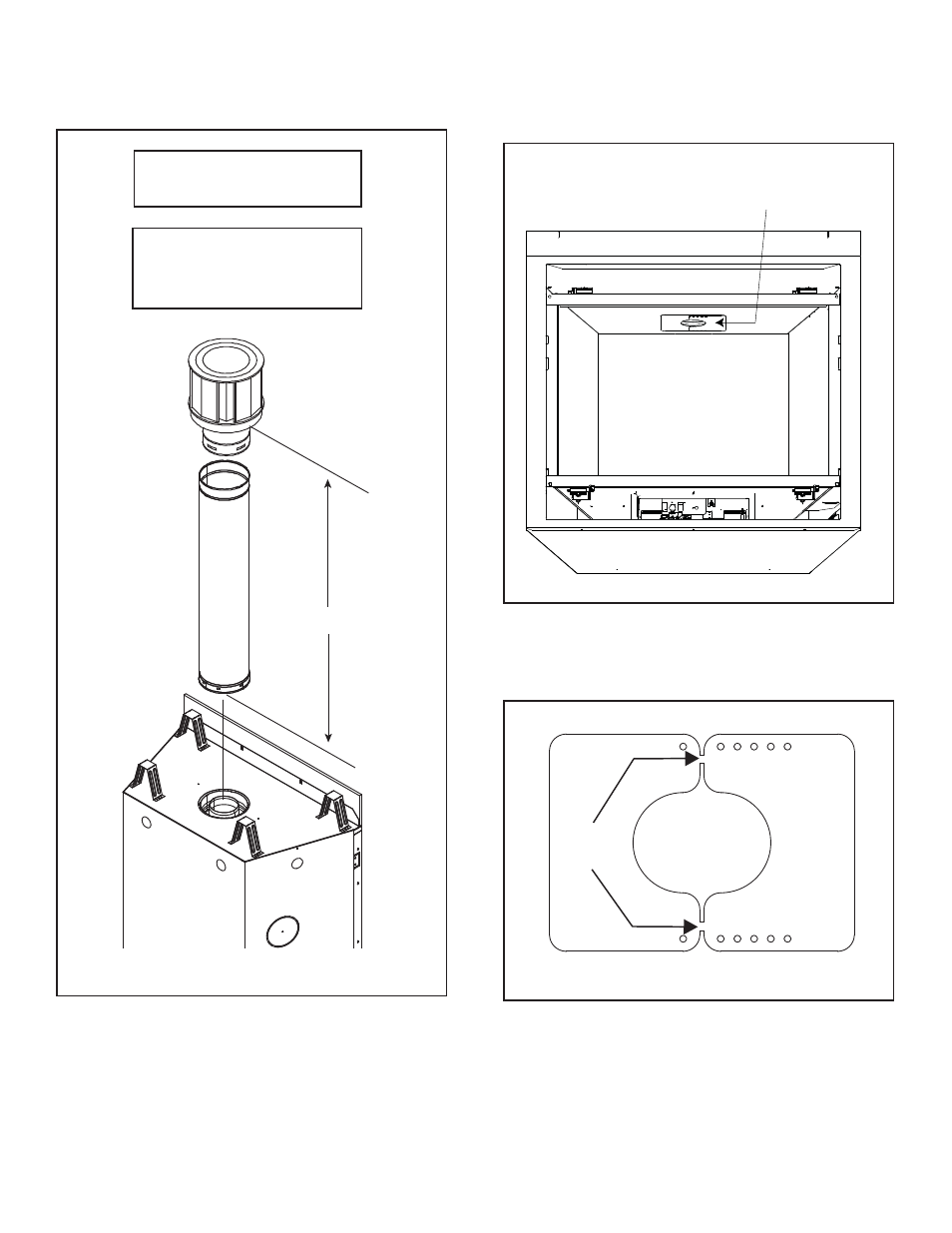

Top Vent - Vertical Termination
No Elbow
Figure 7.6
Note: If installing a vertical vent/
termination off the top of the appli-
ance, the fl ue restrictor should be
used. See Figure 7.9.
V
1
V
1
= 40 ft. Max. (12.4 m)
V
1
= 3 ft. Min. (914 mm)
Figure 7.8 Flue Restrictor
2. Break the fl ue restrictor into two pieces. Do this by
bending the part back and forth until it breaks (see
Figure 7.8).
Figure 7.7
BREAK
HERE
Flue Restrictor Instructions
1. Install fl ue restrictor as shown below.
