Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13 22

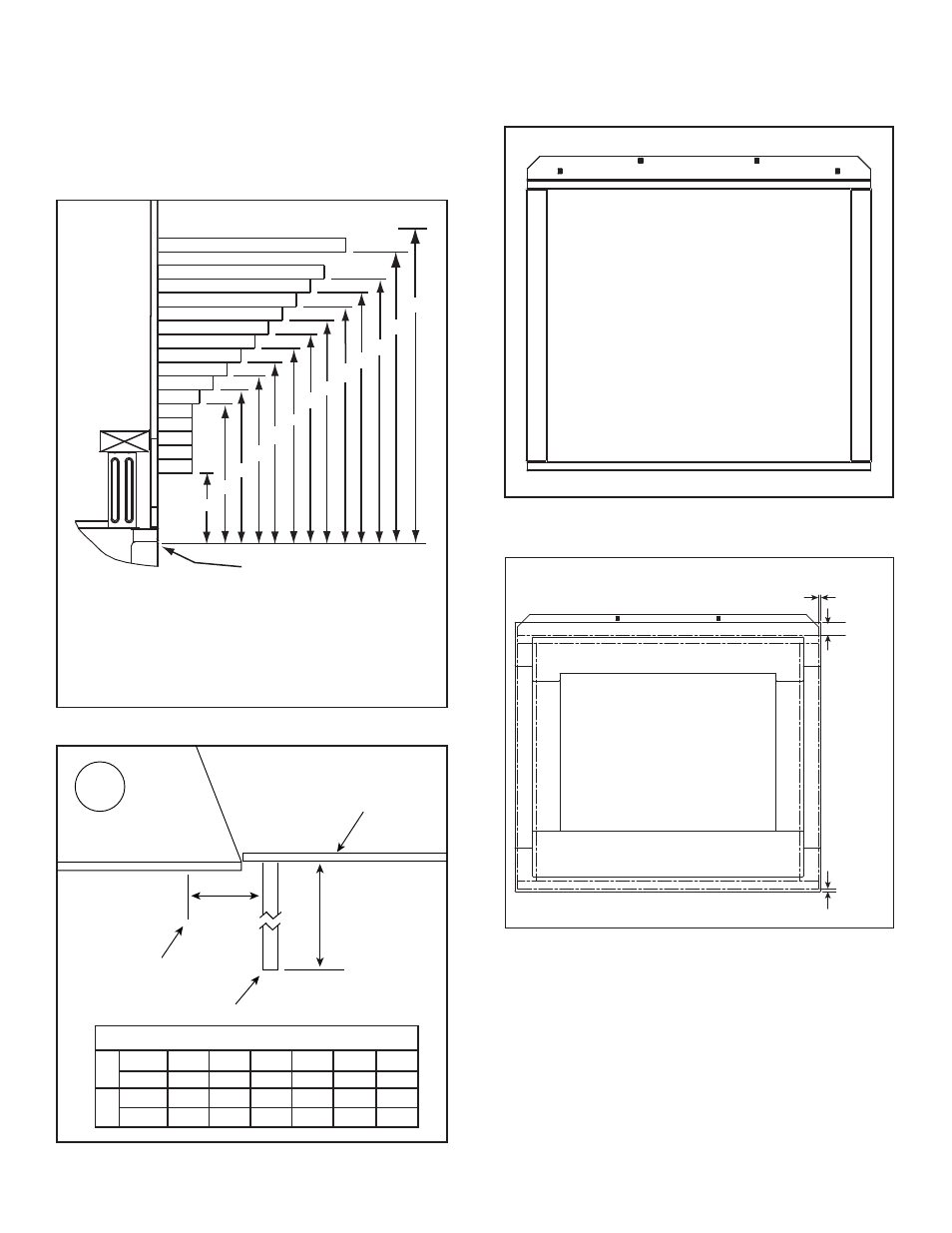

D. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances as specifi ed. Framing or fi nishing material closer than
the minimums listed must be constructed entirely of noncom-
bustible materials (i.e., steel studs, concrete board, etc).
Combustible Mantels
Combustible Mantel Legs or Wall Projections
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
5
10
11
12
2-1/2
13
14
15
16
17
18
19
32
TO CEILING
9
10
11
12
8
7
6
5
4
3
25
18
A
B
INTERIOR WALL
TOP VIEW
MANTEL LEG OR WALL PROJECTIONS
FIREPLACE OPENING
Note: All measurements in inches.
If A minimum is ____, then B maximum is_____.
A
Inches 2-7/16 3-7/16 4-7/16 5-7/16 6-7/16 7-7/16
Millimeters 62 87 113 138 164 189
B
Inches 1 2 3 4 5

Millimeters 25 51 76 102 127

Note: Measurement is taken from top of the
opening, NOT the top of the fi replace.
Figure 5.5 Appliance Surround
Figure 5.3 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles
3/8 IN.
1-3/4 IN.
3/8 IN.
Figure 5.6 Door Overlaps Surround
The CMOD door will overlap the appliance. See Figure
5.5 and 5.6.
