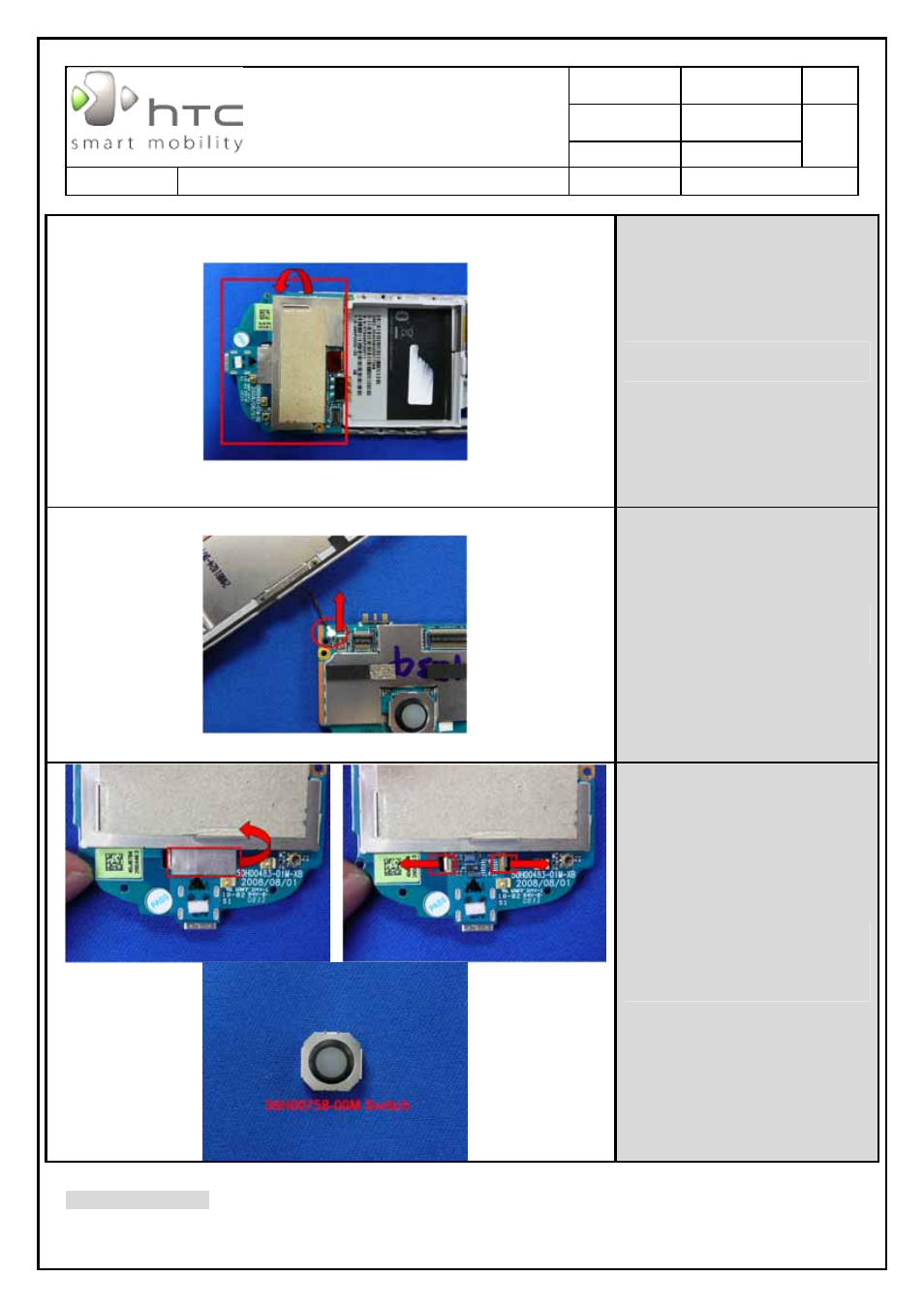

22. Remove the Main Board
from Chassis
23. Unplug the cable from the
Main Board.
24. Remove the Mylar
25. Release the hook from the
Main Board to separate the
switch
