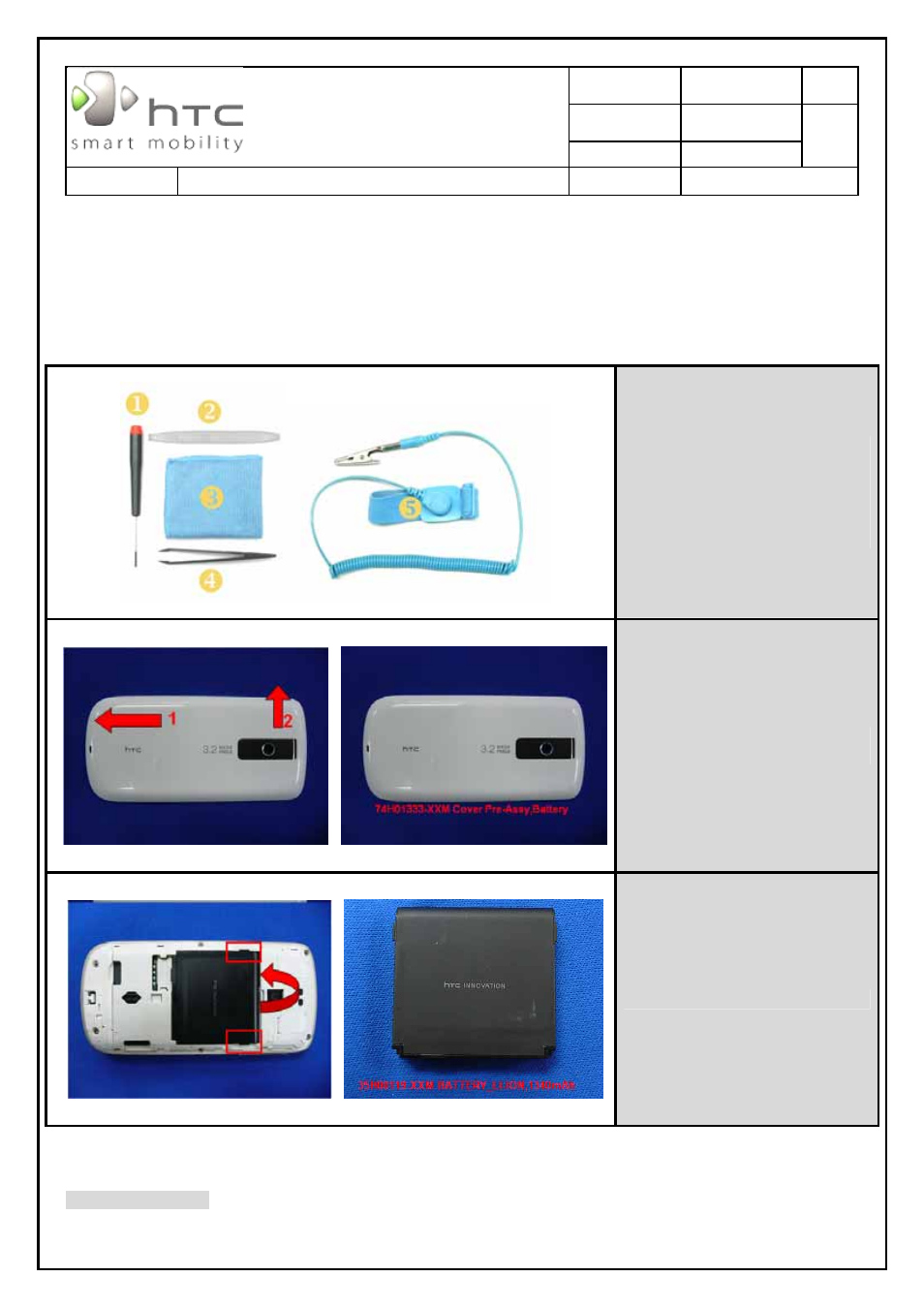

2 Device Disassembling and Assembling Procedure
2.1 Disassembling procedure
1. P HILLIPS SCREW - DRIVER 00 X 50
2. F LAT PLASTIC STICK
(P/N:RTT-00006)
3. C LEANING CLOTH
4. P LASTIC TWEEZERS
5. ESD WRIST STRAP .
1. Remove the battery cover
2. Remove the battery
