Configuration
HP Uninterruptible Power System T2200 XR Models User Guide
3-3
Table 3-2: Available Voltage Settings
UPS Model
Available Settings
Utility Voltage (VAC)
Parameter (LED)
T2200 XR NA
110
On Battery (
)
120
(default)
Bad Battery/Low Battery (
)
127
Site Wiring Fault Indicator (
)
T2200 XR JPN
100
General Alarm (
)
T2200 XR H NA
208
General Alarm (
)
T2200 XR H INT’L
220
On Battery (
)
230
(default)
Bad Battery/Low Battery (
)
240
Site Wiring Fault Indicator (
)
Changing Configuration Parameters
Refer to Figure 3-3 when changing configuration parameters.
1
3
2
4
5

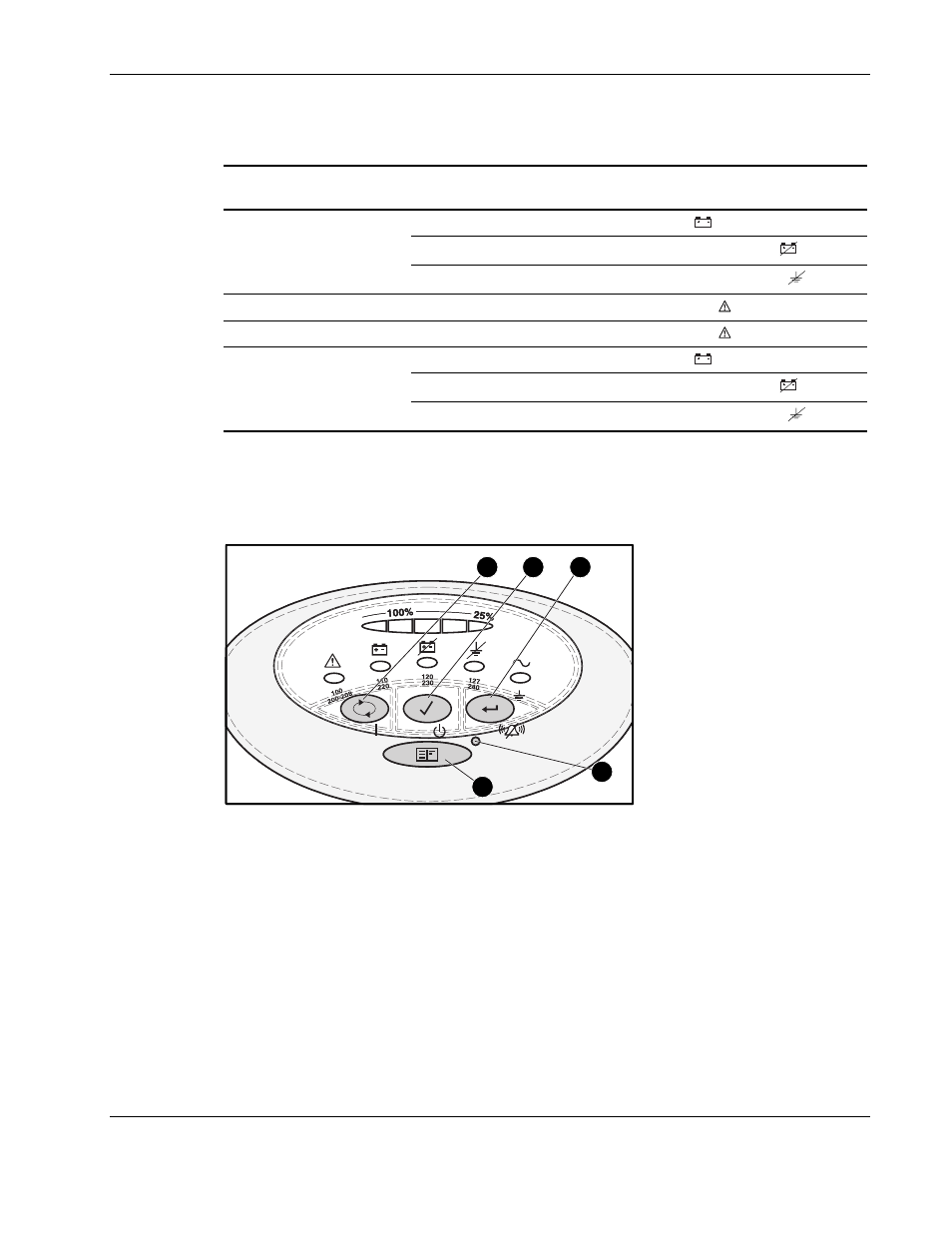

Figure 3-3: Changing configuration parameters
To change configuration parameters:
1. Place the UPS in Configure mode by pressing the Configure button (5) until the
Configure Mode On LED (4) illuminates solid green.
When you release the Configure button, the configurable LEDs flash briefly, then the
LED associated with the current configuration illuminates.
