Overview
1-4 HP Uninterruptible Power System T2200 XR Models User Guide
Rear Panels
The rear panel configurations of the UPS are shown in Figures 1-2, 1-3, 1-4, and 1-5.
1
3
2
4
5
6
8
7

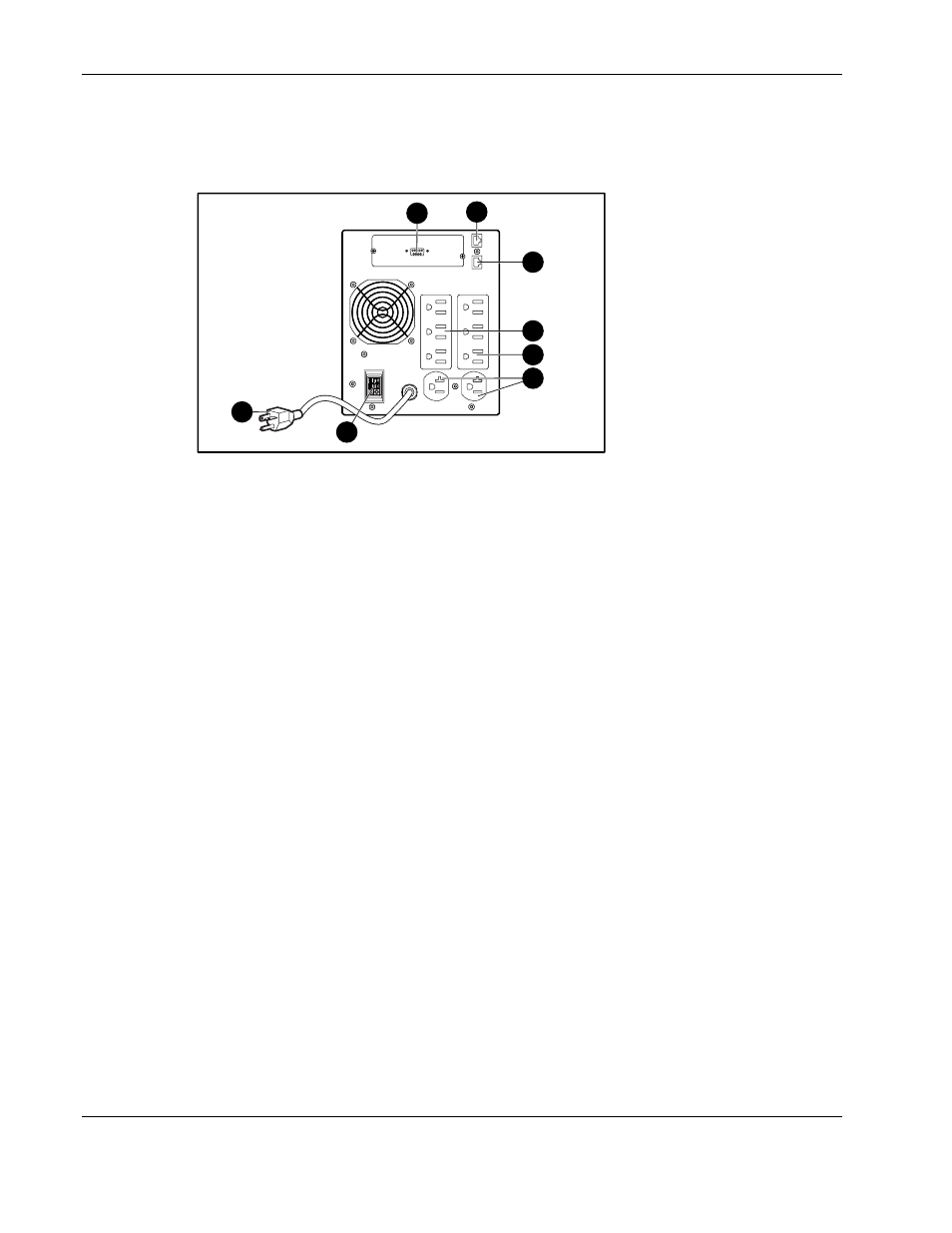

Figure 1-2: Rear panel of T2200 XR NA
1 Communications port/option slot
2 Network Transient Protector IN jack
3 Network Transient Protector OUT jack
4 Load segment 2 (three NEMA 5-15 receptacles)
5 Load segment 1 (three NEMA 5-15 receptacles)
6 Load segment 3 (two NEMA 5-20 receptacles)
7 ERM connector
8 Power cord with NEMA 5-20 plug
