Overview
HP Uninterruptible Power System T2200 XR Models User Guide 1-5
1
3
2
5
6
4
9 8
10
7

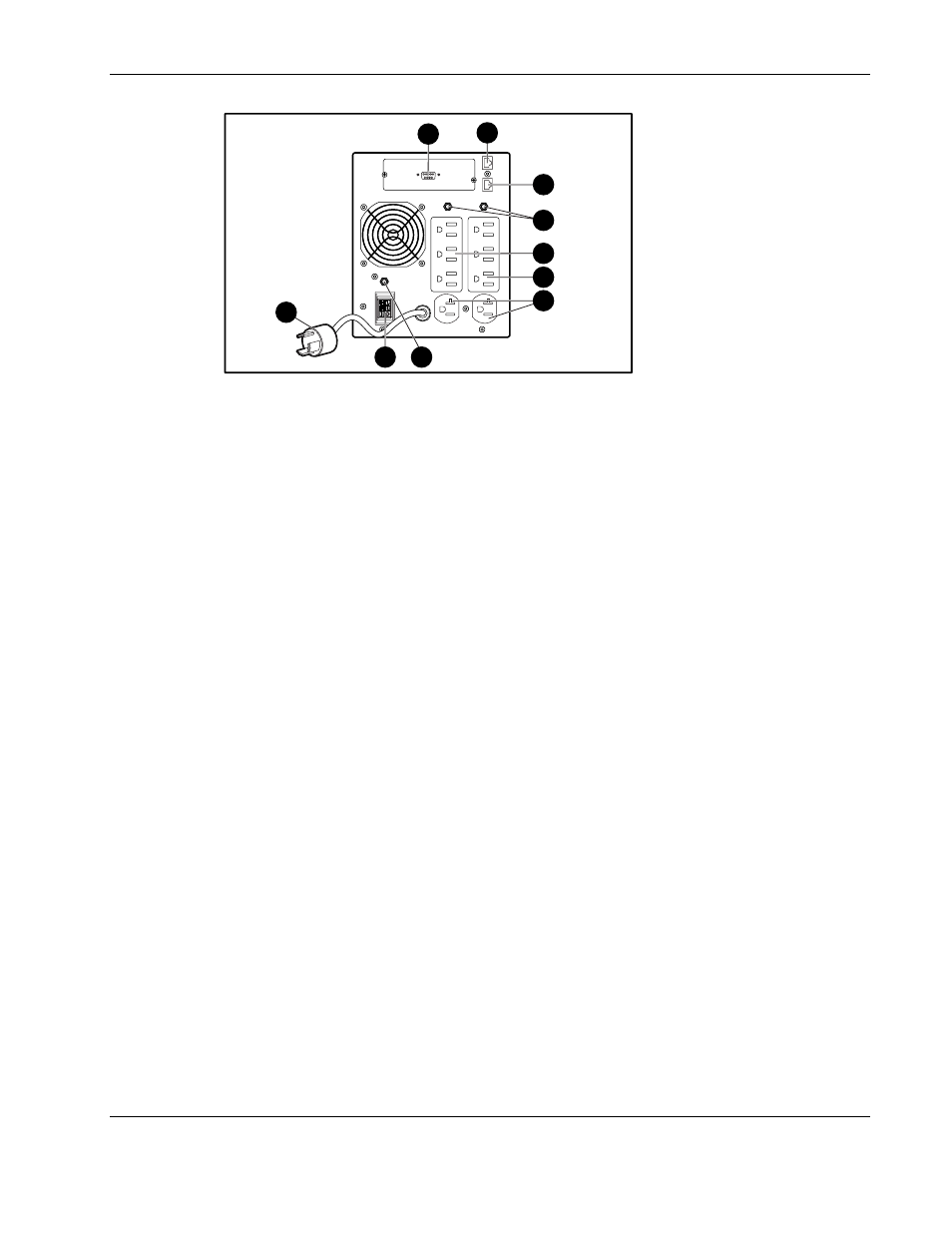

Figure 1-3: Rear panel of T2200 XR JPN
1 Communications port/option slot
2 Network Transient Protector IN jack
3 Network Transient Protector OUT jack
4 Circuit protectors
5 Load segment 2 (three NEMA 5-15 receptacles)
6 Load segment 1 (three NEMA 5-15 receptacles)
7 Load segment 3 (two NEMA 5-20 receptacles)
8 Circuit protector
9 ERM connector
10 Power cord with NEMA L5-30 plug
