14 - 2 Dolphin® 9500 Series User’s Guide
Dock LED
Each terminal well displays a Dock LED on the front that lights solid green when a terminal is properly seated, which
means that the terminal and the base are connected.
Charge LEDs
Each terminal well displays a Charge LED on the front that lights green to indicate charging. For details, see
Charging Terminals in the ChargeBase on page 14-4.

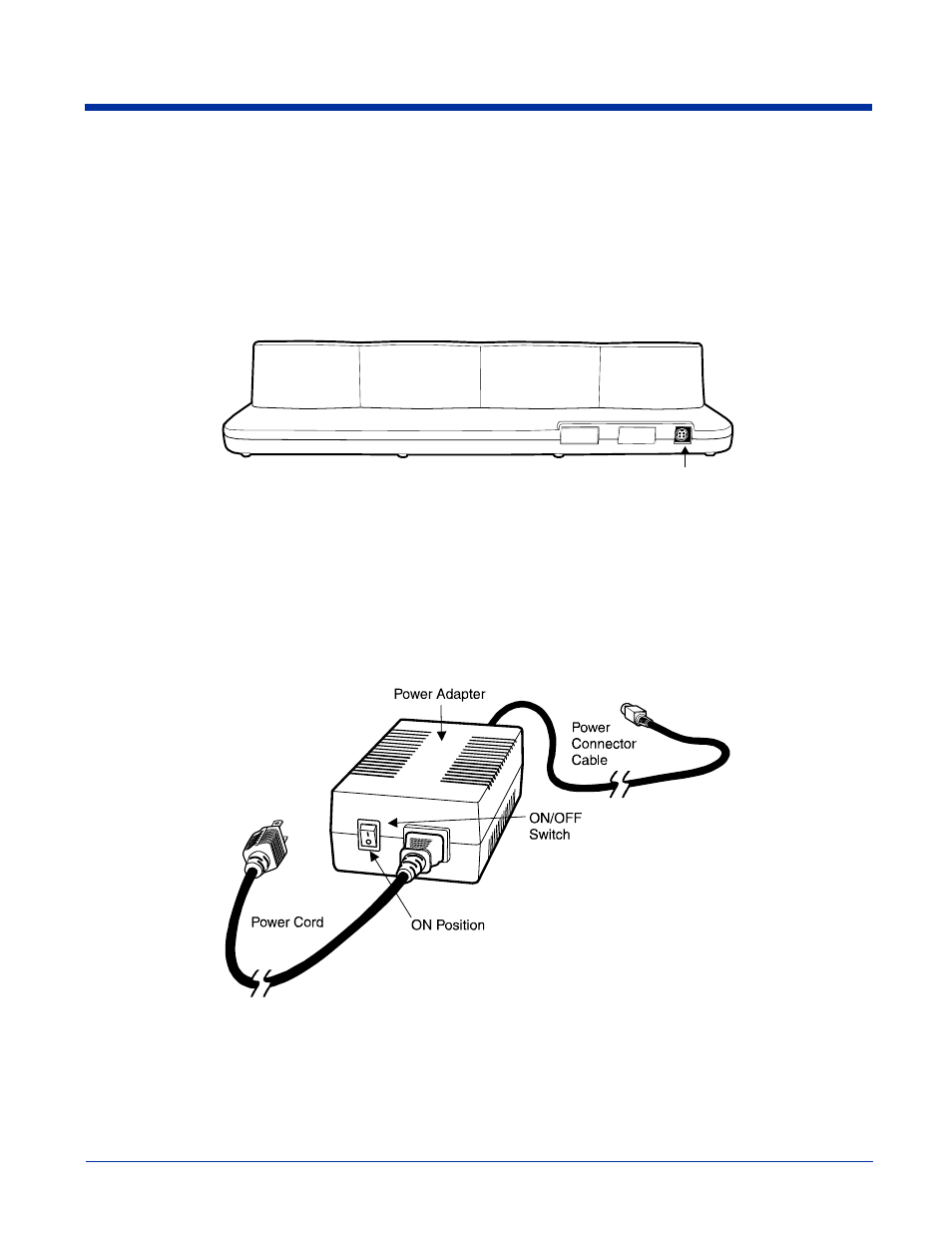

Back Panel
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from the power adapter into
this connector. There is no ON/OFF switch on the back panel of the ChargeBase. The power switch is on the power
adapter.
Power Supply
The ChargeBase includes a power supply that contains a power adapter to ensure the proper voltage. The power adapter is
plugged into standard AC/DC outlets.
Power Supply Connector
