1. Unplug chime from power source.
2. Open the cases and locate the jumpers on both the chime extender and
chime (see Figure 8).
3. The chime extender and chime both have eight different jumper locations.
Jumper positions 1 through 7 are used for setting the code.
4. To change the code, either:
• Add a jumper to the same location on both the chime extender and the
chime or...
• Remove a jumper from the same location on both the chime extender and
the chime or...
• Move a jumper on the chime extender from one location to another. Move
the corresponding jumper on the chime to match the new location in the
chime extender.
Example: Move jumper at location “5” to location “4” on both the chime
extender and the chime.
Note: Jumpers in positions 1 through 7 must be exactly the same for both
the chime extender and chime for this system to function.
Note: Unit will come factory set with jumpers in locations 5, 6, and 7 on the
chime extender and on the chime.
The range of the wireless chime can vary with location, temperature, and
battery condition.
Inside Chime
Extender
Back of Chime Note: Some models might require
the use of tweezers to remove
and replace the jumpers.

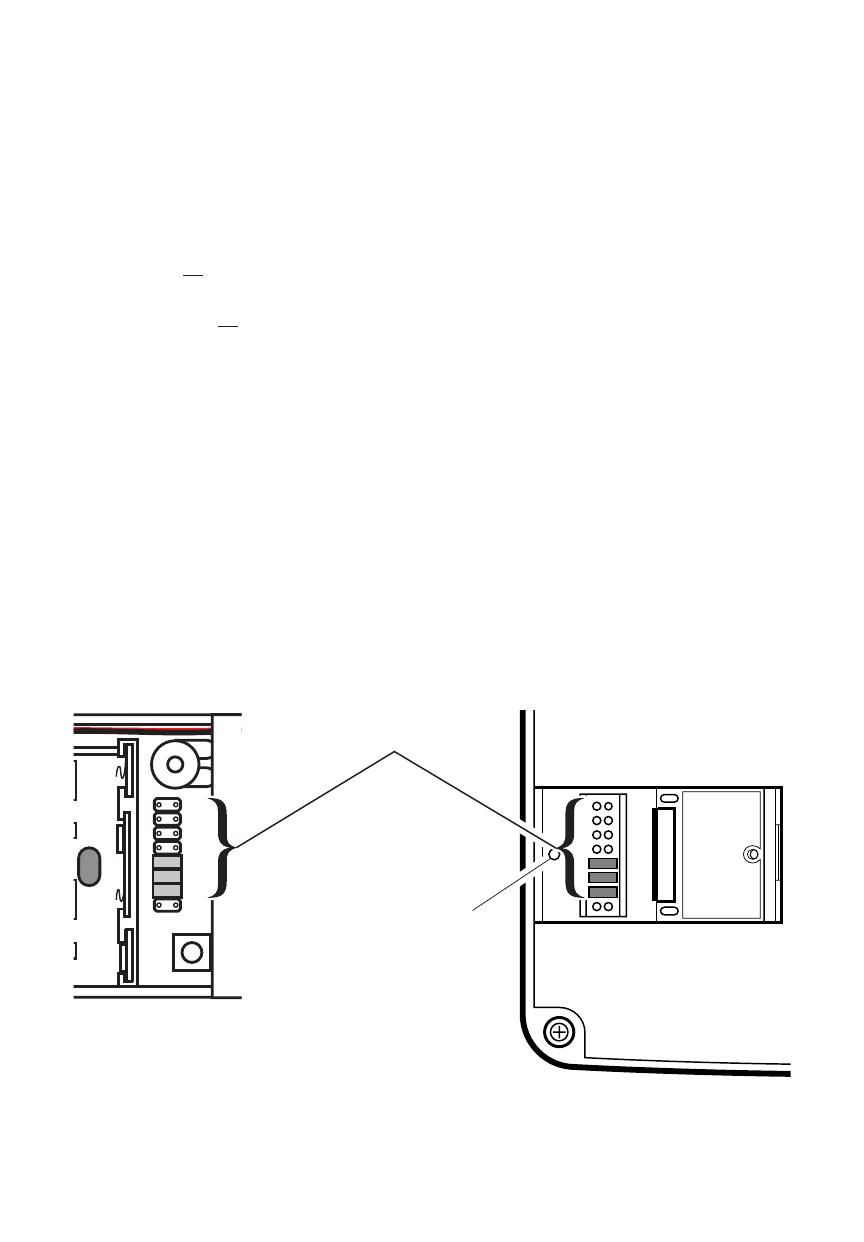

Figure 8
12345678
* Code Settings
1-7 Must Match Both
Sensor and Chime
Remove
screw to open
access door
