Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 33 screws, in 3 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.

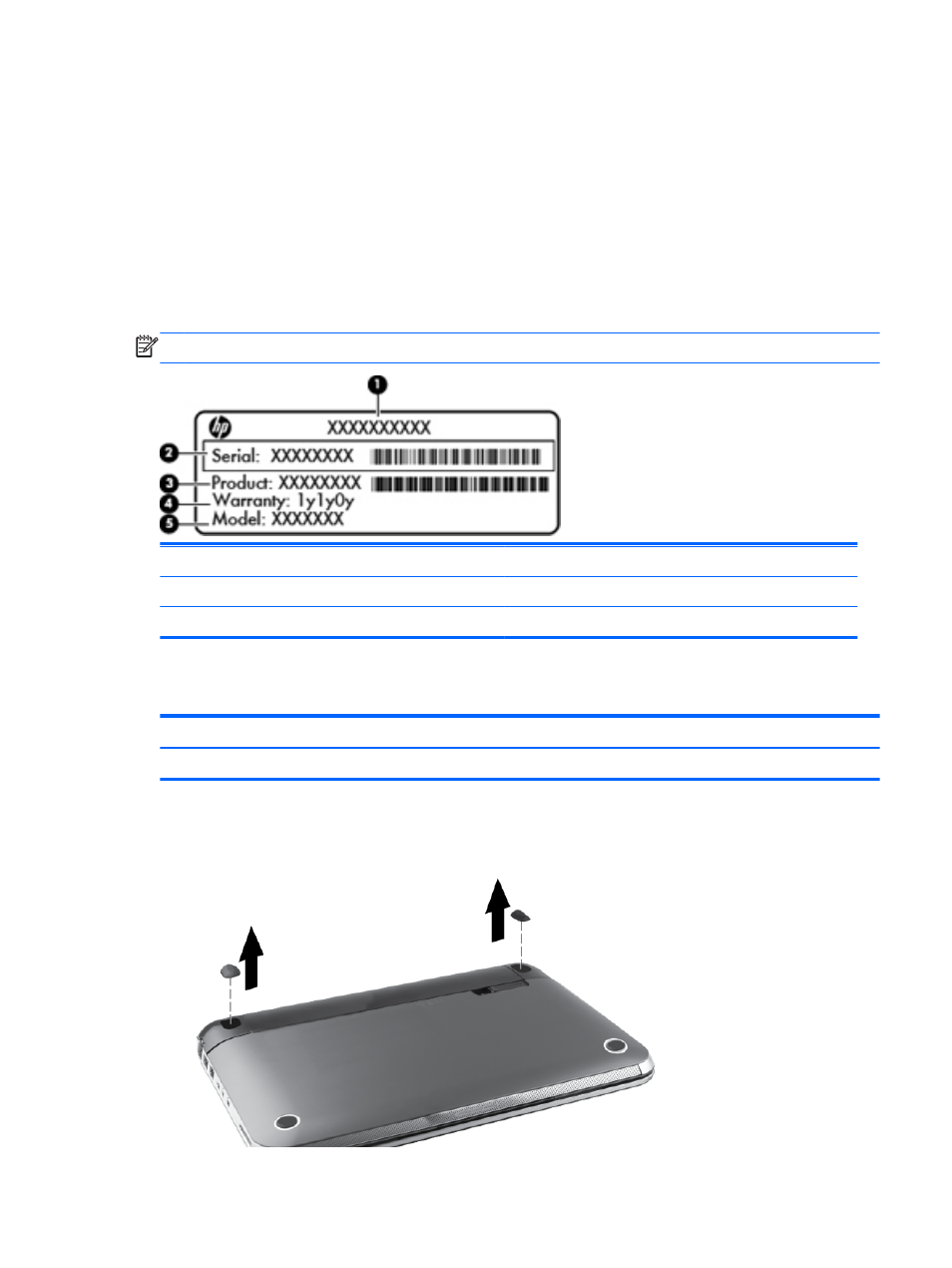

Service tag

When ordering parts or requesting information, provide the computer serial number and model
number provided on the service tag, located inside the battery bay.

NOTE:

Serial number label location, format, and color vary on select models.

(1) Product name

(4) Warranty period

(2) Serial number

(5) Model description

(3) Product number

Computer feet

Description

Spare part number

Rubber Kit

650734-001

The computer feet are adhesive-backed rubber pads. Two rubber feet are attached to the base
enclosure in the locations shown in the following illustration.

Component replacement procedures

43
