Heath Zenith SH-5318 - Manual

Models SH-5318
D
ual
B
rite
®
Motion Sensor
Light Control with
2-Level Lighting
© 2007 HeathCo LLC 598-1154-01
2 Shells*
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• D
ual
B
rite
® Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
* Model SL-5318 only

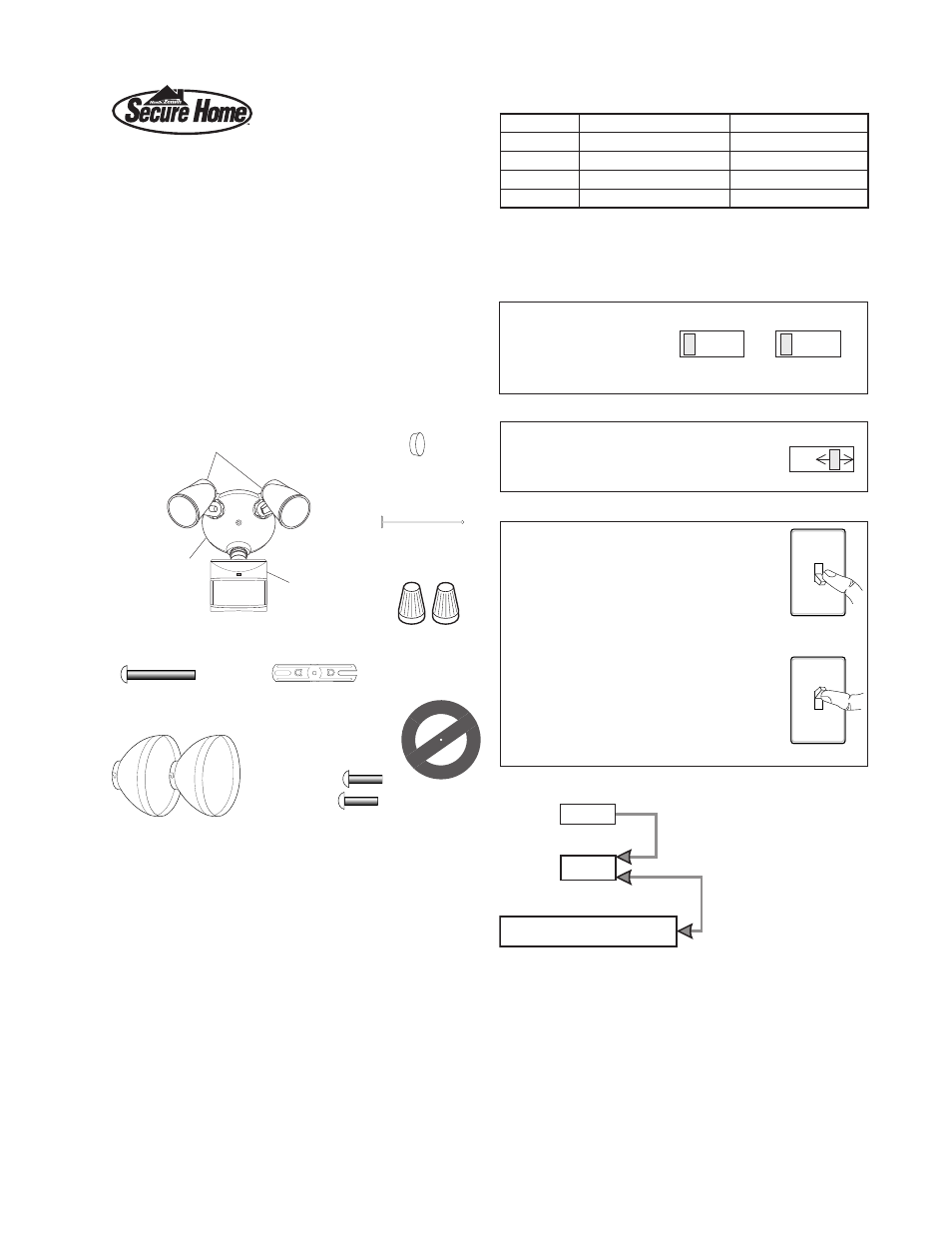

This package includes:
Light Control
Sensor
Cover Plate
Lamp Holders
Plastic Hanger
Rubber Plug
Gasket
6 Screws
(3 sizes included)
Mounting Strap
Mounting Bolt
2 Wire
Connectors
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
TEST
TEST 1 5 20
ON-TIME
Off 3 6 Dusk to
Dawn
D
ual
B
rite
® Put ON-TIME switch
on the sensor bottom
to TEST and the D
ual
-
B
rite ® switch OFF.
OPERATION
* resets to Auto Mode at dawn.
ON-TIME
TEST 1 5 20
... back on.
1 Second OFF
then...
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.
Mode: On-Time Works: Day Night
Test 5 Seconds x x
Auto 1, 5, or 20 Min x
Manual To Dawn* x
Accent 3, 6 Hr, to Dawn x
AUTO
MANUAL MODE
D
ual
B
rite
® Timer
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). Selecting OFF disables
this feature. The motion sensing features will continue
to work as described in this manual. If motion is sensed,
the light turns on full bright for the ON-TIME (1, 5, or
20 minutes) then returns to dim mode.
Move ON-TIME Switch to
1, 5, or 20 minutes
Mode Switching Summary
Flip light switch off
for one second then
back on*
MANUAL MODE
AUTO
TEST
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
