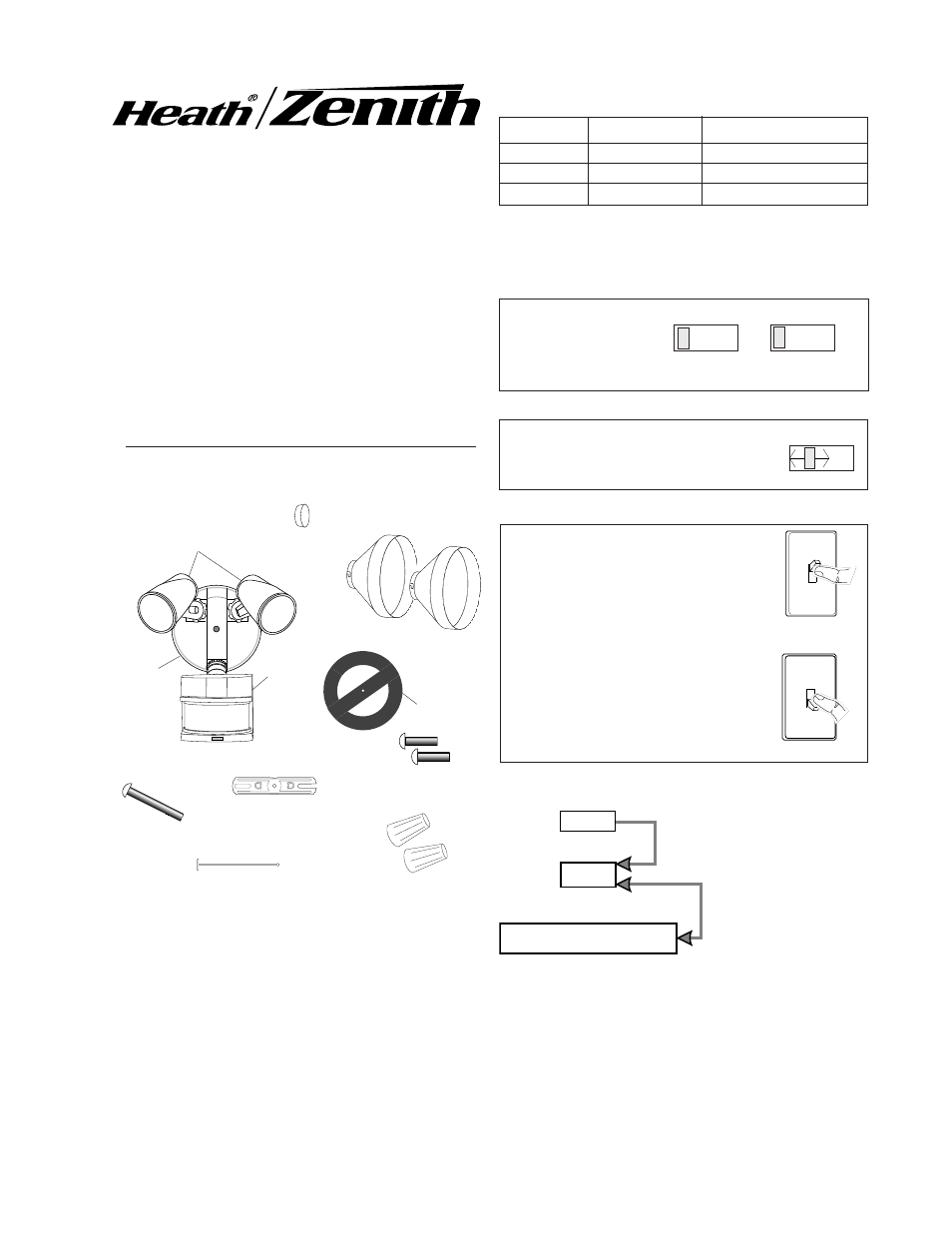

Heath Zenith DUAL BRITE SL-5318 - Manual

Model SL-5318
Dual Brite ™ Motion
Sensor Light
Control for
Canadian Tire
© 2003 DESA Specialty Products™ 598-1001-02
Light Control
Sensor Cover
Plate
Lamp Holders
2 Wire Connectors
6 Screws
(3 sizes included)
Gasket
2 Shells
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Dual Brite™ Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
Requirements
• The Light Control requires 120-volts AC.
• If you want to use the Manual Mode, the control must
be wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
Mounting Bolt
Mounting Strap
Rubber Plug
Plastic Hanger
This package includes:
TEST
TEST 1 5 20
ON-TIME
Off 3 6 Dusk to
Dawn
DUAL BRITE™
Put ON-TIME switch on
the sensor bottom to
TEST and the Dual
Brite™ switch OFF.
Dual Brite™ TIMER
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed, the light
turns on full bright for the ON-TIME (1,5, or 20 minutes)
then returns to dim mode.
Mode: On-Time: Works: Day Night
Test 5 Sec x x
Auto 1, 5, 20 min. x
Manual Until Dawn* x
OPERATION
* resets to Auto Mode at dawn.
MANUAL MODE
ON-TIME
TEST 1 5 20
... back on.
AUTO
1 Second OFF
then...
Move ON-TIME Switch to
1, 5, or 20 minutes
Mode Switching Summary
Flip light switch off
for one second then
back on*
MANUAL MODE
AUTO
TEST
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the ON-
TIME switch in the 1, 5, or 10 position.
Put the ON-TIME switch in the 1, 5, or
20 minute position.
